How to Diagnose and Upgrade ECUs on Reimported Vehicles

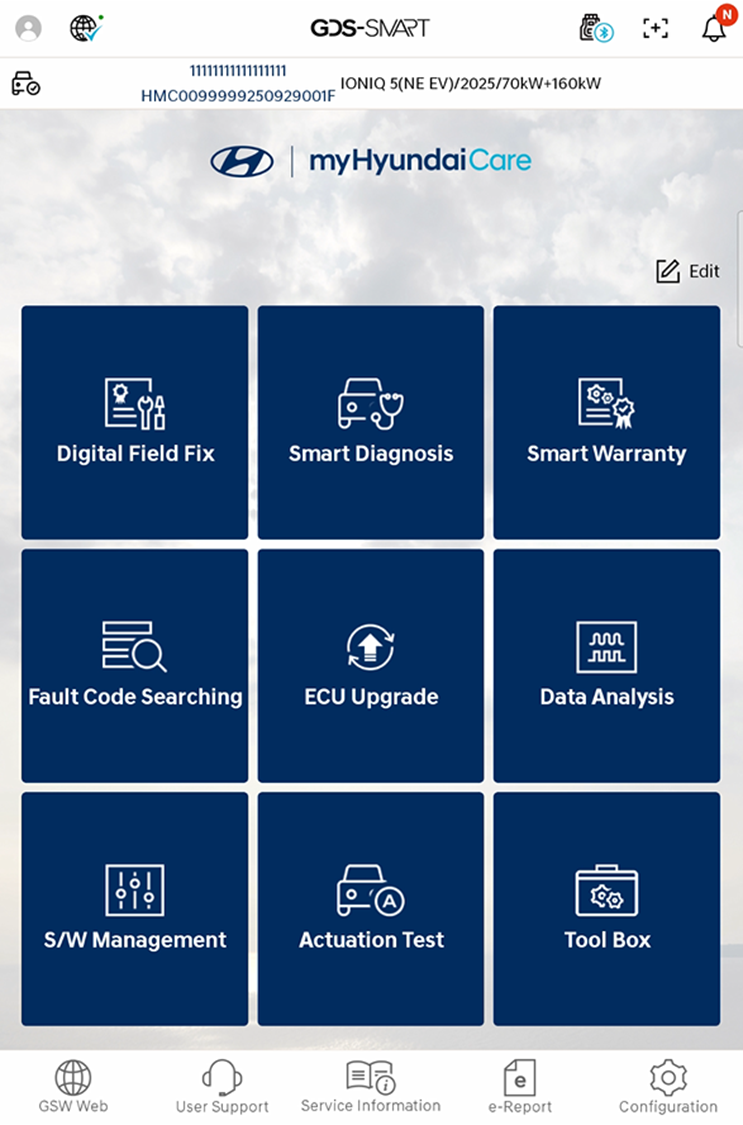

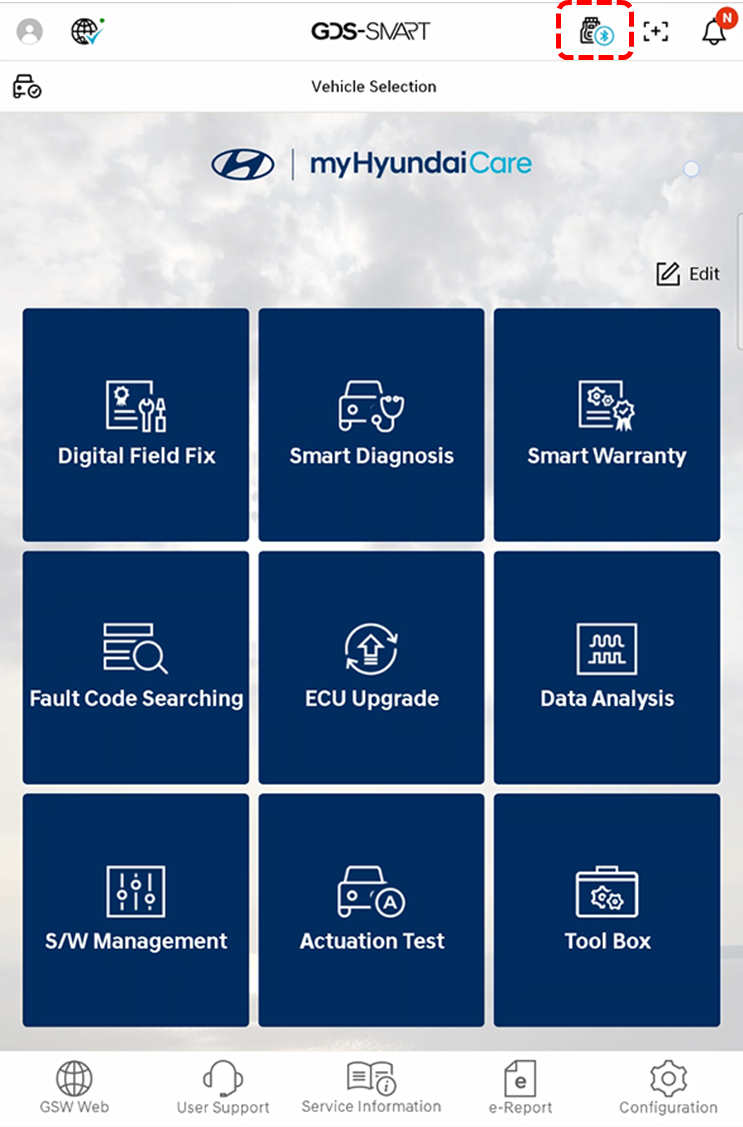

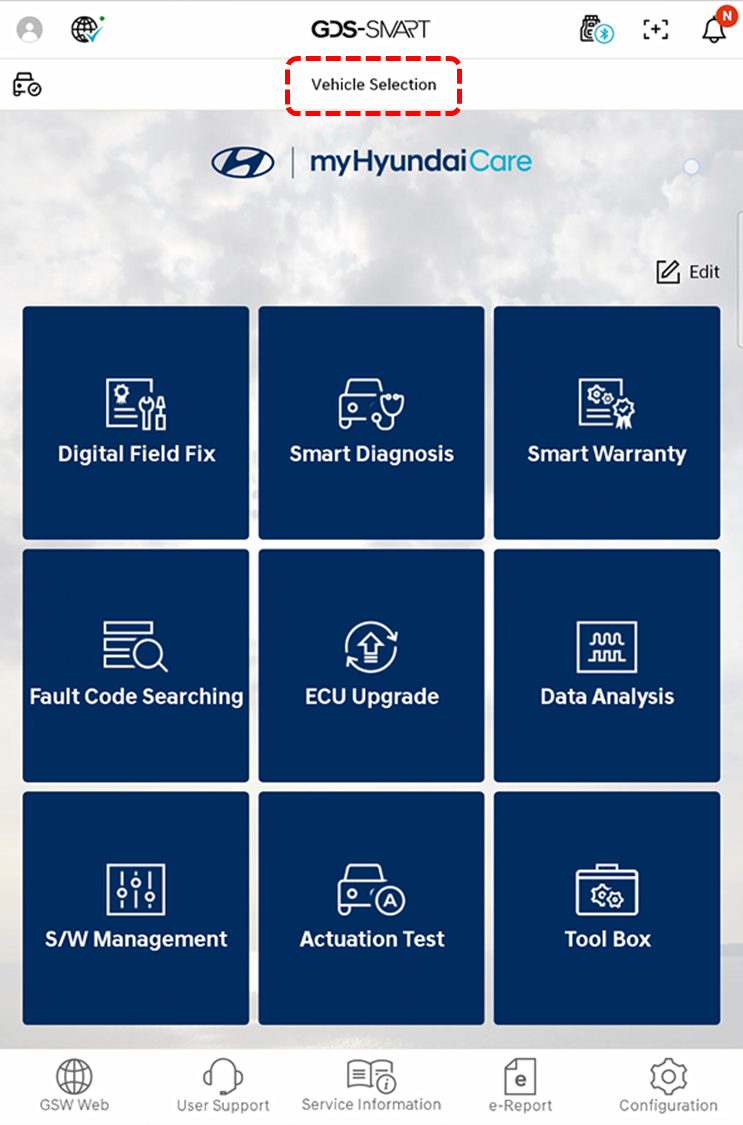

1. Launch KDS 2.0, check the VCI connection status (Wi-Fi Direct, Bluetooth, or wired), and then select [Vehicle Selection].

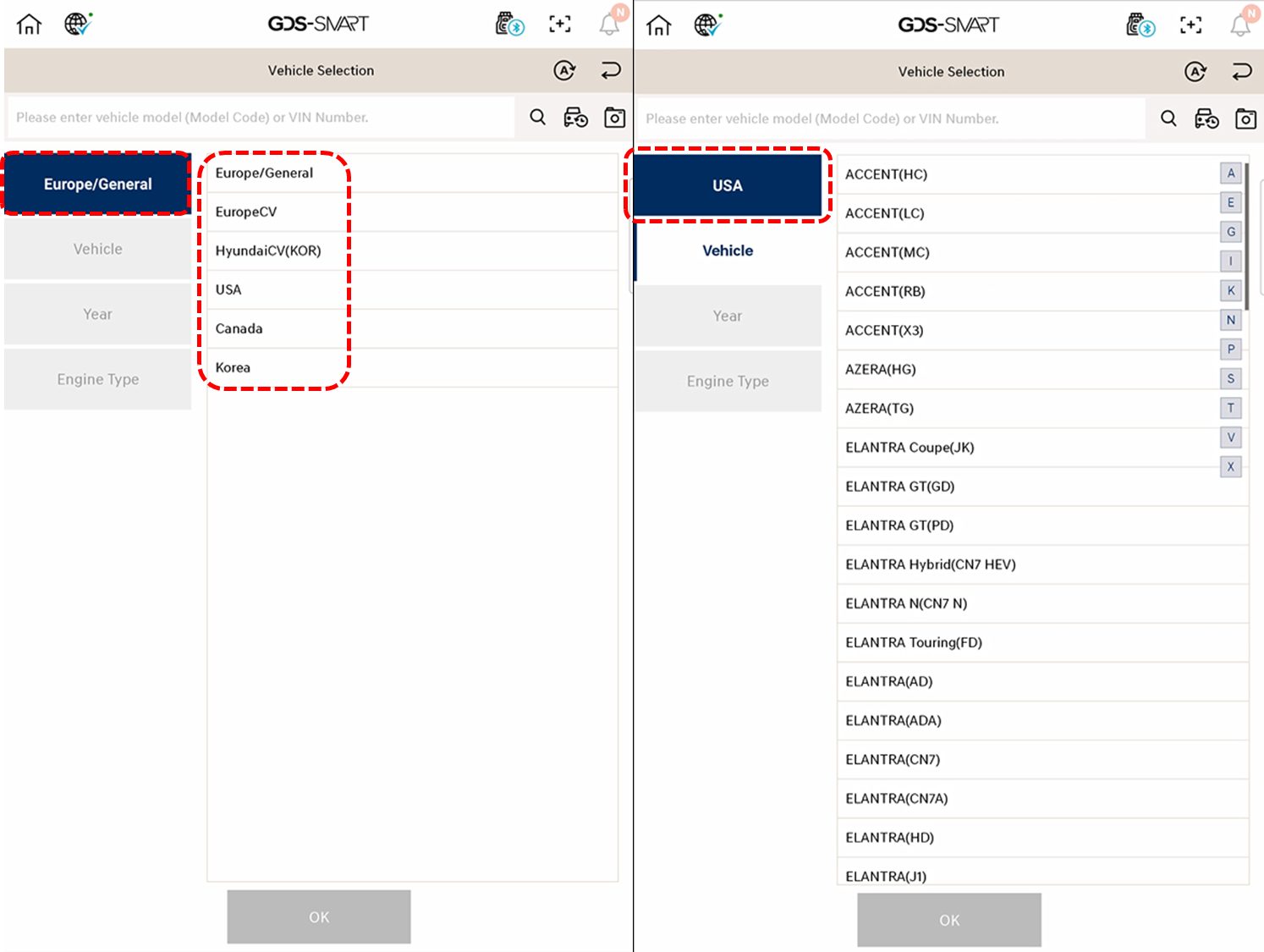

2. Select the Region menu in the upper-left corner, and then select the destination country for which the vehicle was manufactured and sold.

Examples:
   A) If a vehicle was manufactured in Korea and sold to a customer in the USA,
      select USA for diagnosis and upgrade.
   B) If a vehicle was manufactured in the USA and sold to a customer in the USA,
      select USA for diagnosis and upgrade.

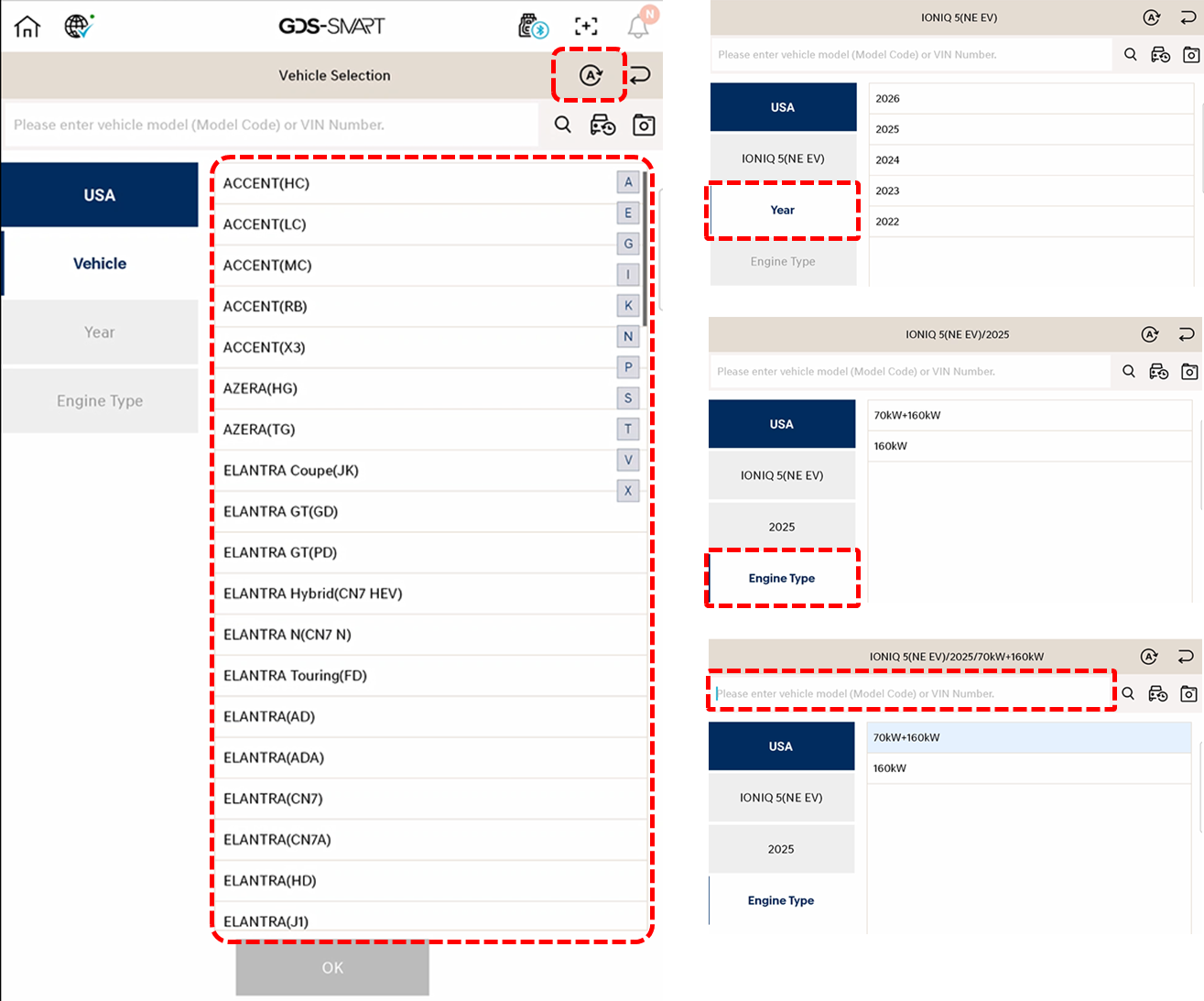

3. Select the Vehicle Model, model year, and Engine Type, and then manually enter the VIN. (If AUTO VIN is available, you can use it to automatically enter the Vehicle Model, model year, and Engine Type.)

4. A vehicle diagnostic number (VDN) will be generated. Confirm that the vehicle information (Vehicle Model, model year, and Engine Type) is correct, and then proceed to the ECU Upgrade menu.

5. Select Manual Mode to perform the ECU upgrade.

If you cannot find the required ECU upgrade, contact us through gitauto.zendesk.com or submit an inquiry using the Inquiry button in the upper-right corner of the screen.
When submitting an inquiry, ensure that you provide the Vehicle Model, model year, Engine Type, and VIN.
