This article explains how to configure an Ethernet connection by checking the hardware connections, selecting Ethernet in the tablet PC settings, configuring a static IP address and saving the settings.
PLEASE NOTE
To perform an ECU upgrade or diagnosis that requires Ethernet, configure the diagnostic tool as follows:

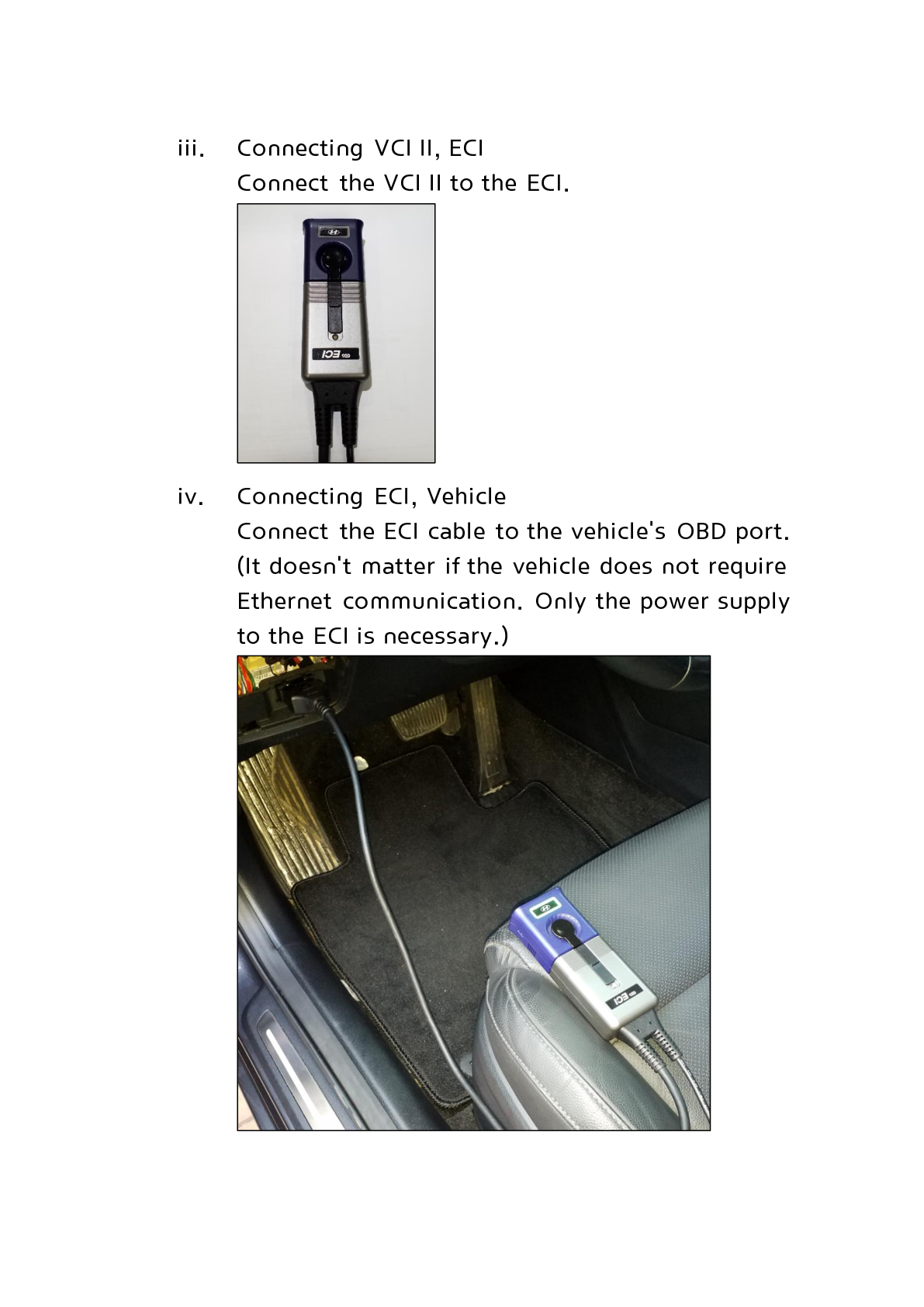

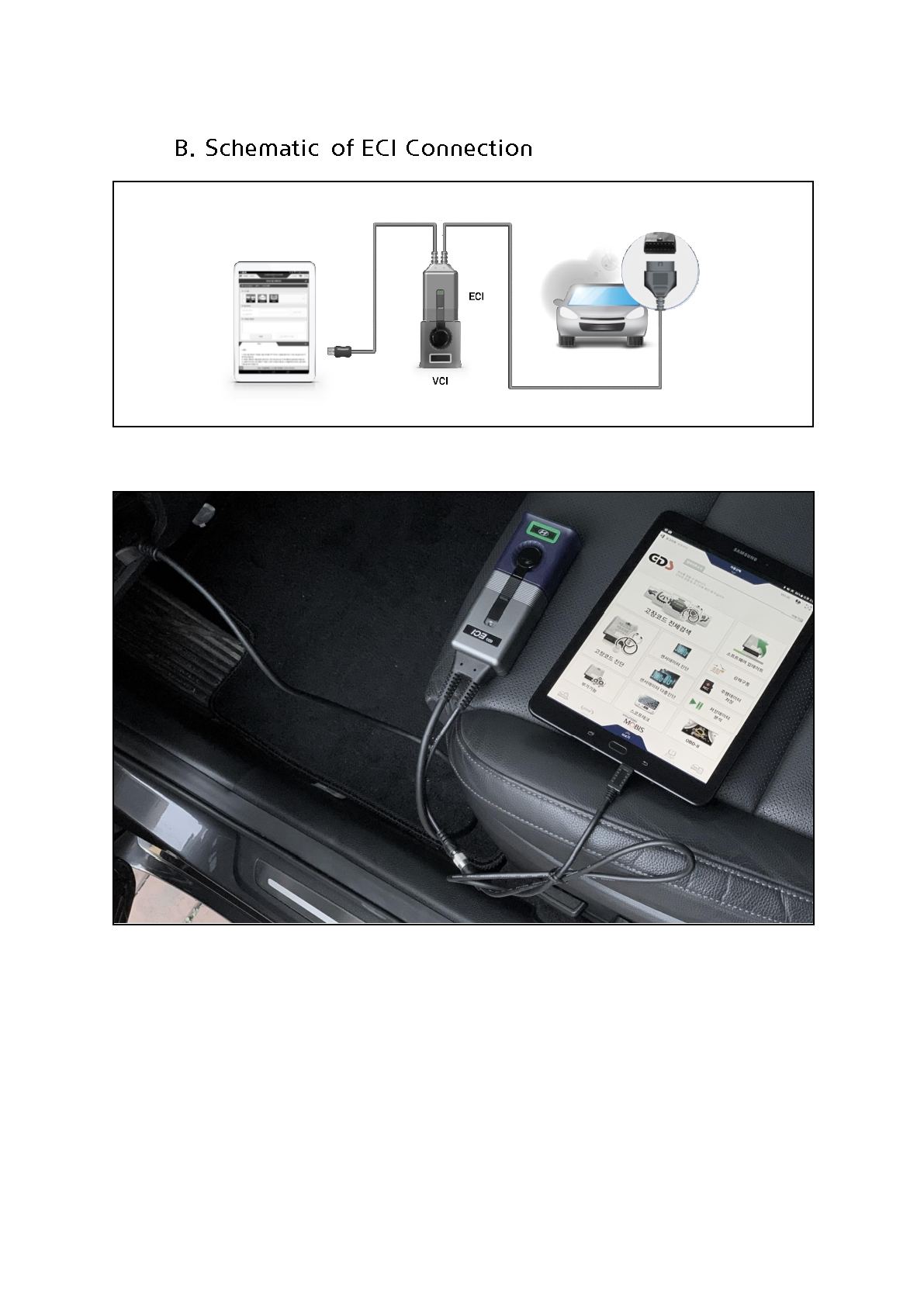

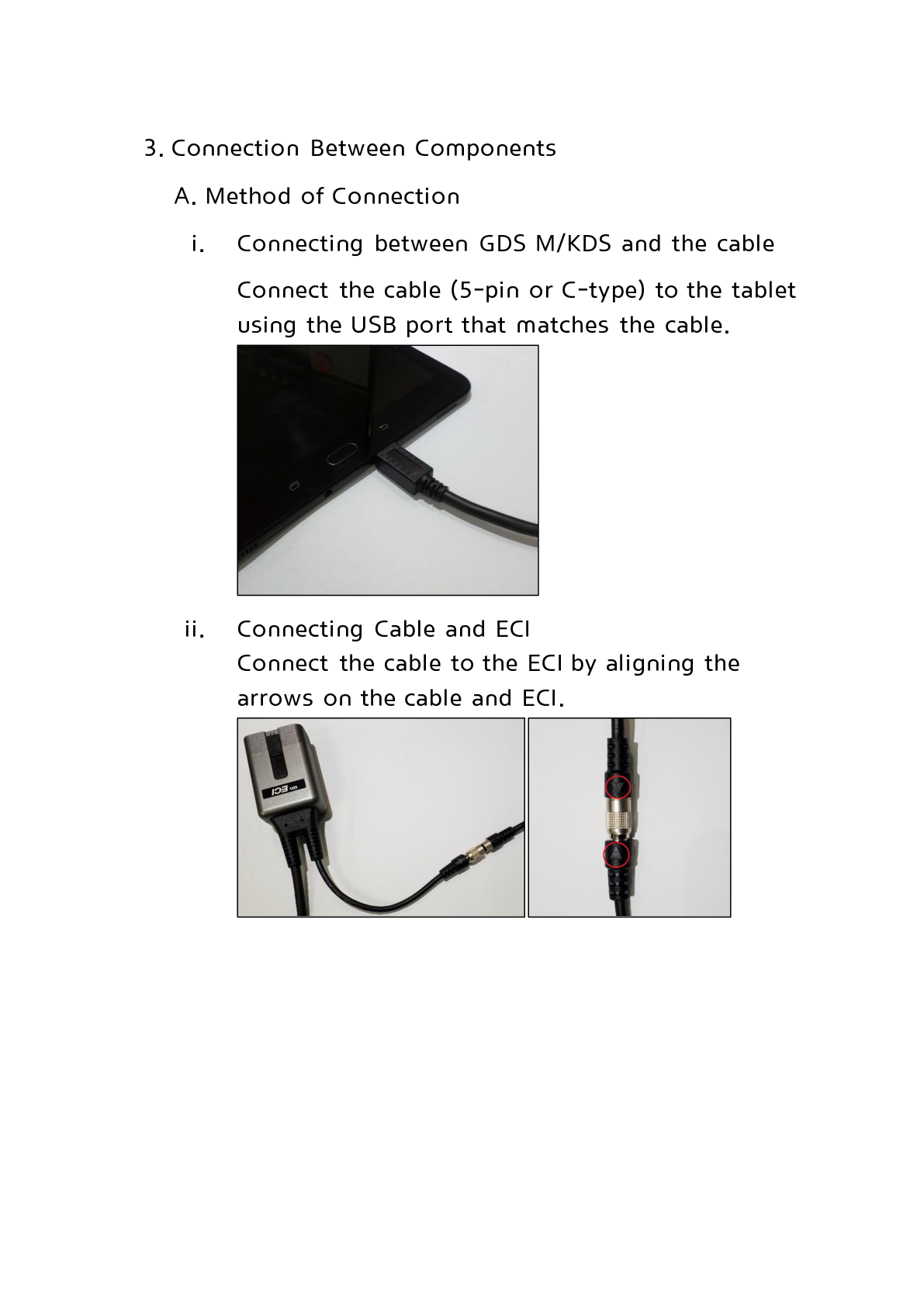

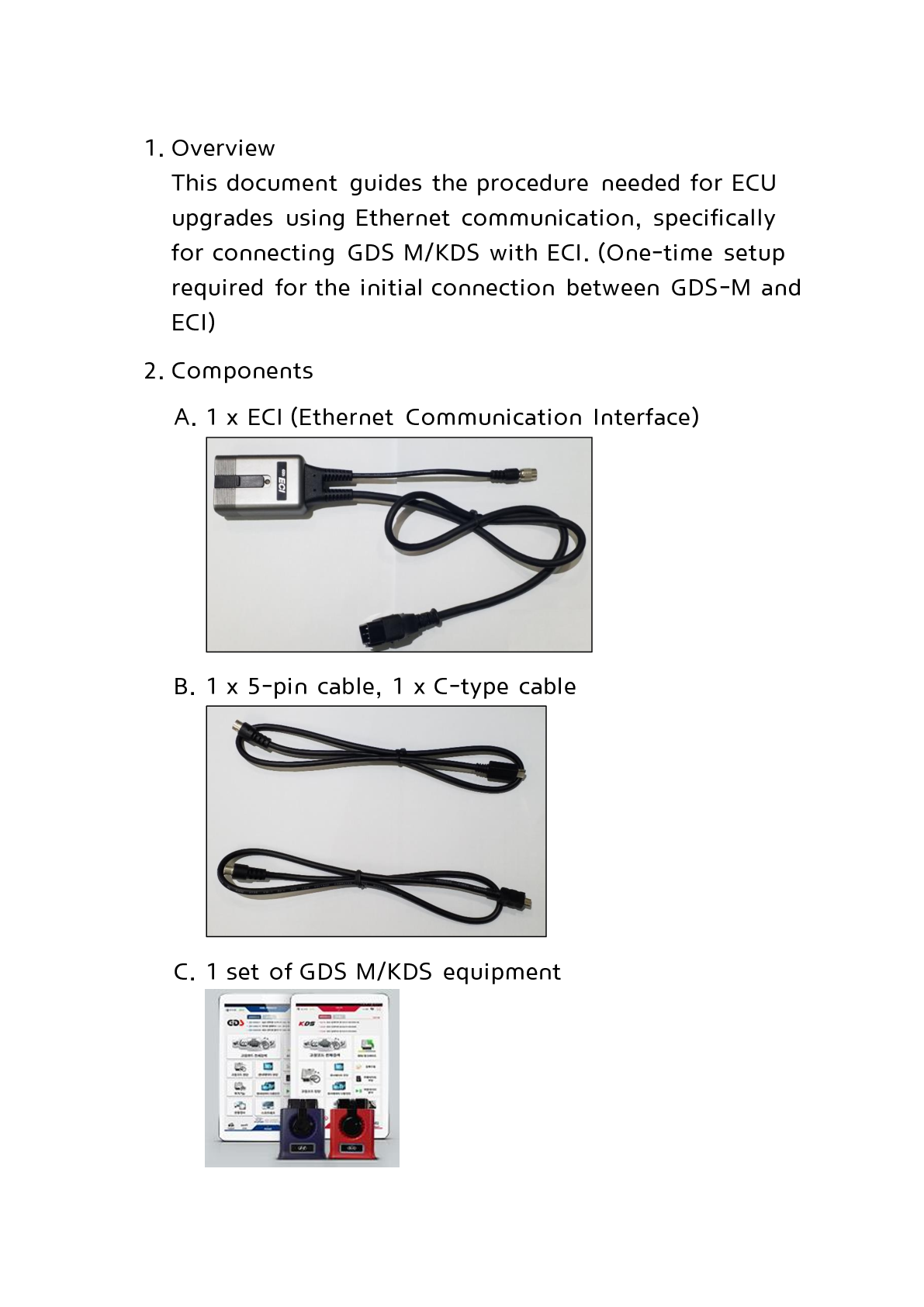

- When using VCI2, connect an ECI (Ethernet Communication Module) and its cable in the following sequence: VCI2–ECI–tablet PC. Appendix: How to connect the ECI, VCI2 and tablet PC
- When using VCI3, connect the VCI3 to the tablet PC using the designated cable (P/N: G1XDDCA020).
1. Configure the Ethernet connection
✅ If the Ethernet option is disabled, check the VCI and cable connections.

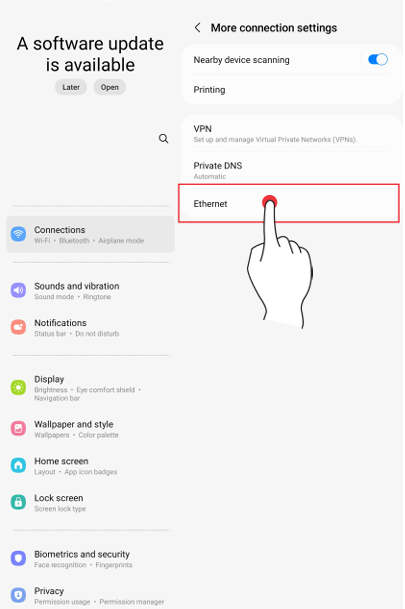

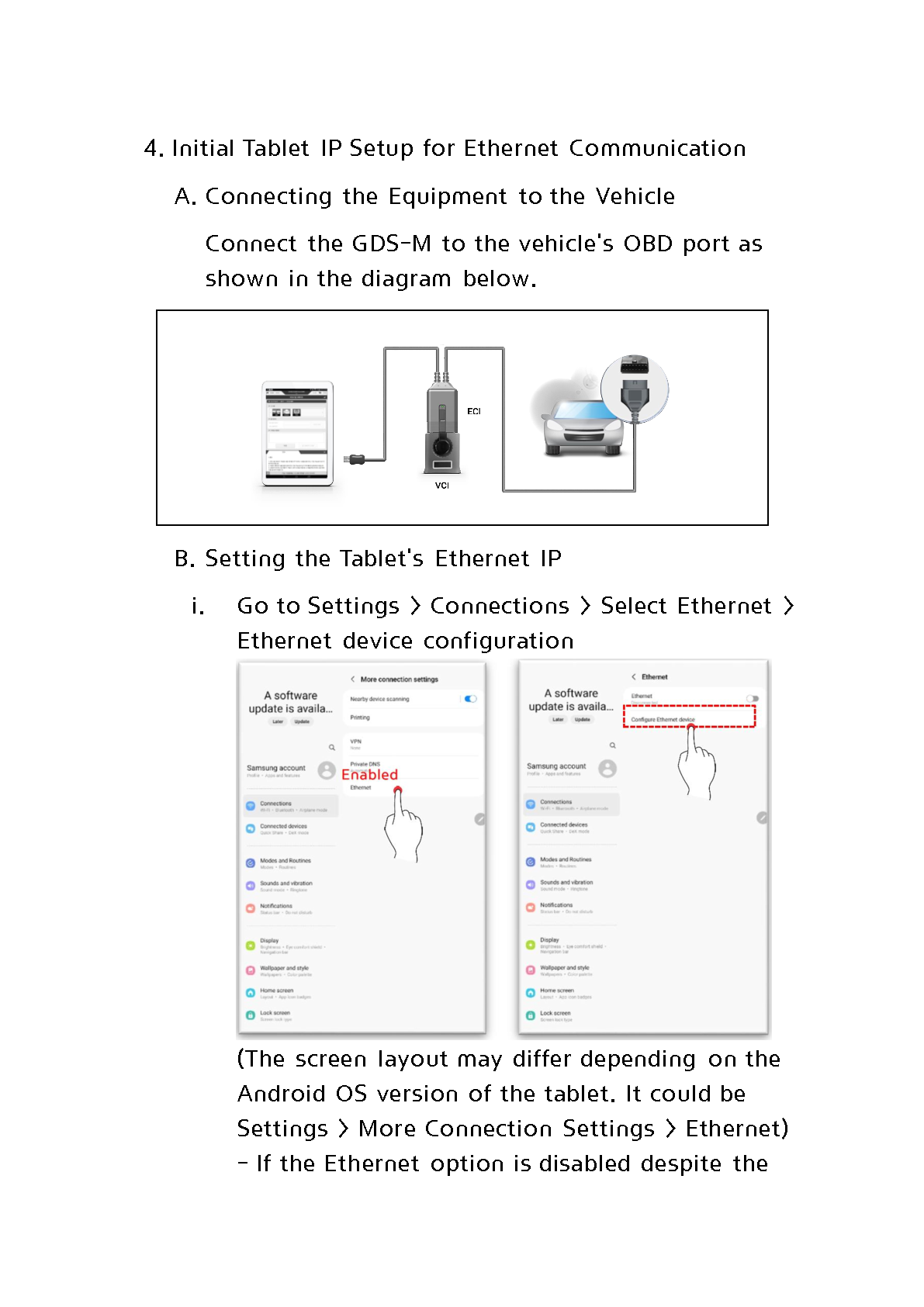

In the operating system settings, select Settings > Connections > More connection settings > Ethernet.
2. Configure the Ethernet device

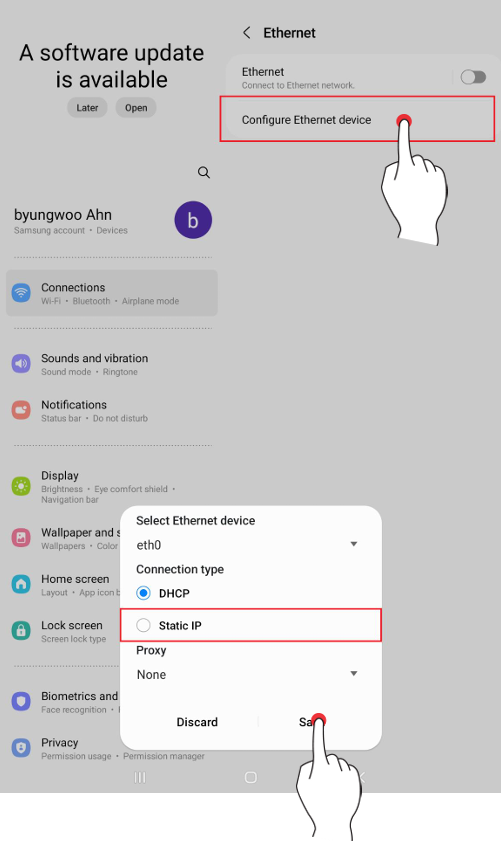

On the Ethernet device configuration screen, select Fixed IP Settings.
3. Enter and save the static IP address

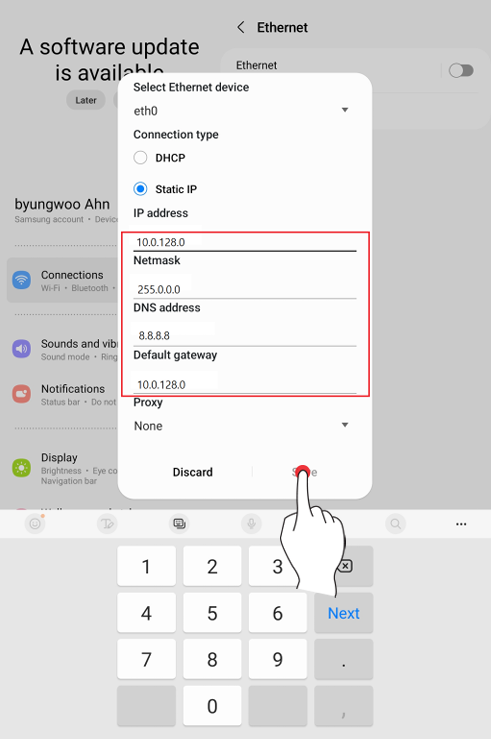

Enter the static IP address using the values displayed on the screen, then save the settings.
