How do I pair the CVCI (Compact VCI) with the Trigger Module?

By default, the CVCI (Compact VCI) and Trigger Module purchased as a package have matching serial numbers for the last five digits. These two devices are factory-paired and should connect automatically when powered on without requiring a separate pairing procedure.

If the devices are not factory-paired, or if devices with different serial numbers must be used, reset the pairing as follows.

 Pairing the CVCI (Compact VCI) with the Trigger Module (1:1)

   1) Connect the CVCI to the OBD-II connector, and use a pin to press the pairing switch on the bottom of the CVCI module. The CVCI enters pairing-ready mode, and the green and red LEDs illuminate alternately at 1 Hz. The CVCI remains in pairing standby mode for 60 seconds.

<CVCI Pairing Switch>

   2) Connect the Trigger Module to the vehicle's cigarette lighter socket, and press and hold the Enter key on the Trigger Module for at least 5 seconds. After a beep sounds, the Enter key illuminates orange (both the green and red LEDs are on), and the VCI2 LED flashes red rapidly. When the CVCI to be paired is detected, the CAN1 LED on VCI1 illuminates green. After approximately 20 seconds of attempting to pair, a beep sounds and the Enter key illuminates green.

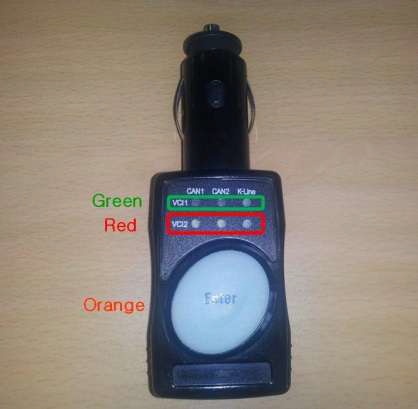

<Trigger Module LED>

  3) If the CAN1 LED does not illuminate green, pairing has failed. Repeat steps 1) and 2).

  4) After pairing is complete, disconnect the CVCI and Trigger Module from the vehicle, and then reconnect them to confirm that pairing was completed successfully. Connect the CVCI to the OBD-II connector and the Trigger Module to the cigarette lighter socket. The CAN1 and CAN2 LEDs on the CVCI should illuminate light green.
