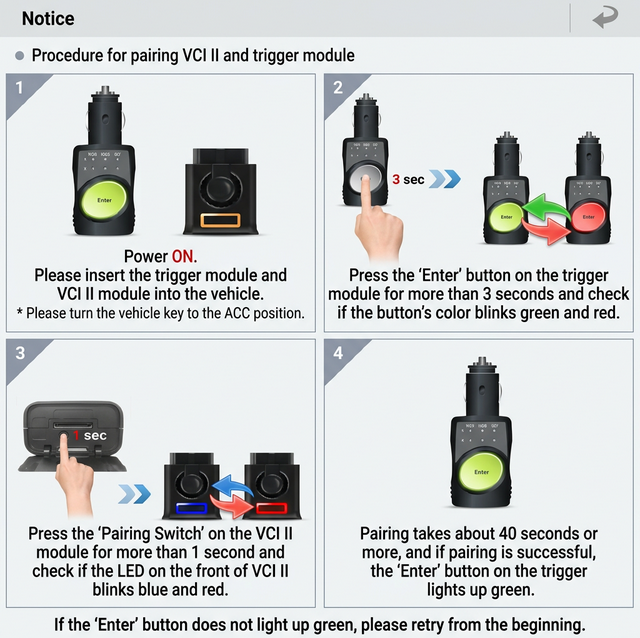

How to pair the VCI II/CVCI II with the trigger module

1. POWER ON. Connect the trigger module and VCI II module to the vehicle. (Note: Turn the vehicle ignition key to the ACC position.)
2. Press and hold the 'Enter' button on the trigger module for more than 3 seconds, and verify that the button flashes green and red.
3. Press and hold the 'Pairing Switch' on the VCI II module for more than 1 second, and verify that the LED on the front of the VCI II flashes blue and red.
4. Pairing takes approximately 40 seconds or longer. If pairing is successful, the 'Enter' button on the trigger module illuminates green.

Note: If the 'Enter' button does not illuminate green, repeat the procedure from the beginning.
