How do I perform an event setup in Manual Mode on CVCI II?

In the following situations, you can perform an event setup on the device using Manual Mode instead of Auto Mode.

1. The vehicle is unavailable, but the ROM ID is known

2. The CVCI II Bluetooth device cannot be registered in the Smart D-Logger program due to a PC issue

Procedure:

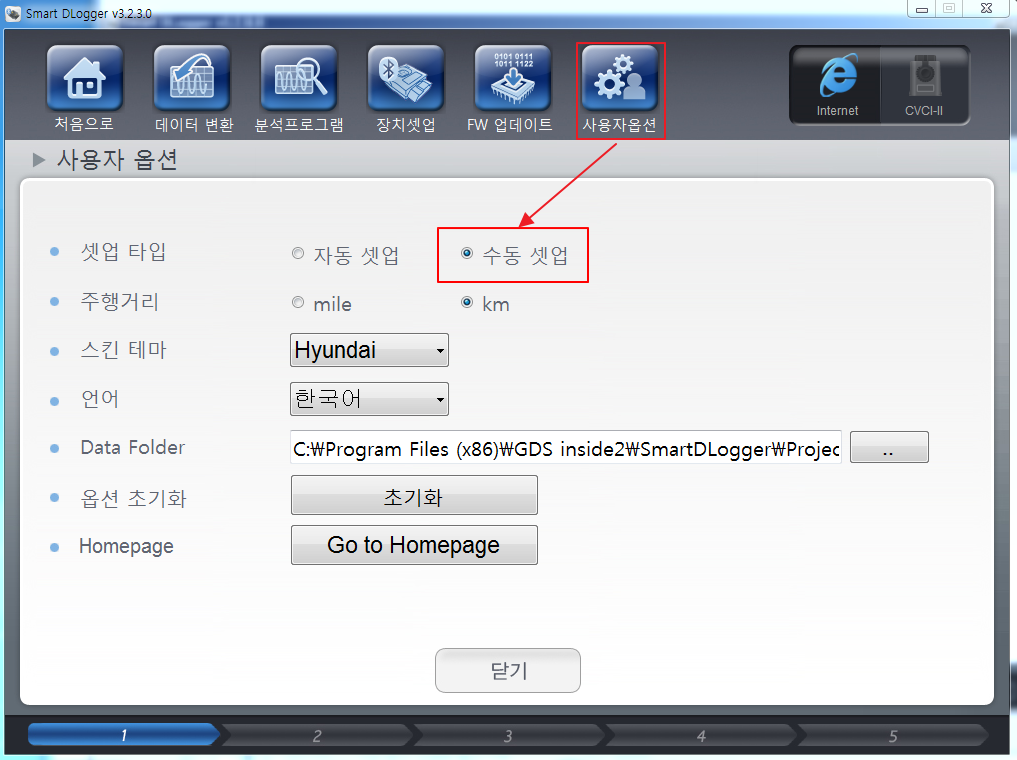

1) In User Options, select 'Manual Mode' as the setup type, and then click Close.

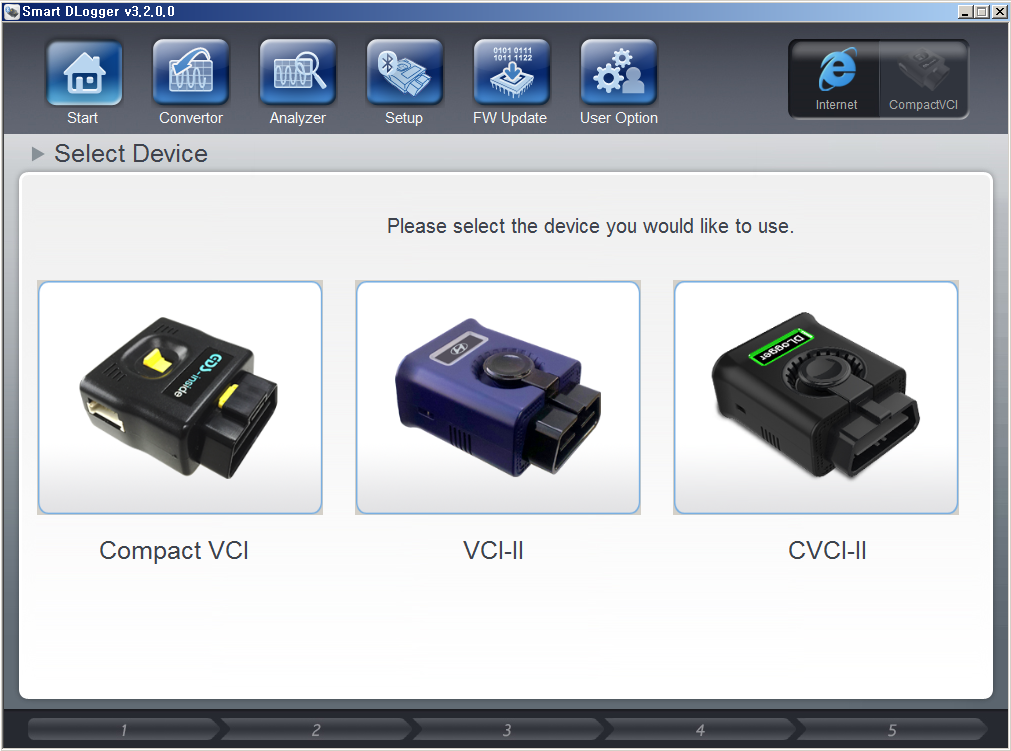

2) Select Start, and then select the device on which you want to perform the event setup.

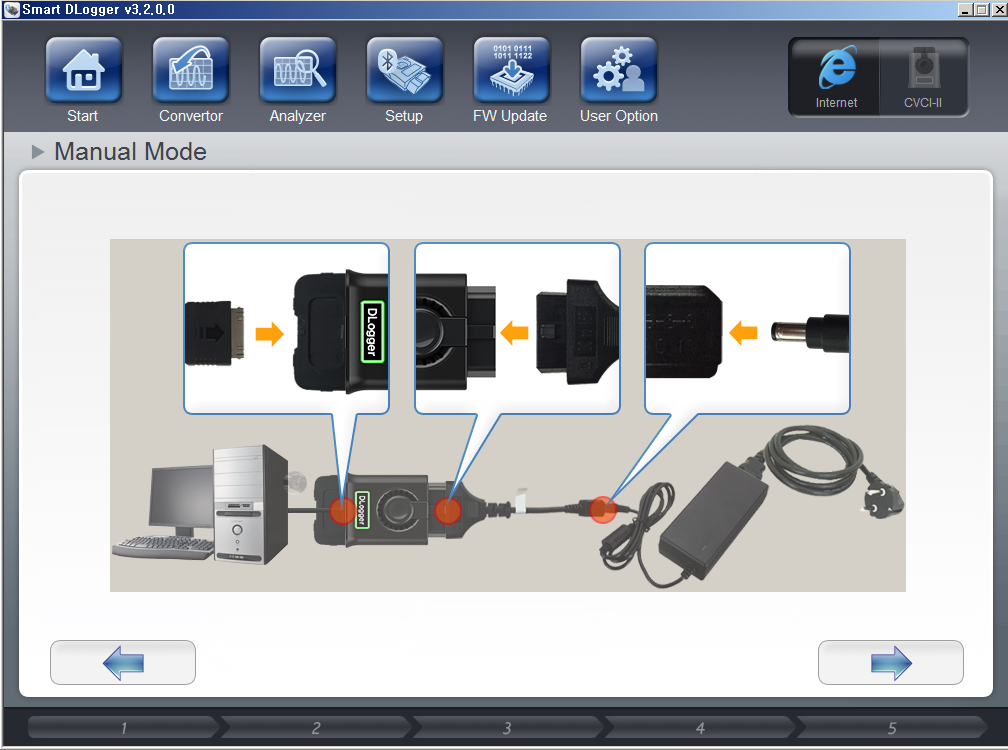

3) As shown in the image below, connect the USB cable, (C)VCI II, and OBD power adapter to supply power.

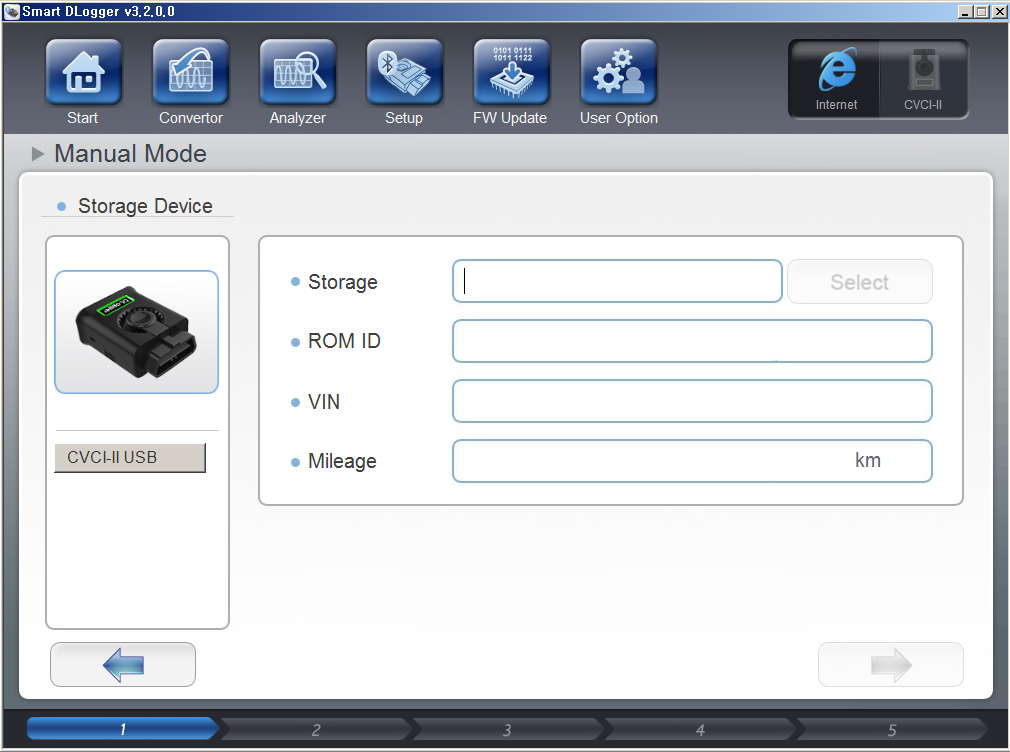

4) After power is supplied and the device is recognized correctly, select the device under Storage.

After selecting the device, enter the ROM ID, VIN, and Mileage in order, and then click the right arrow.

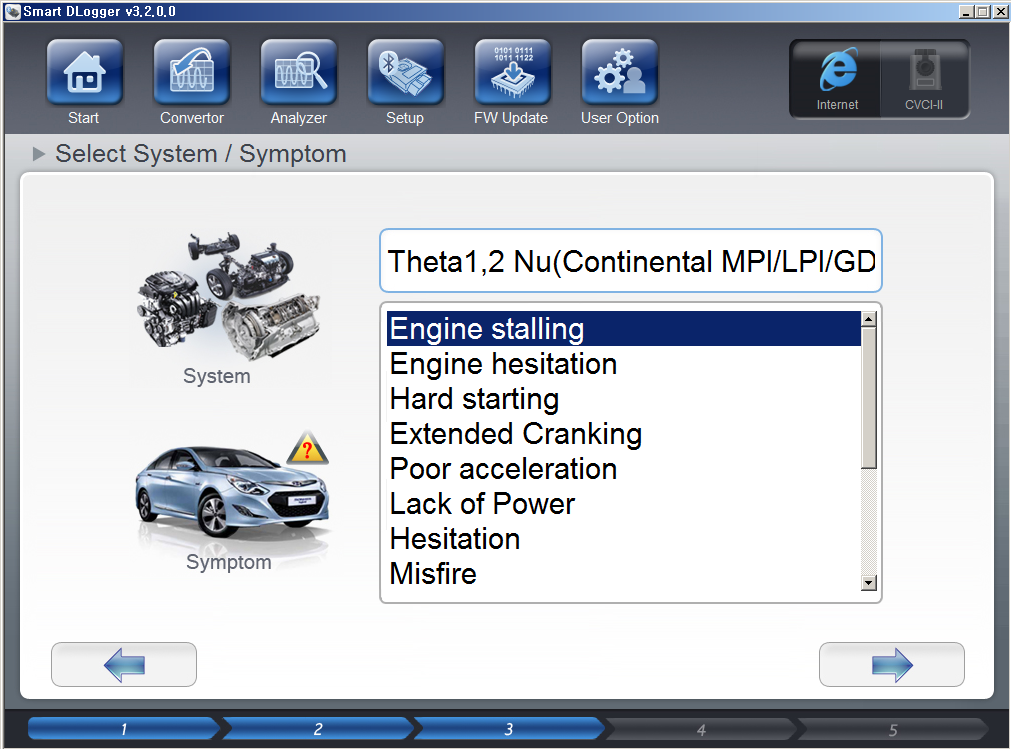

5) Select the system and symptom to be checked, and then click the arrow to proceed.

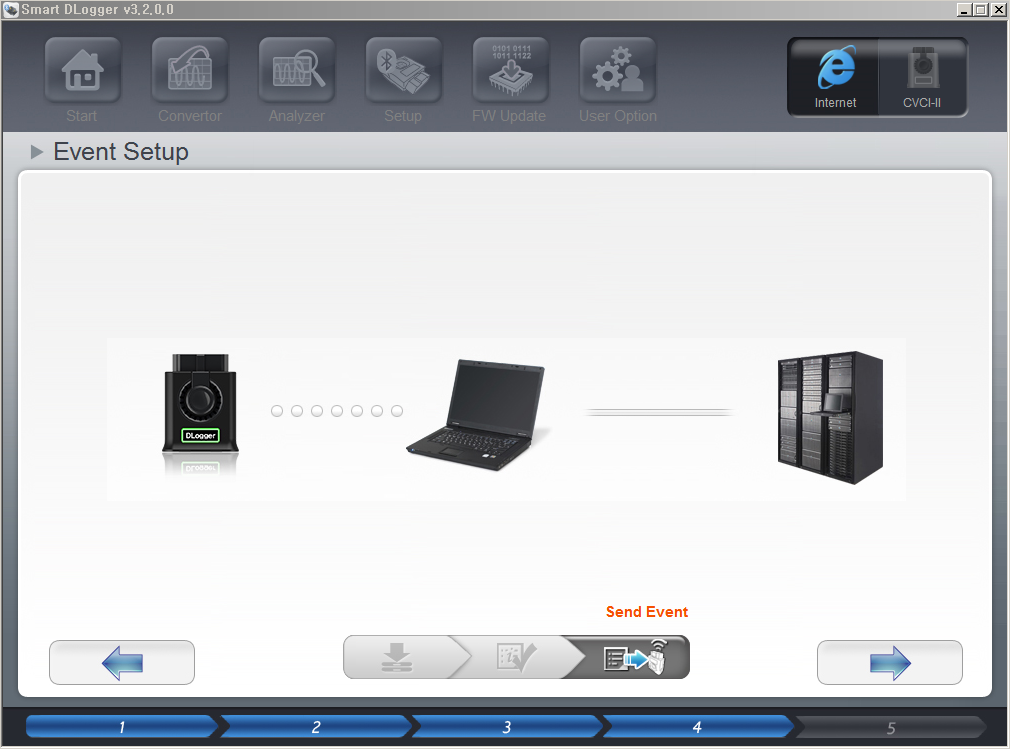

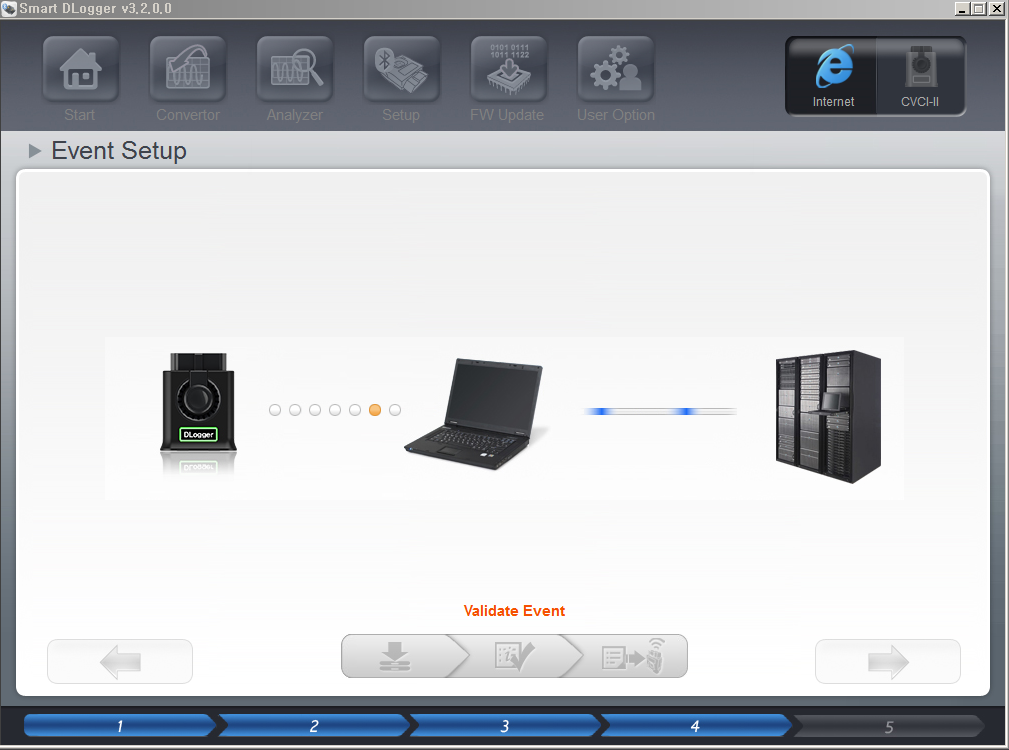

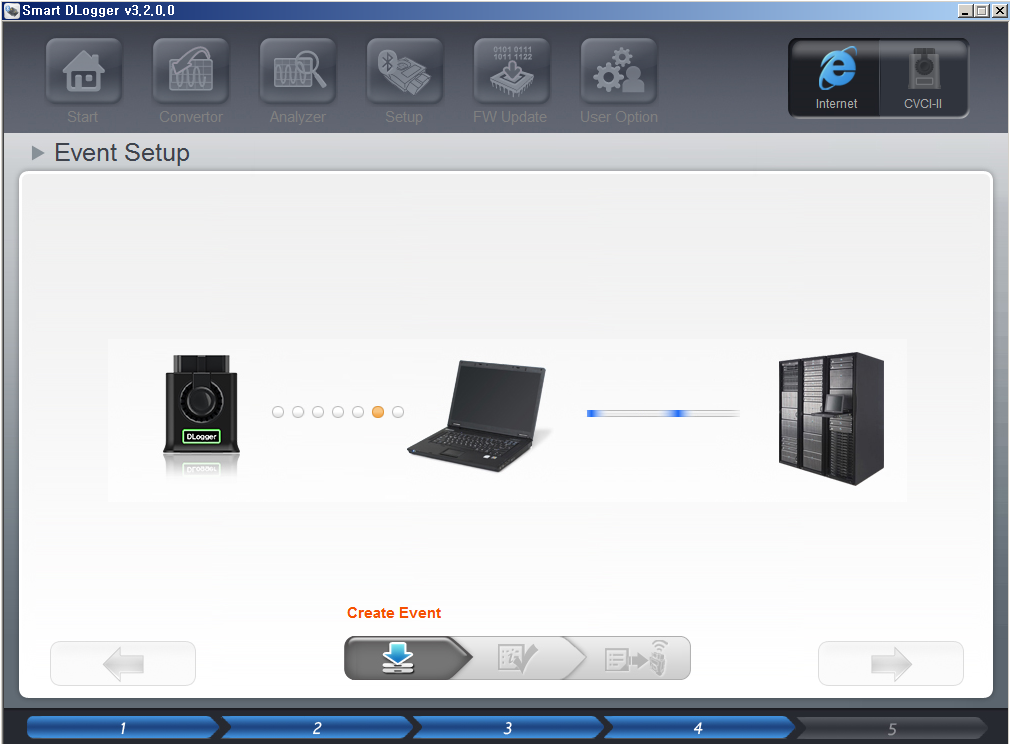

6) The event setup begins. During this process, the event file is downloaded from the server based on the ROM ID and the selected information. If the server does not have an event file matching the ROM ID, the event setup may fail.

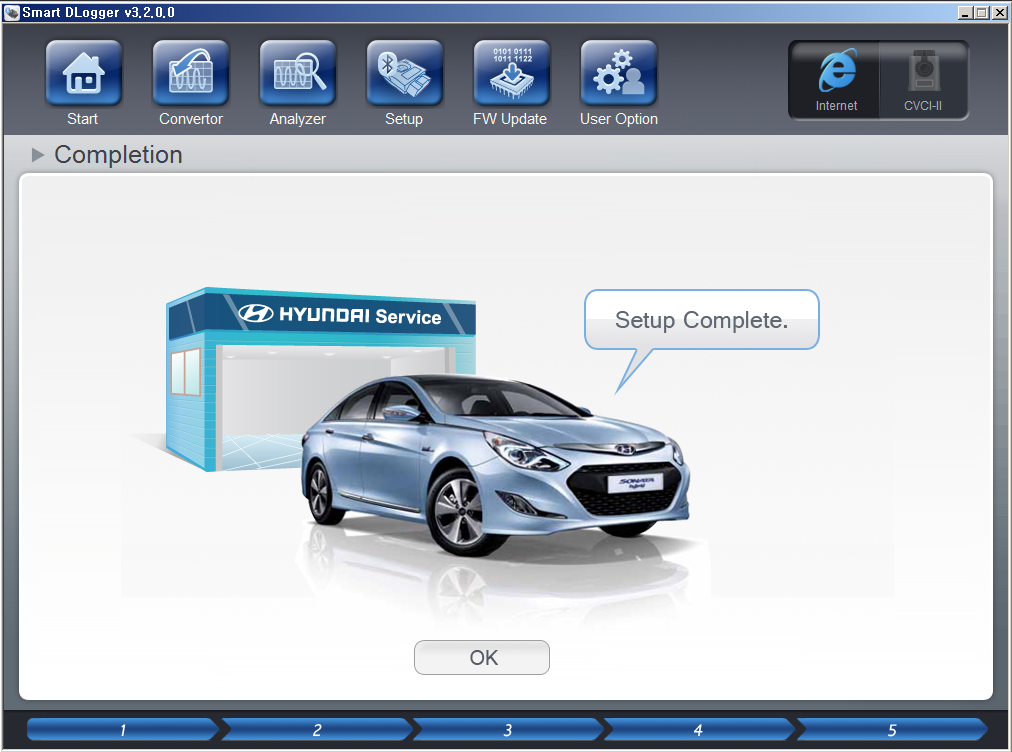

7) The event setup is complete.

8) Once the event setup is complete, you can proceed with driving and recording.
