How to Switch to Record Mode After CVCI Pairing

How to Switch Smart Drogger to Record Mode
This guide explains how to switch to Record Mode after pairing the CVCI.

1. After pairing the CVCI, run the file below to configure Record Mode.

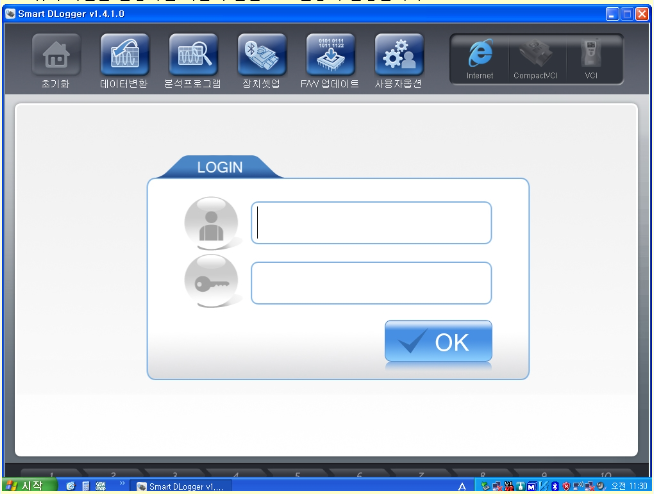

When you run the file above, the following login window appears.

2. The login ID and password shown above are available only to authorized users at the service center.

3. After logging in, select the CVCI and connect to it.

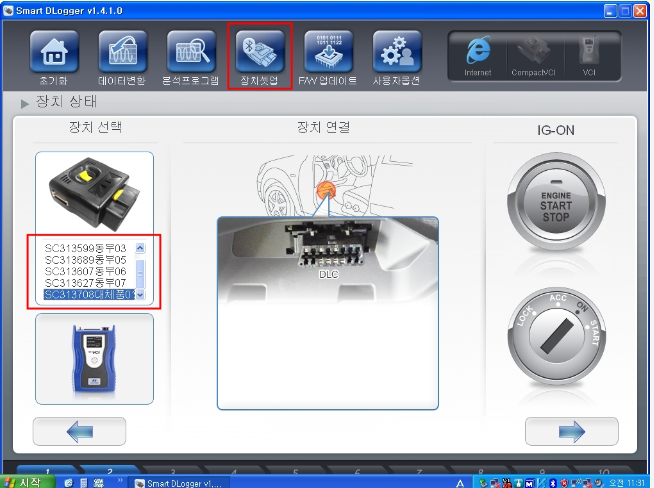

After pairing the CVCI in Windows, open "Device Setup" and register the CVCI.
The serial number of the registered CVCI will appear in the center section of the screen shown above.

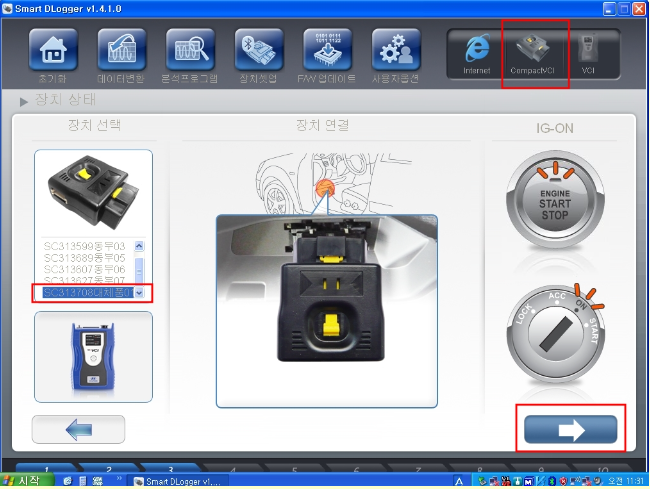

4. Select the CVCI to be configured, and then click (→). The indicator at the top of the screen below
will become active and appear in color.

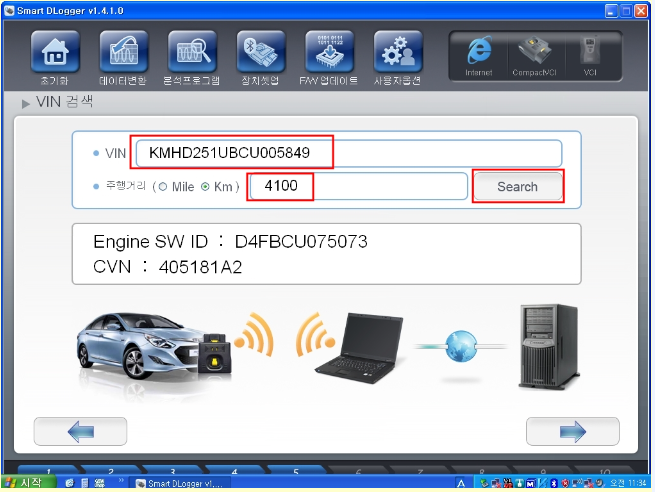

5.  1) When the CVCI connection is complete, the vehicle selection window shown below appears.
Enter both the VIN and mileage, and then click Search to complete the vehicle model selection.

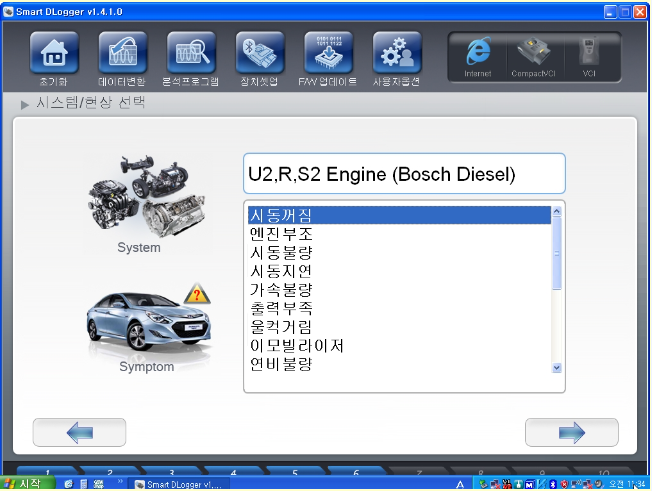

  2) After selecting the vehicle model, click (→). The symptom selection window shown below appears.
Select the vehicle symptom, and then click (→).

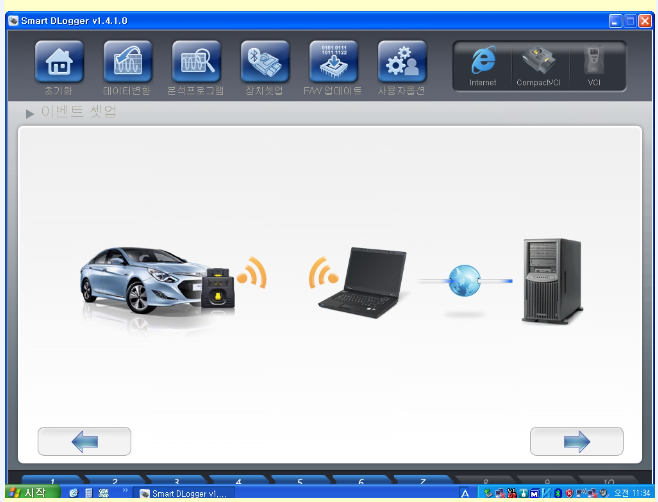

6.  1) After the vehicle and symptom selections are complete, the server connection window shown below appears.

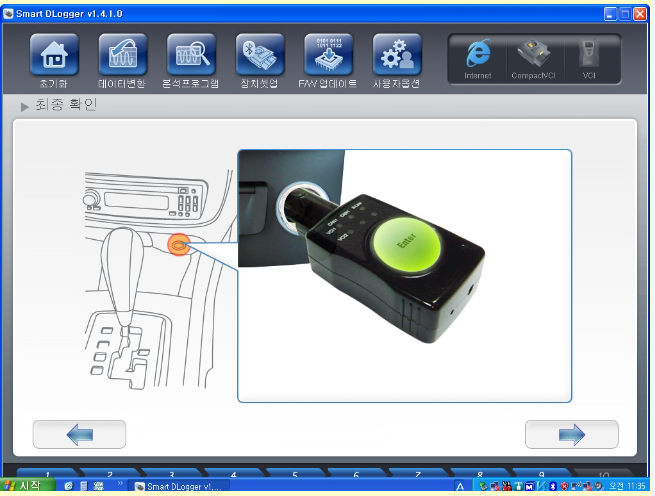

2) After connecting to the server, a message prompting you to connect the T-Module appears, as shown below. Once the T-Module connection is
complete, click (→).

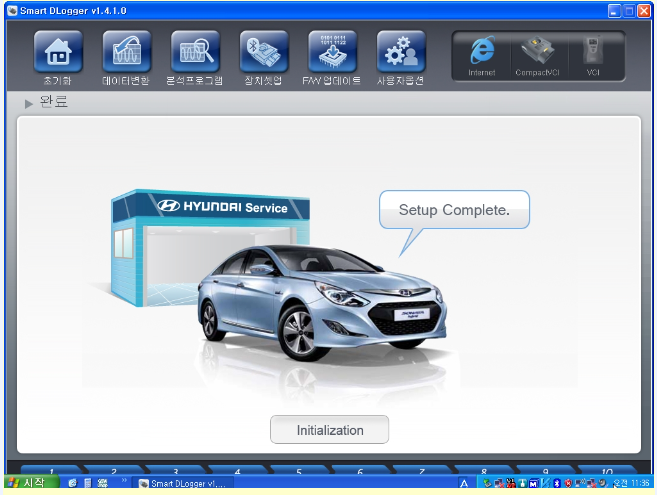

3) When Bluetooth pairing between the CVCI and T-Module is complete, the success message shown below
appears.
You can then drive the vehicle while reproducing and monitoring the symptom. Press the Enter button on the T-Module to
save the data.
