1) Symptom
- In BDC-TPMS Sensor Data, pressure values are displayed for [Front/Left]/[Front/Right]/[Rear/Left]/[Rear/Right] but the pressure unit is not displayed.
- Normally, a unit selection option is available when Sensor Data is opened. However, on this vehicle, the unit option itself is not displayed, so the unit cannot be changed.
Explanation:
1. The Tire Pressure Unit item displays psi
- This value indicates the pressure unit calculated by the TPMS. It is not a setting configured in KDS 2.0.
2. Unable to change the pressure unit for Front Left/Front Right/Rear Left/Rear Right
- TPMS Sensor Data is divided into a General Data group and an Event Data group.

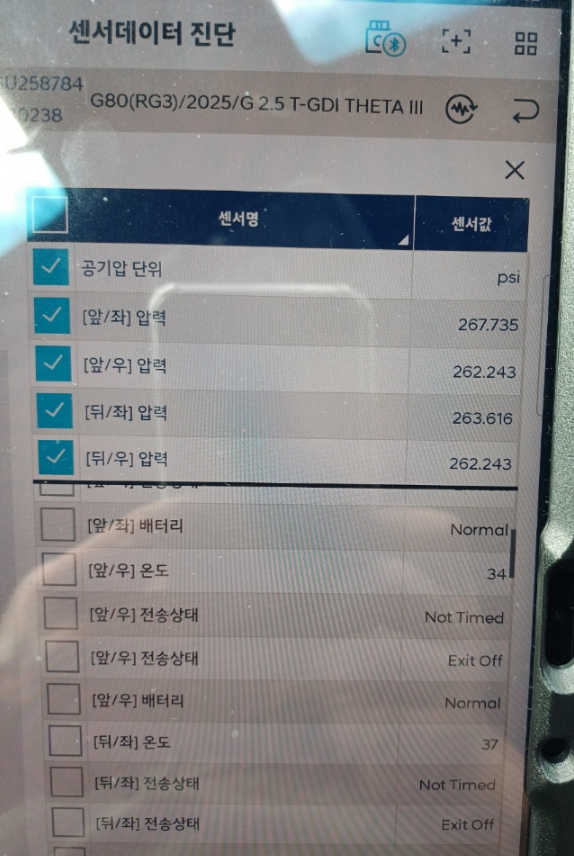

In the attached screen, the group is expanded. As a result, the unit is not displayed and cannot be changed. (The cropped section on the left is the group selection screen.)
Collapse the group to display and change the unit.
It has been confirmed that there is no issue with KDS 2.0.
