Unable to Register the Device or Perform Automatic Setup When Connecting CVCI II via USB Cable

Symptom: When attempting to register CVCI II using a USB cable, it is recognized only as a removable disk and cannot be registered as a USB device.

Solution: Check the SmartDLogger software and firmware versions.

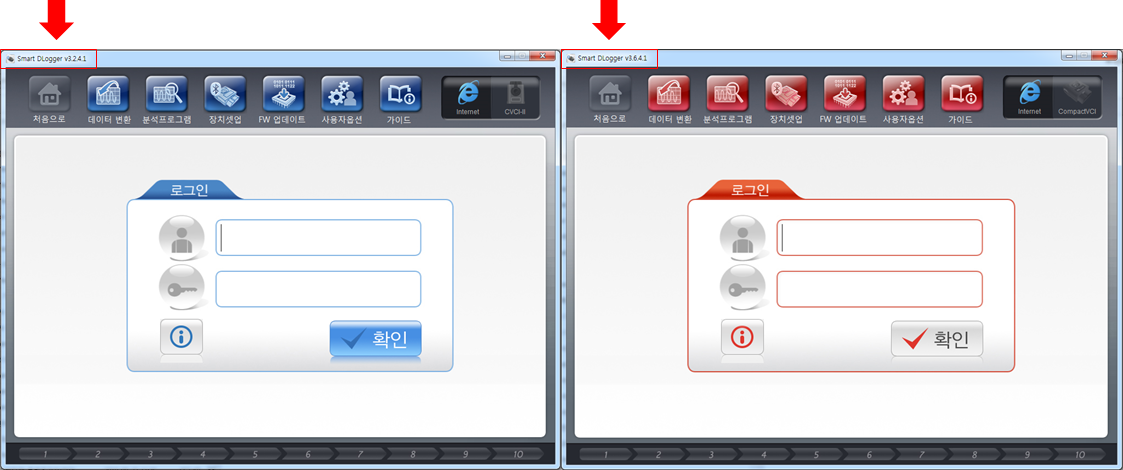

<SmartDLogger Software>

Hyundai - SmartDLogger 3.2.4.0 or later

Kia - SmartDLogger 3.6.4.0 or later

<Firmware Version>

Hyundai/Kia firmware version - 01.05 or later

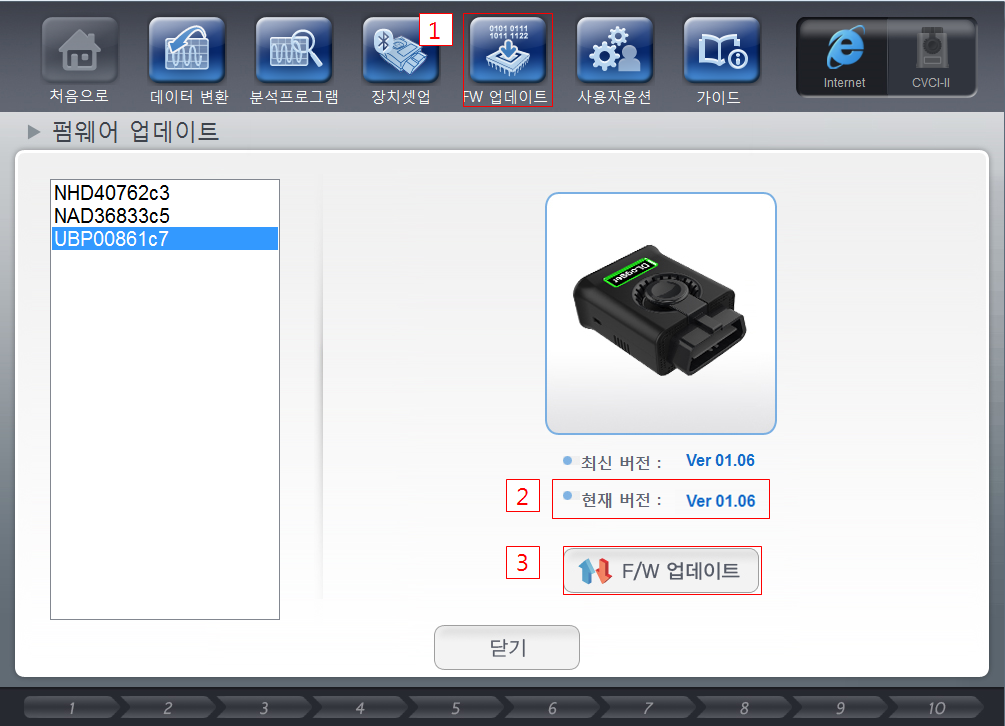

If the firmware version is 01.04 or earlier, device registration and Automatic Setup cannot be performed using a USB cable. Check and update the firmware version as shown in the image below.

To update the firmware, the device must first be registered via Bluetooth. If the device cannot be registered via Bluetooth, refer to the FAQ below.

CVCI II Cannot Be Registered in the Smart Dlogger "Device Setup" Menu
