How to Retrieve ECU Logs from Your Kia KDS 2.0 Tablet

How to retrieve ECU logs from your KDS 2.0/KDS2.0 tablet

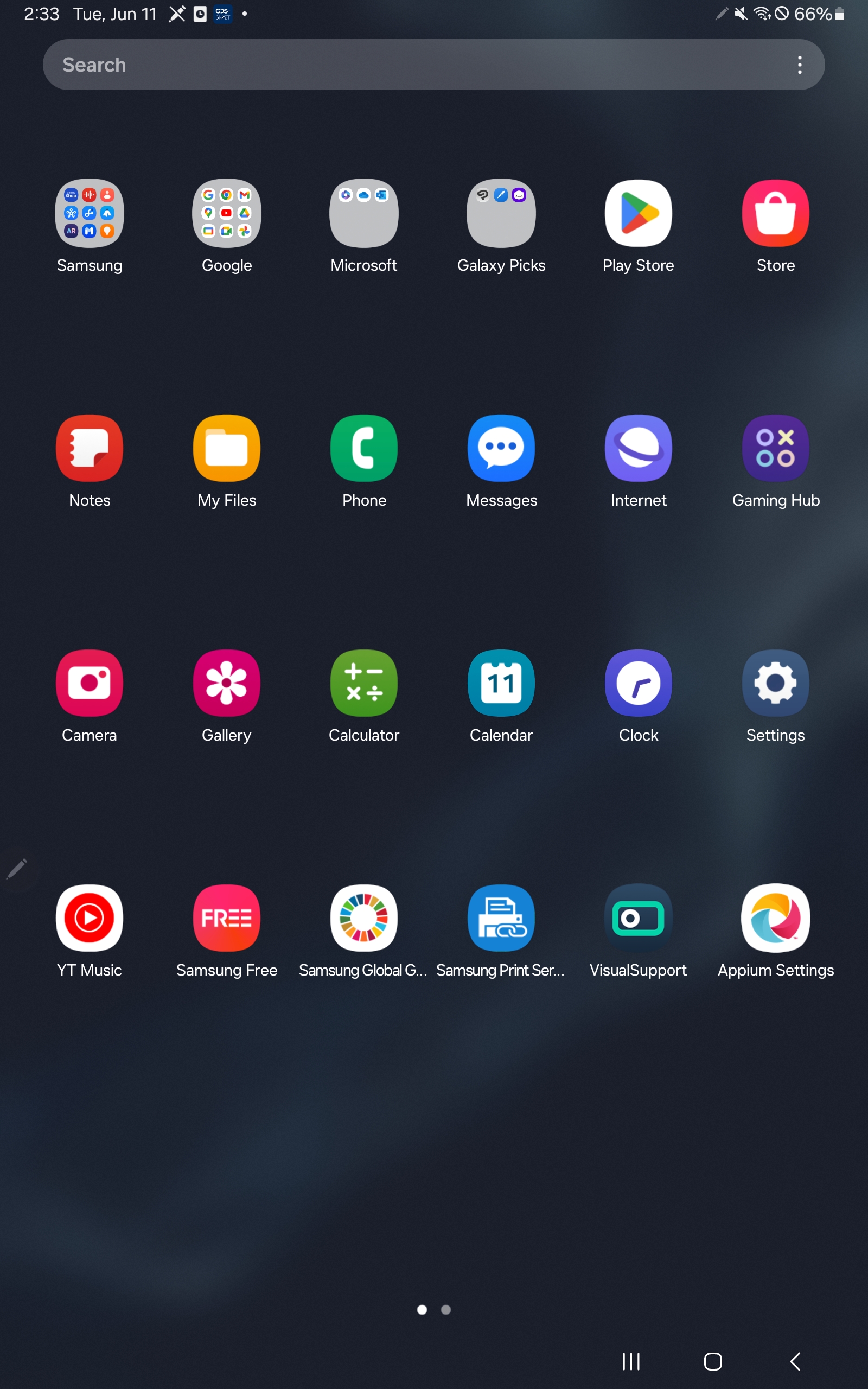

1. Tap "My Files" on your tablet.

2. Go to "Internal storage \ NvciData\ log". You will find the "ecu" folder.

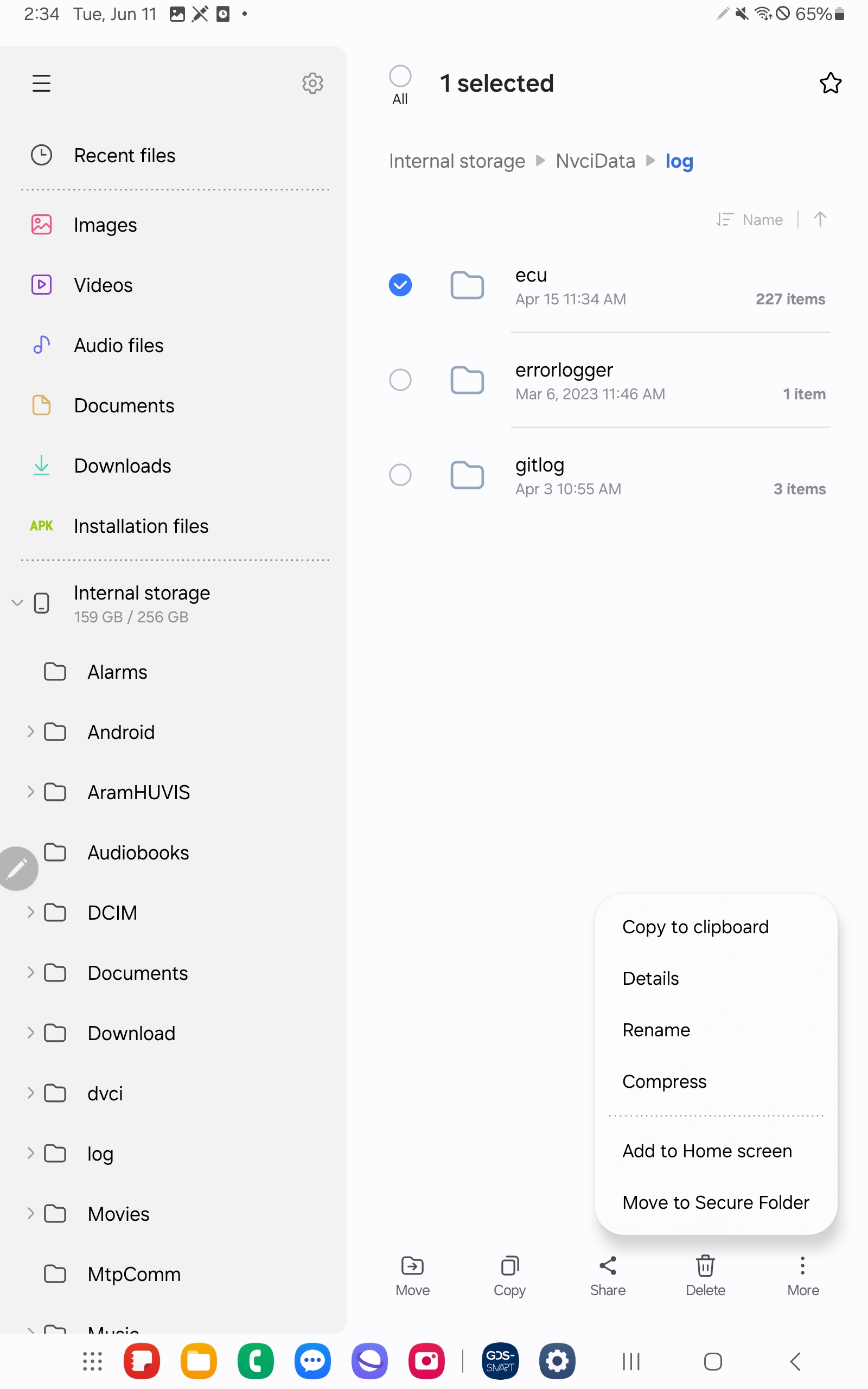

    Touch and hold the "ecu" folder for 2~3 Seconds. Once it is selected, tap "More".

    A pop-up menu will appear at the top.

    Tap "Compress".

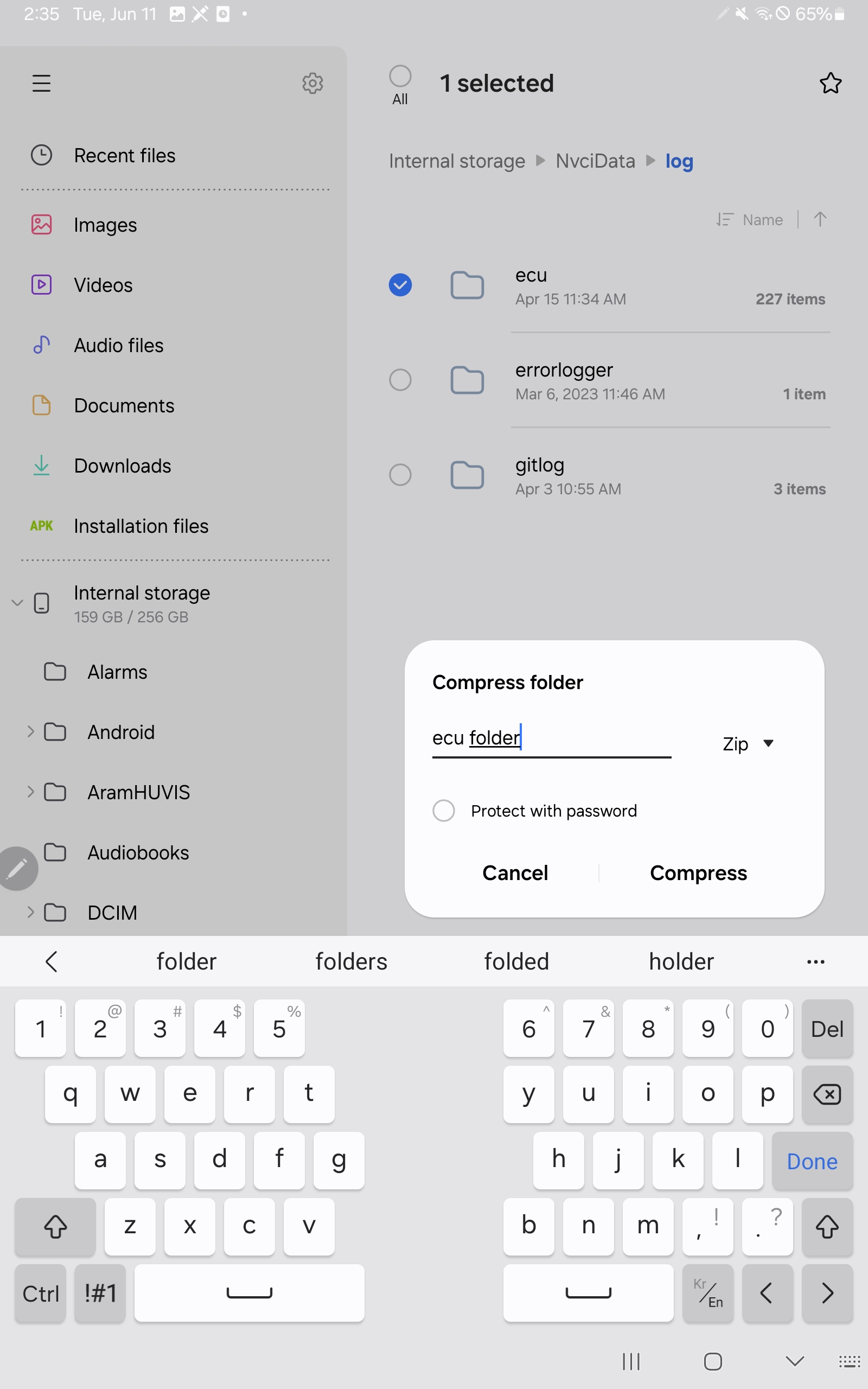

3. Rename it "ecu folder" or enter another name.

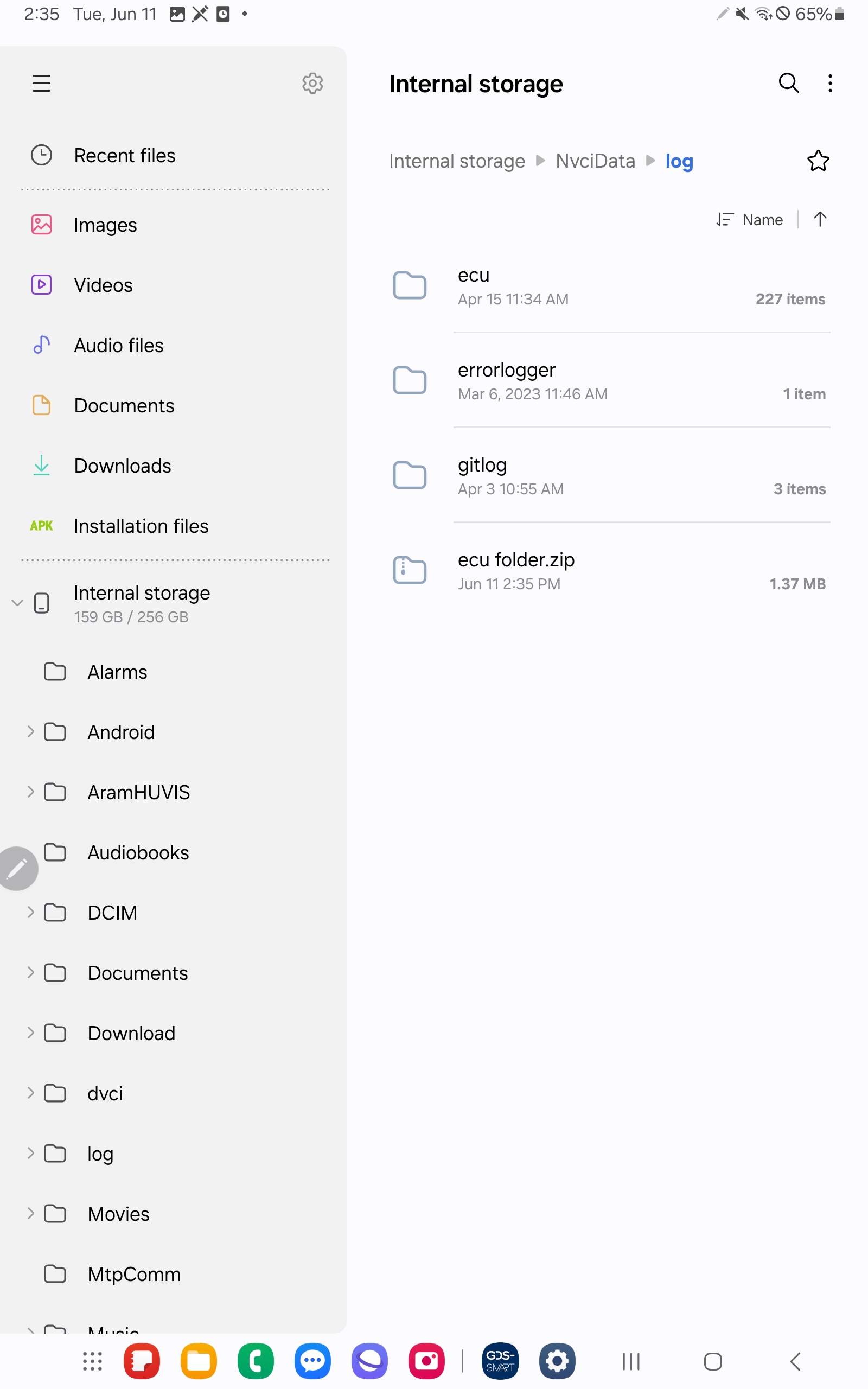

4. You will now have an "ecu folder.zip" file.

5. Transfer this file to your PC or phone using Quick Share or another file-transfer method, and email it to us as an attachment.

   Alternatively, you can send it directly using Gmail on the tablet.
