ECI Connection Guide.(Including Ethernet static IP setting method)

Oscar Eom

Please see the ECI upgrade connection guide.

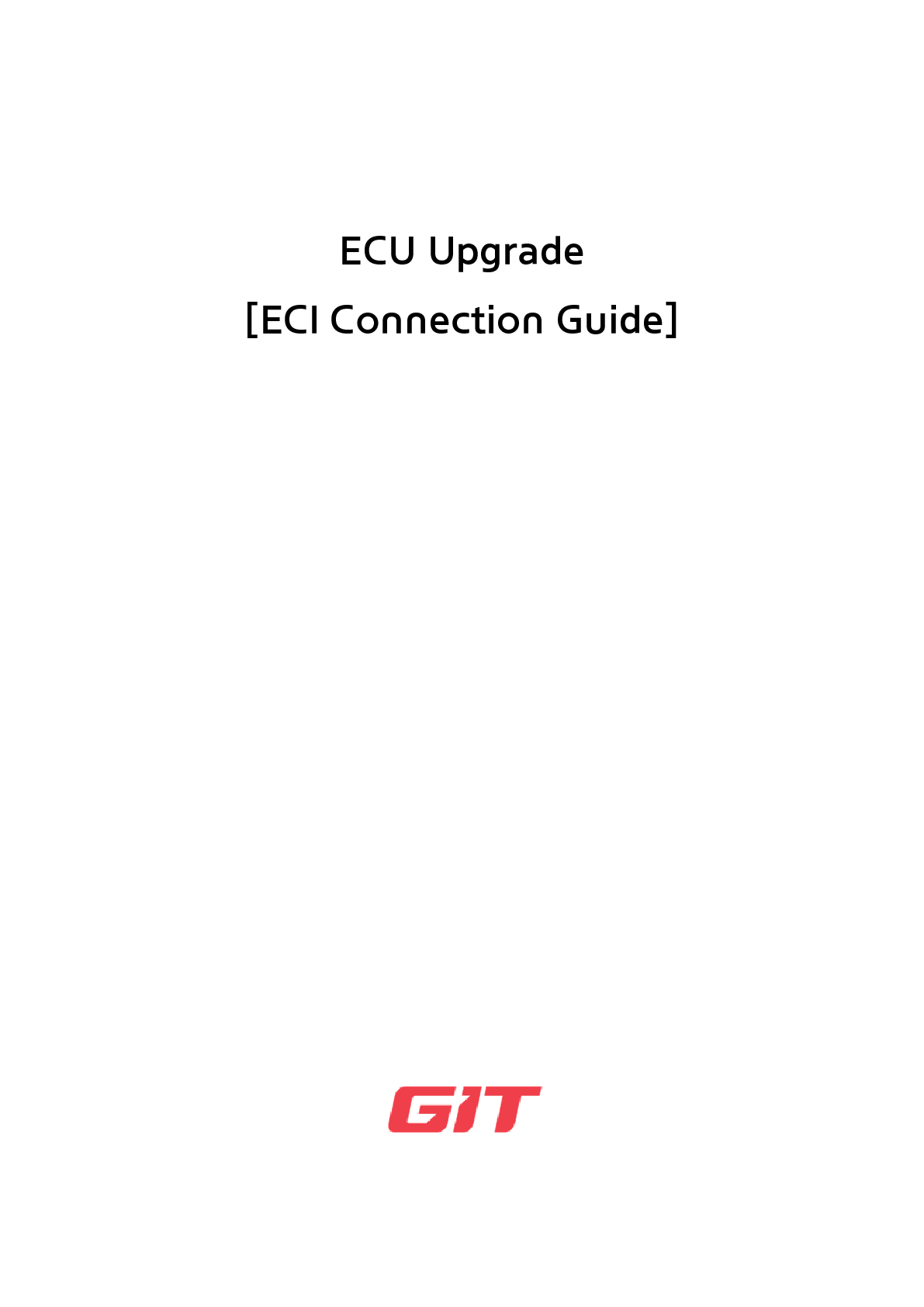

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_1.png

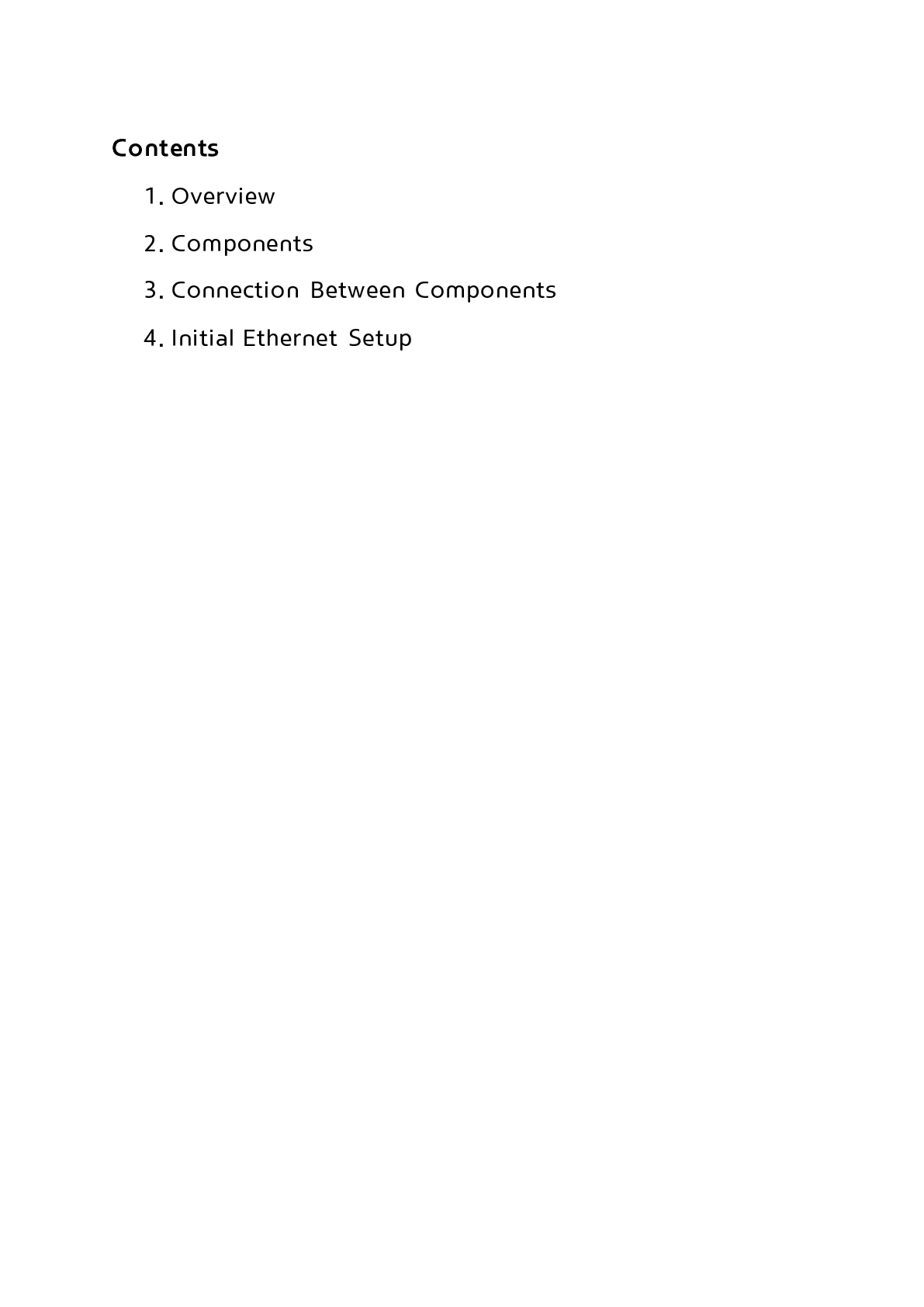

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_2.png

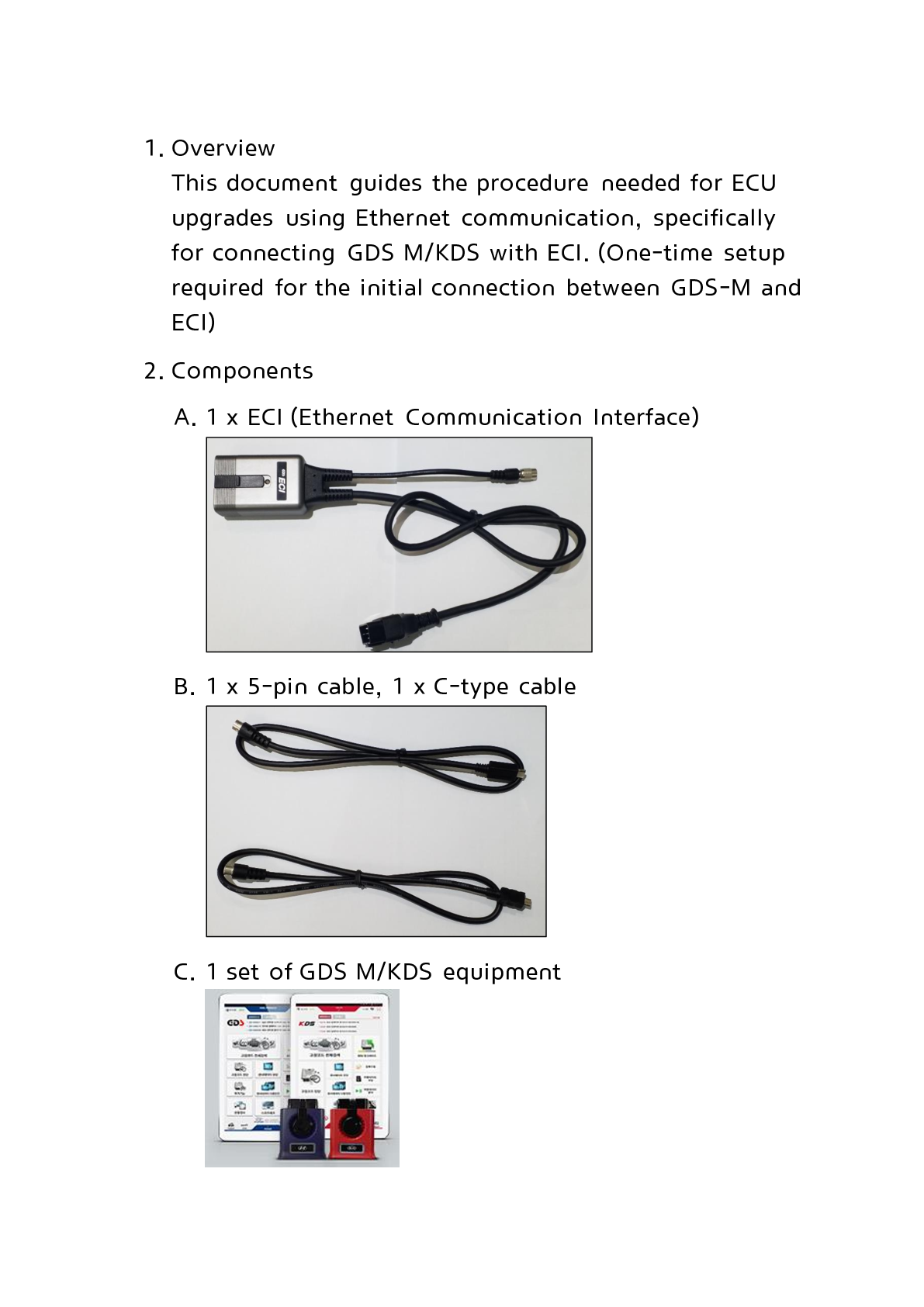

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_3.png

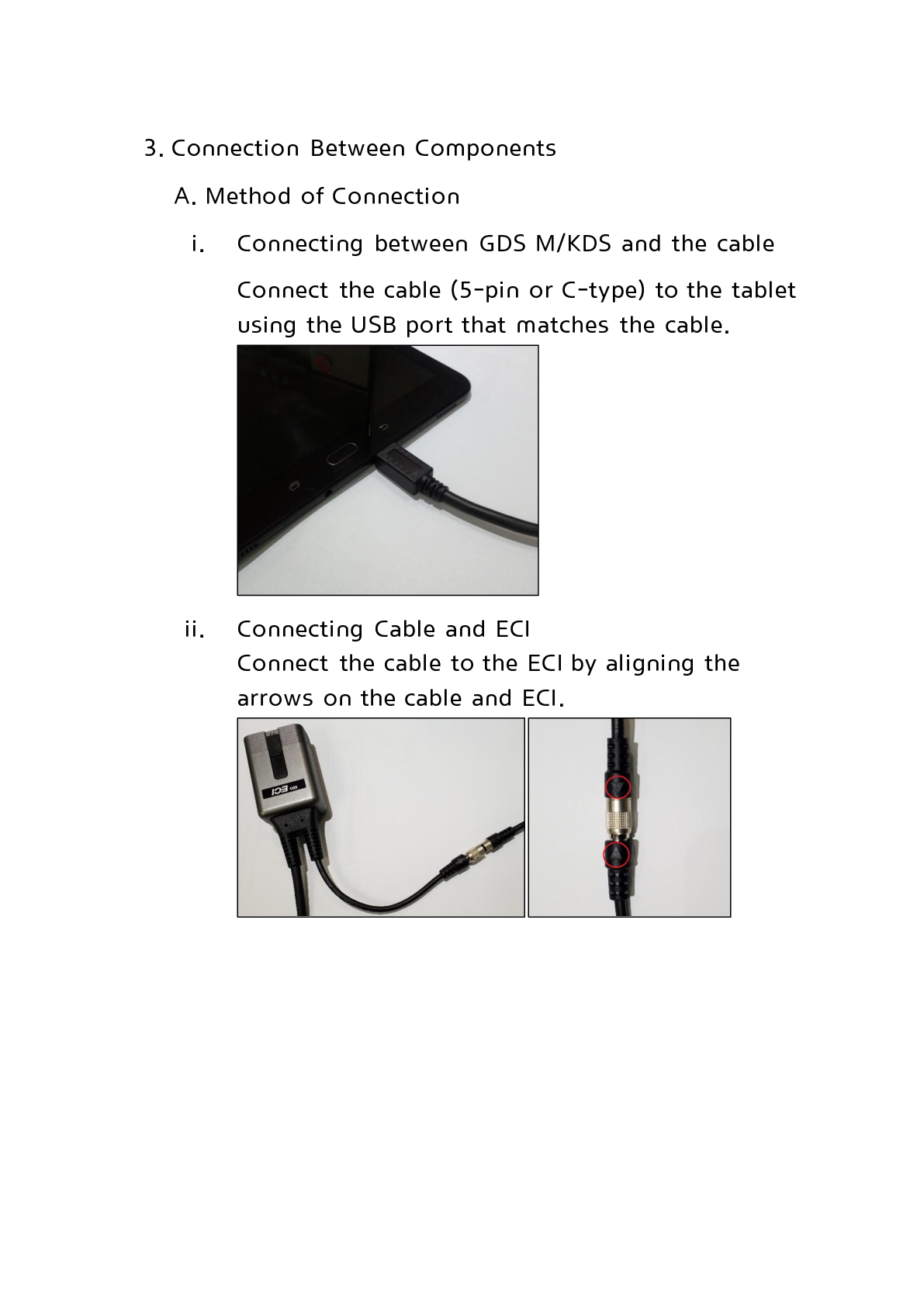

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_4.png

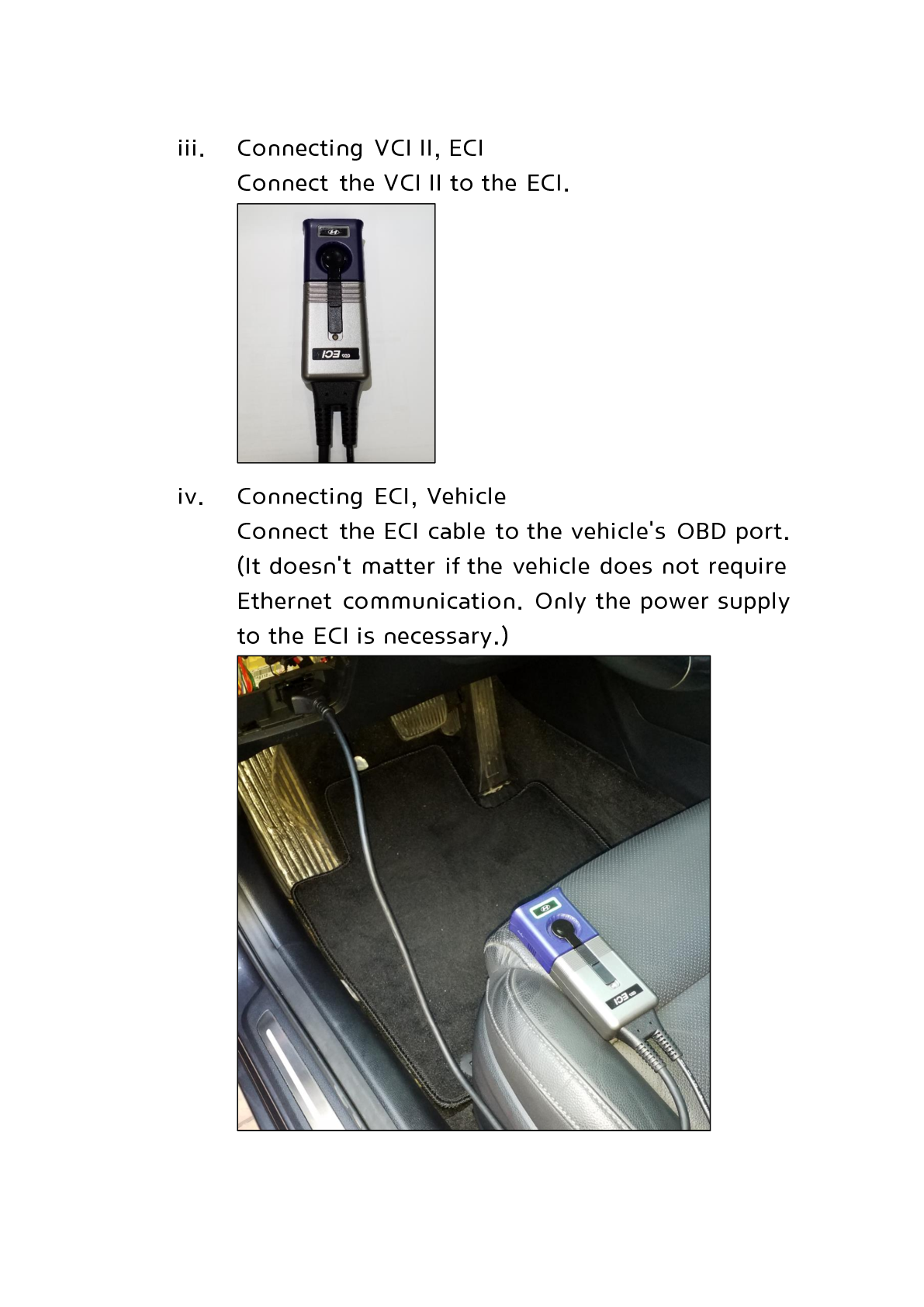

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_5.png

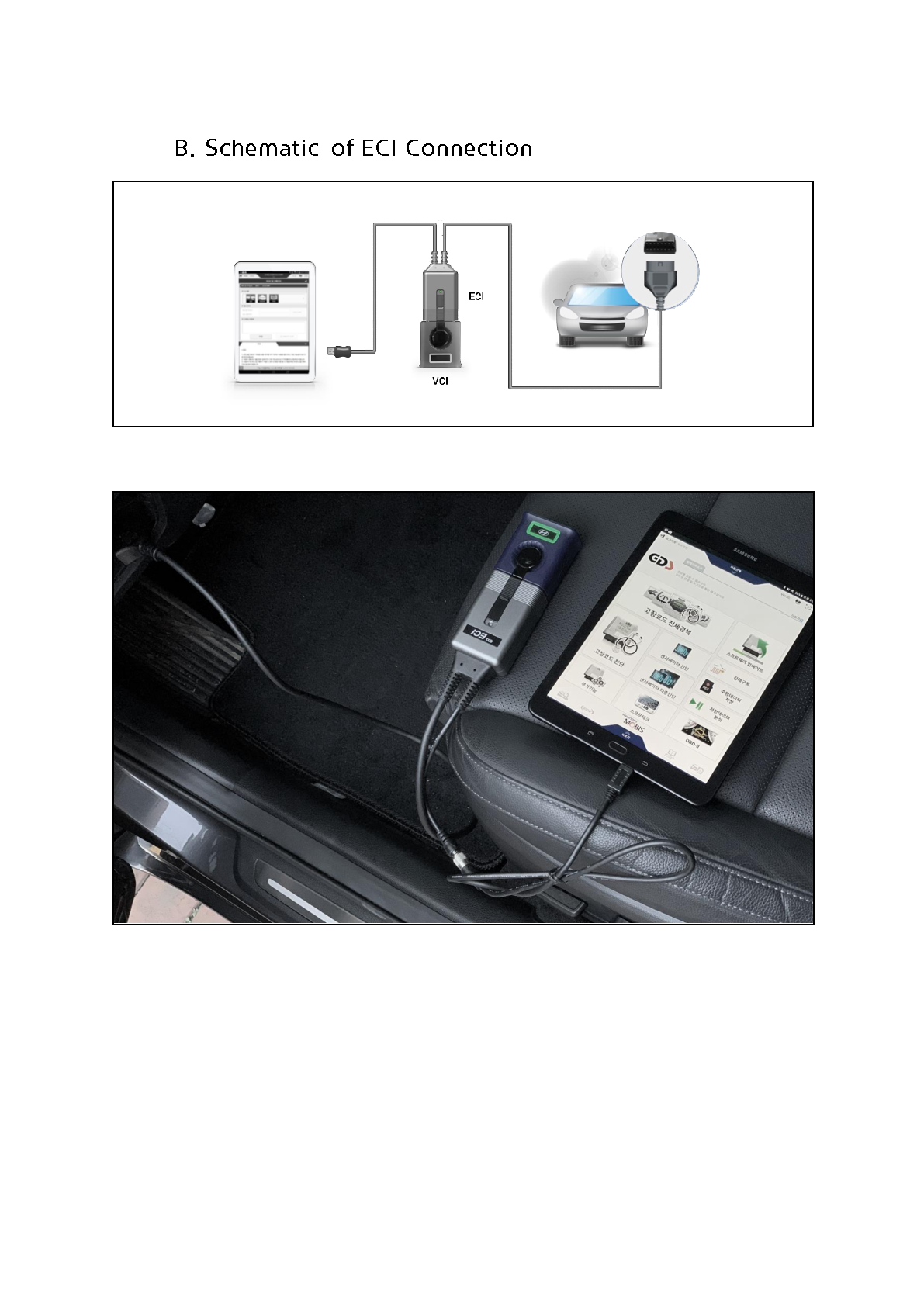

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_6.png

4. Set the static IP on our tablet PC for Ethernet Communication as follow video.
