How to Check Vehicle Specification Information (Part Number, H/W, and S/W) in Kia KDS 2.0

※ Images and menu names may vary depending on the region and manufacturer.

How to Check Vehicle Specification Information

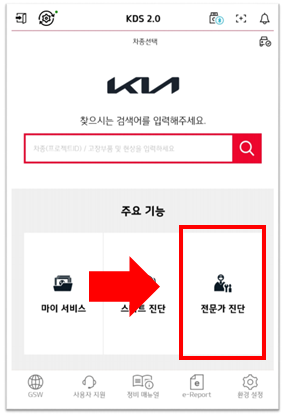

1. Tap [Expert Diagnosis].

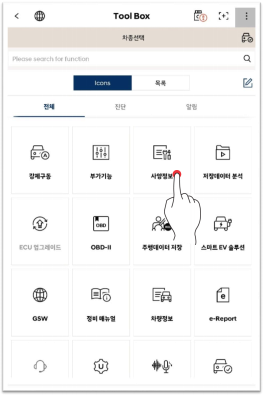

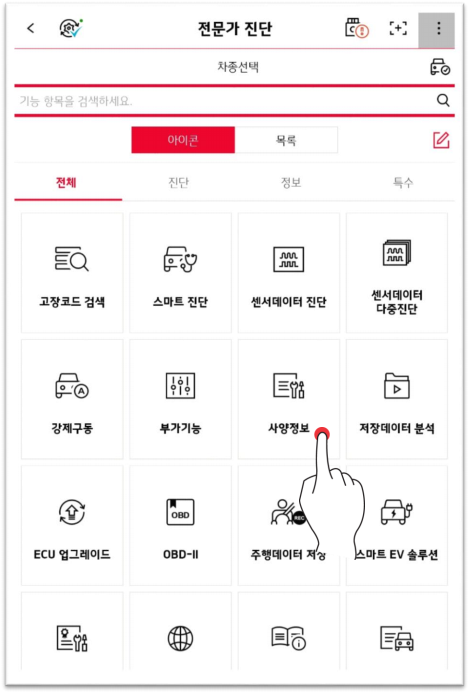

2. Tap [Specification Information].

3. When the function opens, it retrieves the specification information for the selected control unit.

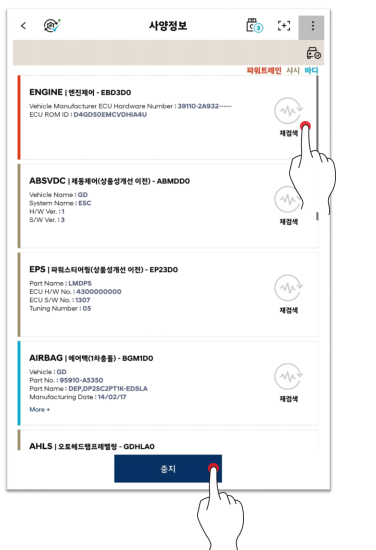

* Search Again/Stop

Tap the ‘Stop’ button at the bottom to stop the search. To search a control unit again, tap the ‘Search Again’
button to the right of the control unit.

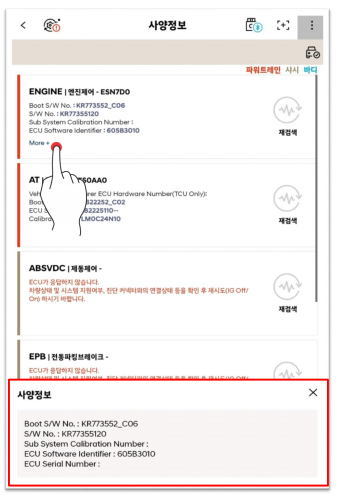

4. Tap the ‘More+’ button at the bottom of the selected system to view additional specification information.
