ECU Upgrade Failure with Message "Failed(Code: Rule Worker Changing FW Mode Failed: ECU_UPGRADE_CAN)"

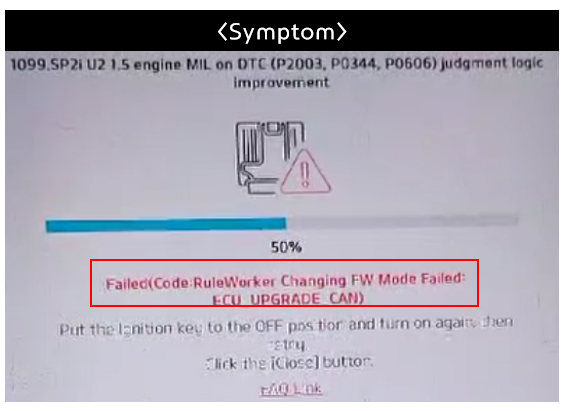

1. Symptom

: The ECU upgrade fails with the message "Failed(Code: Rule Worker Changing FW Mode Failed: ECU_UPGRADE_CAN)".

2. Cause

: The VCI firmware is corrupted.

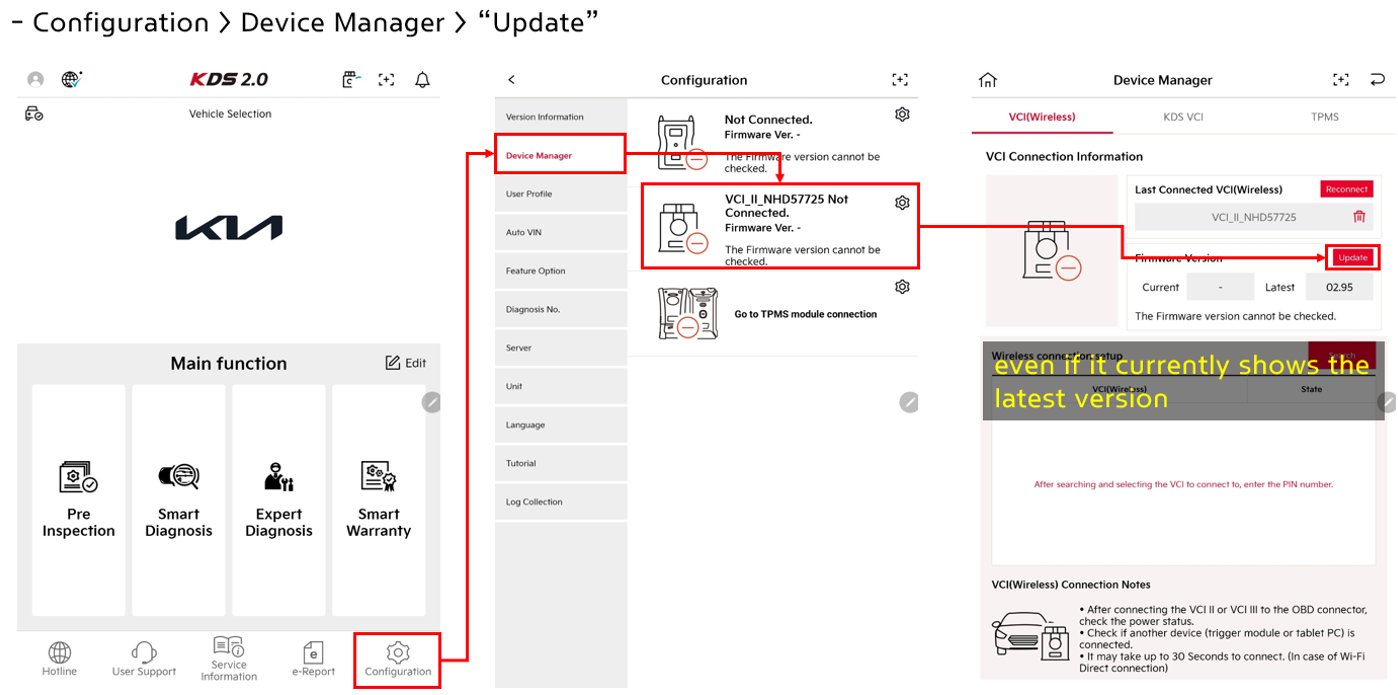

3. Workaround
