[Before You Begin]

1. This version of Setup Manager is intended only for the Europe/General region.

If you are located in the Americas or another region, please disregard this article.

2. This guide is intended for customers who need to install KDS 2.0 using a USB flash drive due to limited internet access.

If you want to install KDS 2.0 online, refer to the guides below.

To download the Setup Manager Guide in your language, refer to the information below.

1. Connect the USB flash drive containing the Setup Manager installation files.

2. Locate 'GDSN_SetupManager.exe' on the USB flash drive.

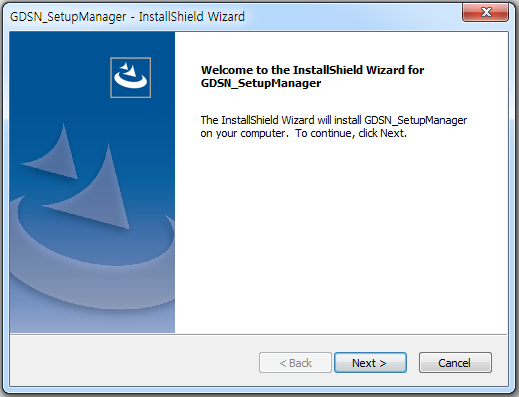

3. Run 'GDSN_SetupManager.exe' to install Setup Manager, and then select the 'Next' button.

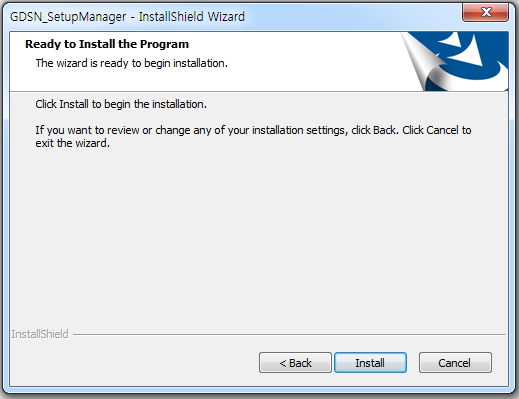

4. Select the 'Install' button. The installation may take a few Minutes.

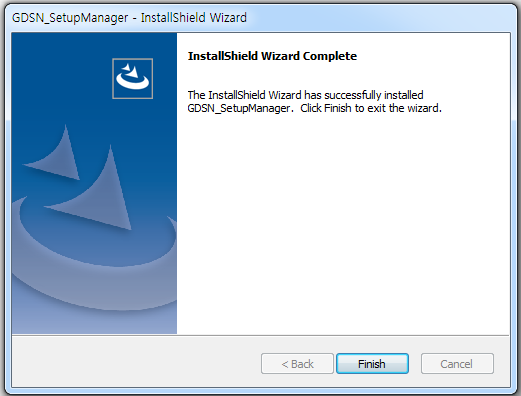

5. Select the 'Finish' button to complete the installation.

6. Locate the 'Setup Manager' shortcut on the desktop, and then run 'Setup Manager'.

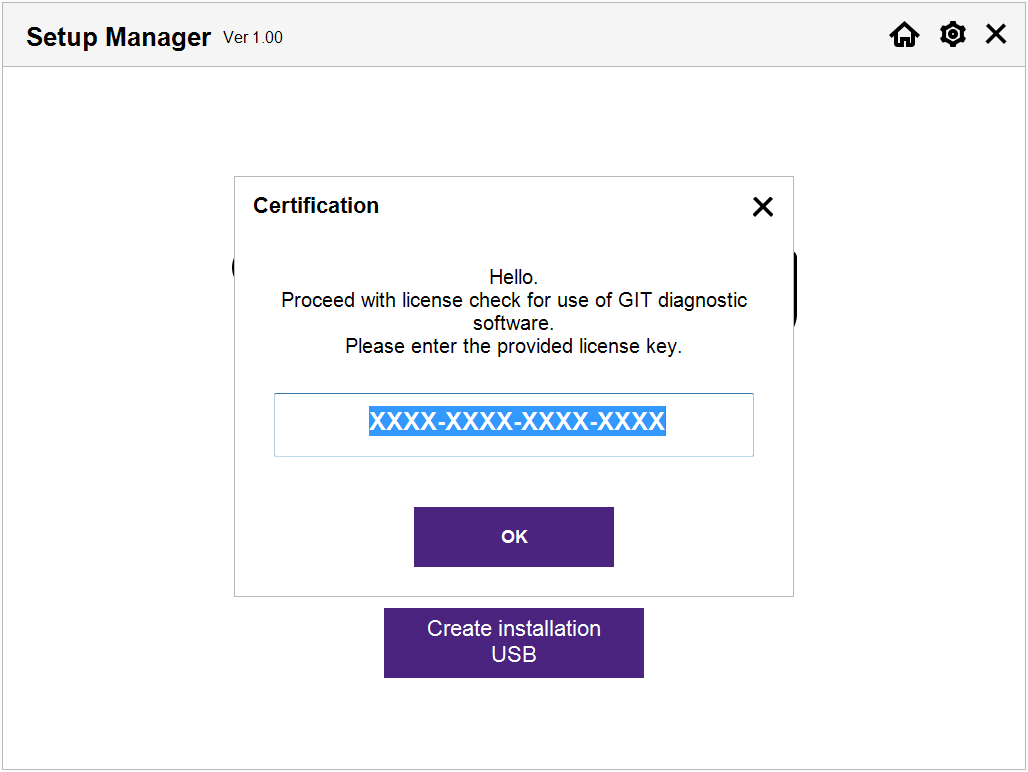

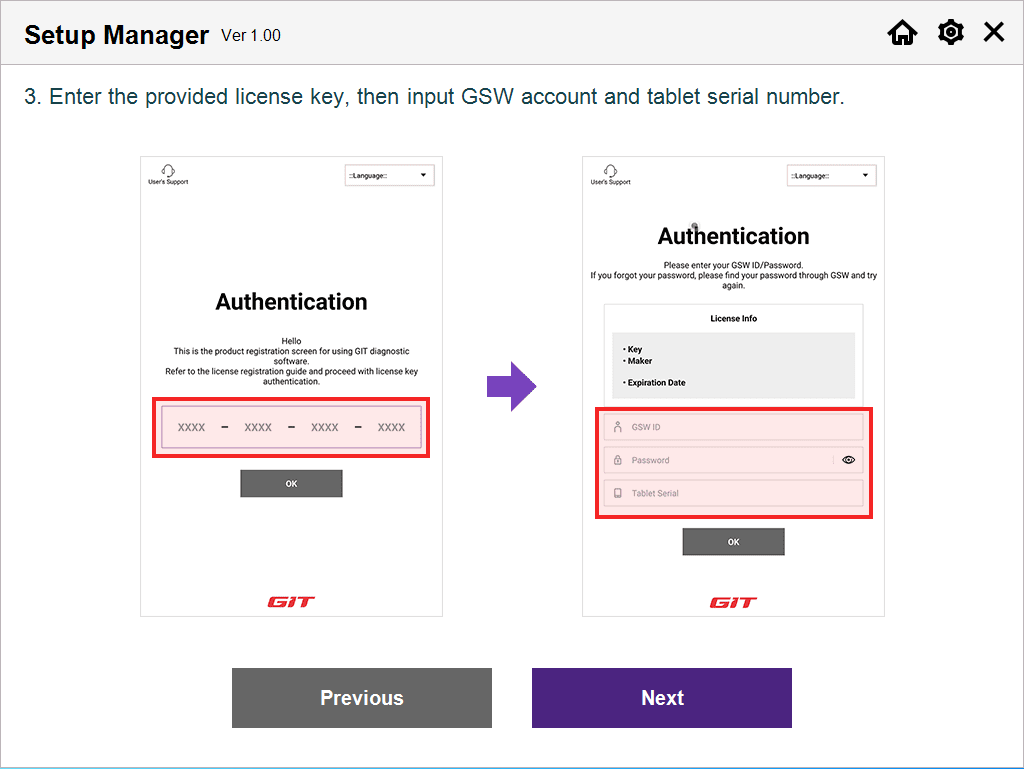

7. Enter the provided licence key.

The program may close after you enter the licence key. If this occurs, restart Setup Manager.

8. Setup Manager will automatically check its version.

If an Update is required, it will be performed automatically.

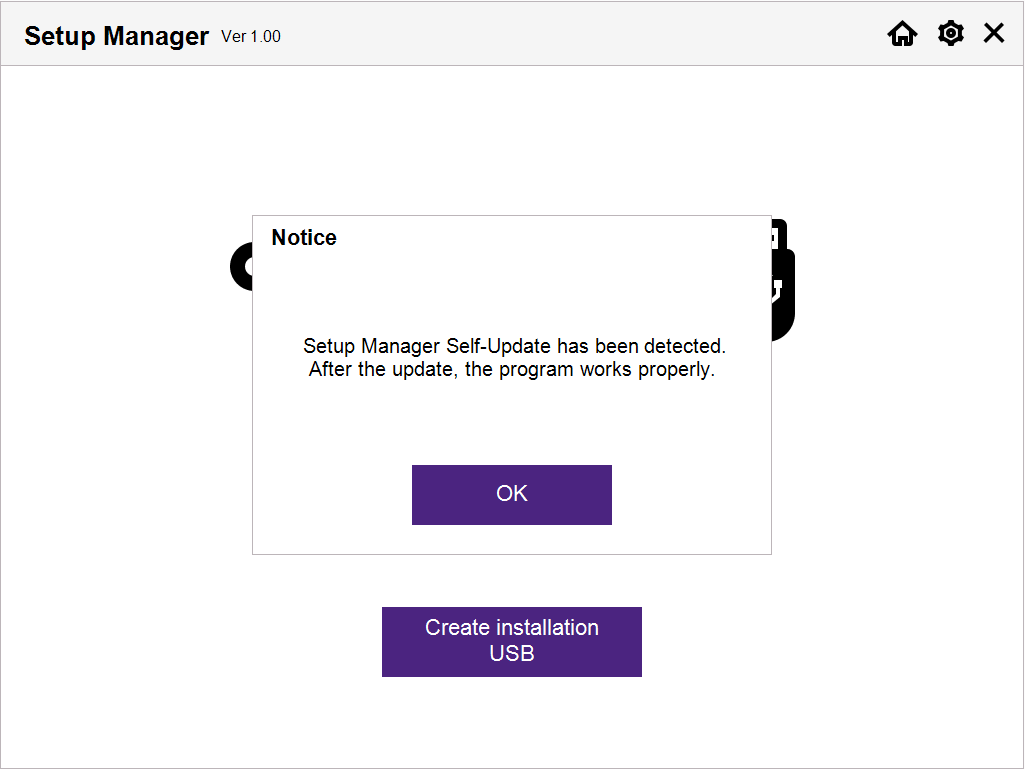

9. The self-Update will be performed, and the program will restart.

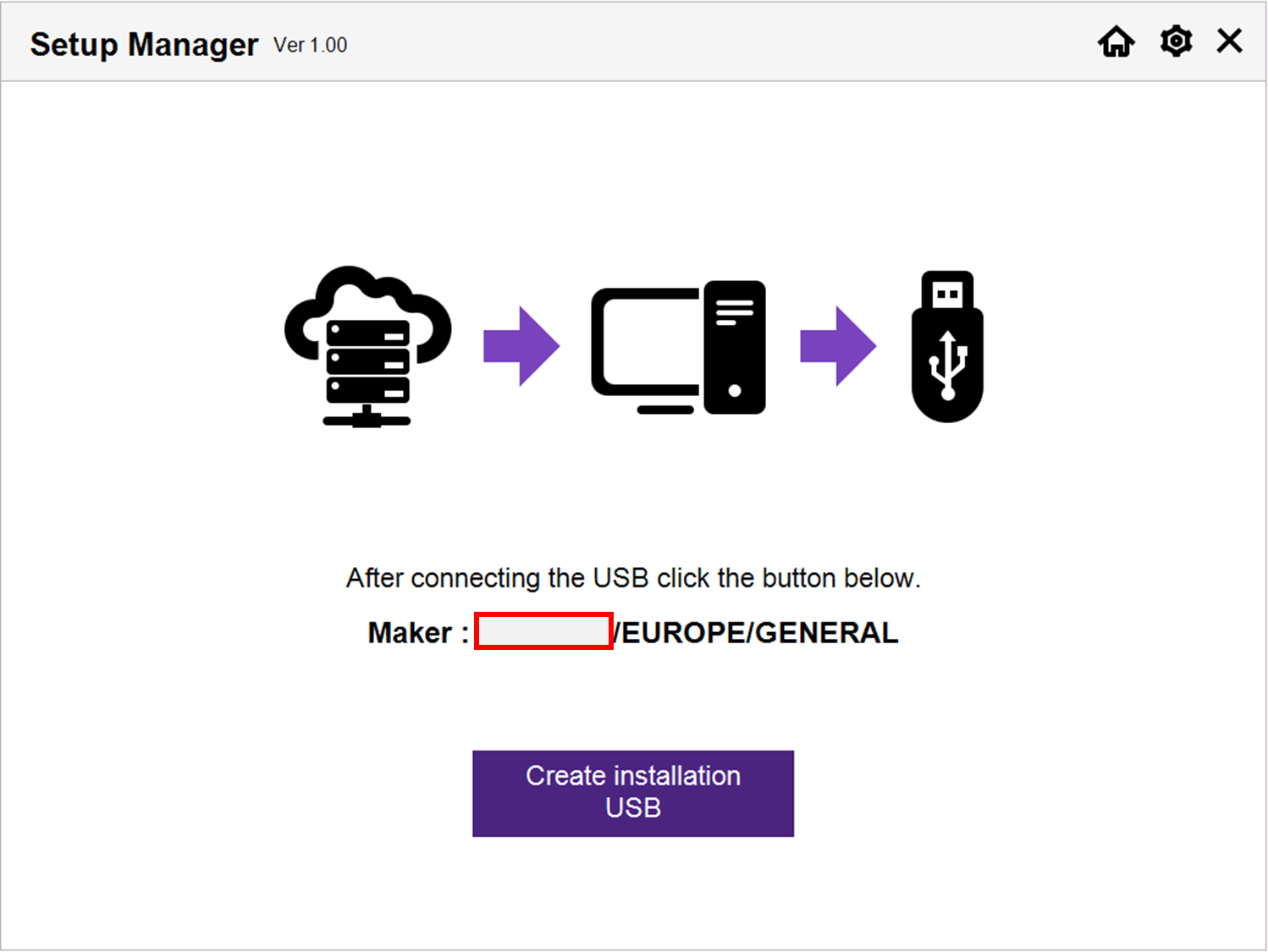

10. The content version associated with your licence key will be displayed.

Manufacturer: KIA/EUROPE/GENERAL

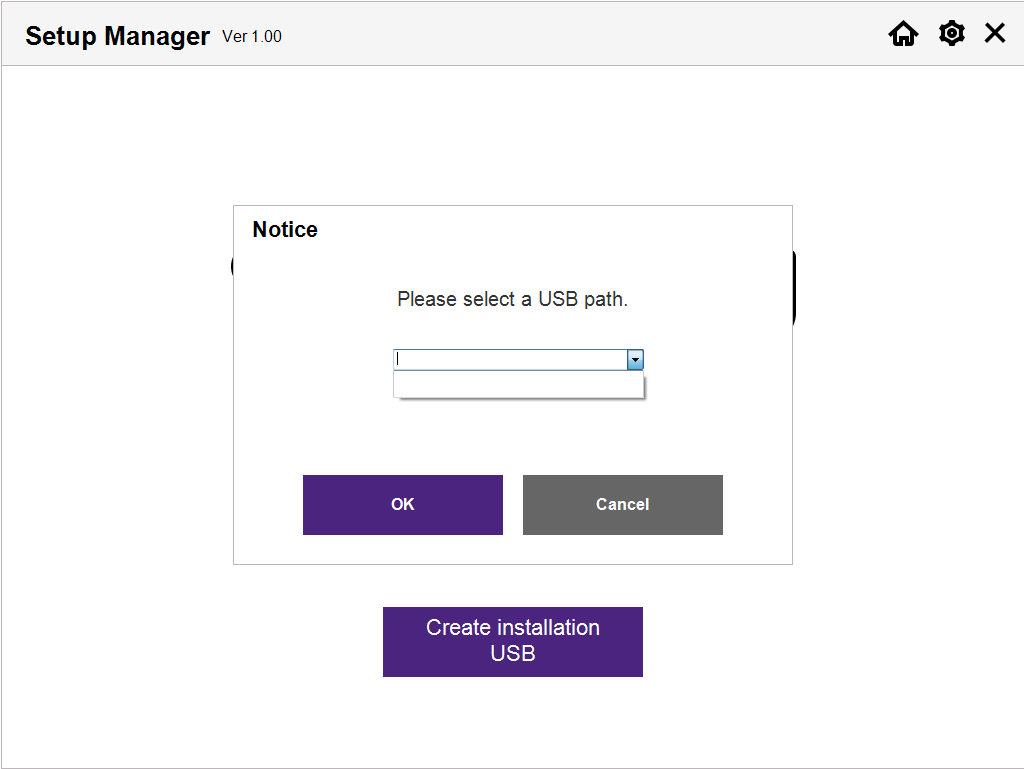

11. Select the USB flash drive path from the drop-down list.

Note that the USB flash drive must be Empty.

If it is not Empty, delete all data from the USB flash drive or format it.

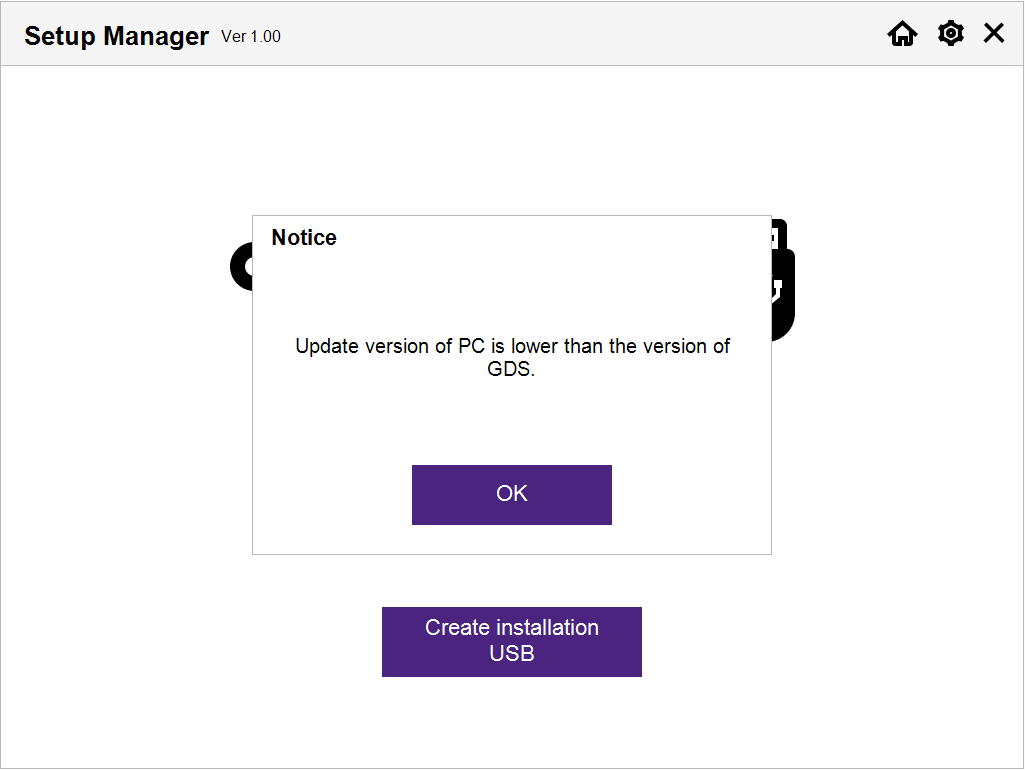

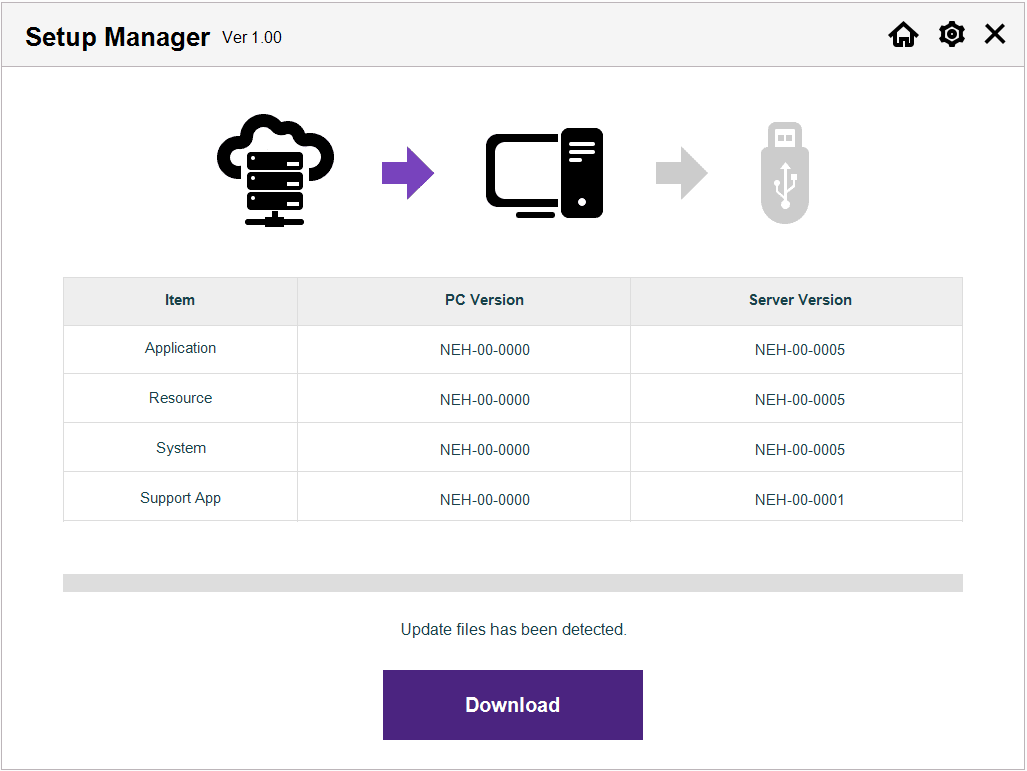

12. If the content version is earlier than the Current version, it will be updated.

13. Select the 'Download' button to Update the content.

The download time will vary depending on the network environment.

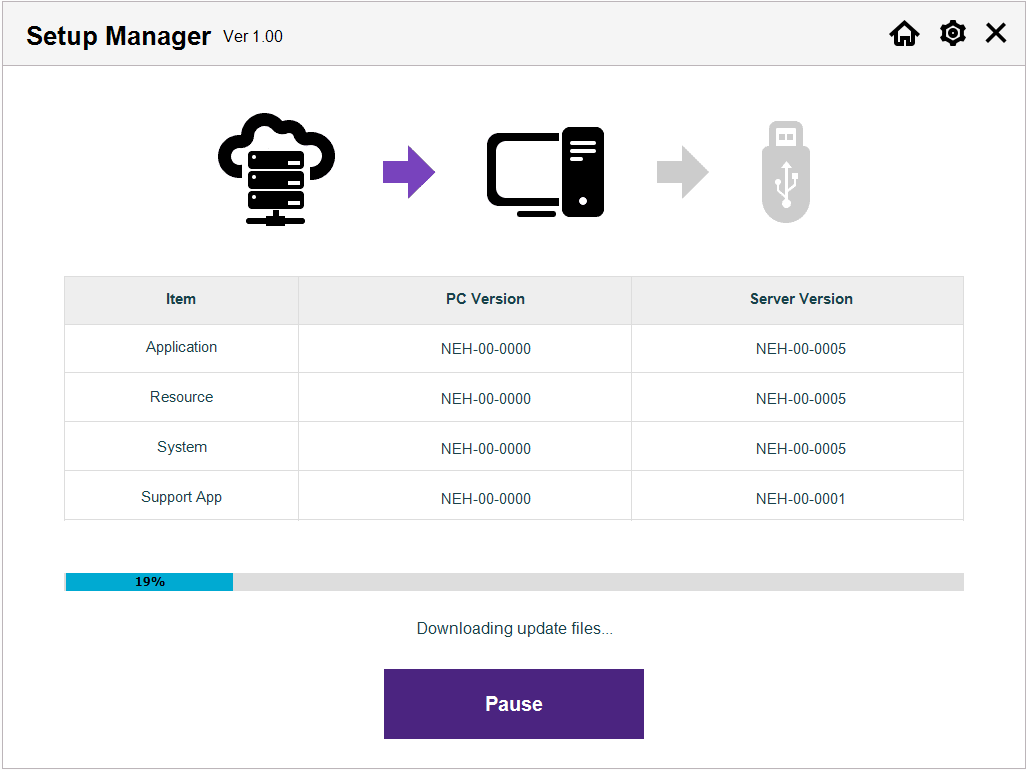

14. The Update files will be downloaded.

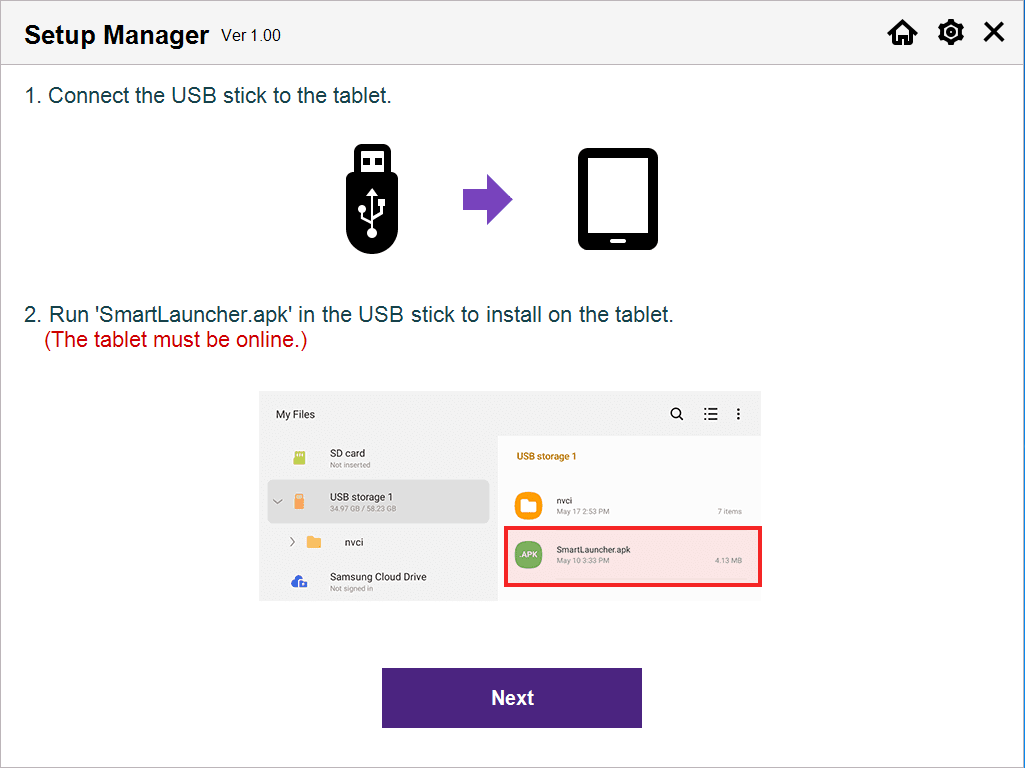

15. When USB setup is complete, you are Ready to install KDS 2.0.

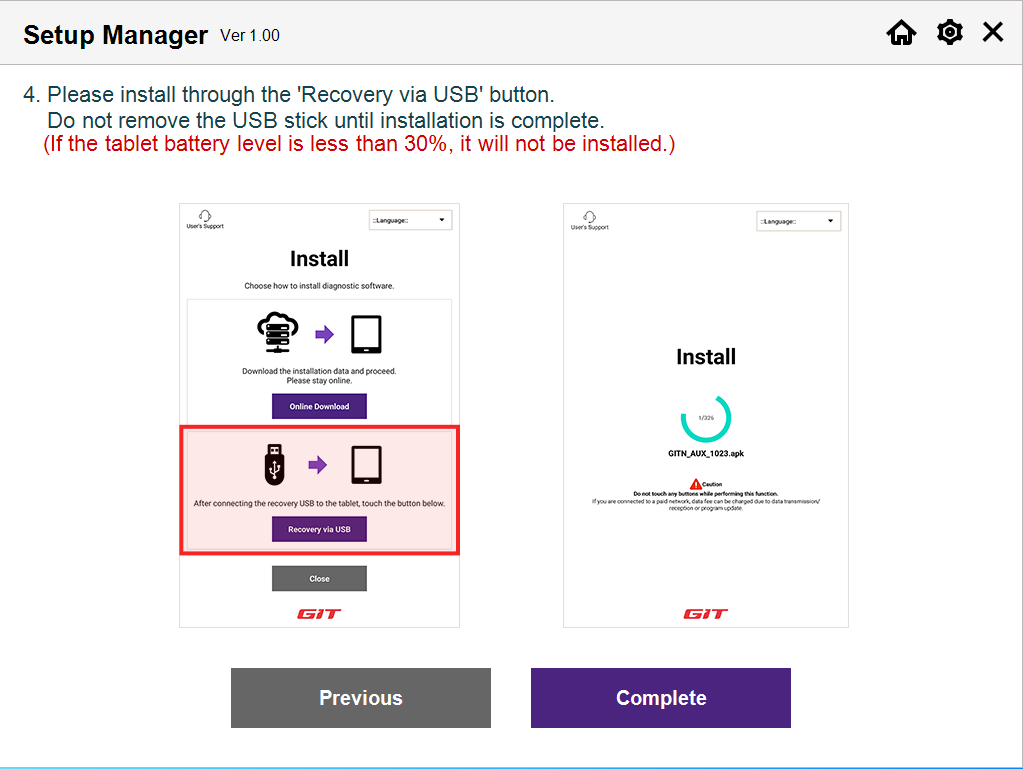

From this point, use 'Smart Launcher' on the tablet.

Follow the installation instructions shown in the images.

16. After the installation is complete, KDS 2.0 is Ready for use.

End.
