- When attempting to use Special Inspection, engine data is not displayed on the function screen, preventing the inspection from proceeding (may occur on HEV models).
Noise measurement on HEV models requires forced engine speed control. Therefore, the ECU must be upgraded. Check whether the ECU has been upgraded. Because engine speed is controlled automatically, do not press the accelerator pedal. Verify that the engine speed increases without pressing the pedal.
- A message requests vehicle information (Mileage and RO number) and the VIN, even though they have already been entered.
The VIN displayed on the screen is automatically populated based on the selected Vehicle Model. However, to start AUTO VIN, select the 'Verify' button on the right. If AUTO VIN authentication fails after selecting 'Verify', the VIN may not be registered in the vehicle. In this case, activate AUTO VIN by manually entering the VIN using the VIN Write function in S/W Management.
- The message “Note: There are no events for this vehicle” is displayed.
This message is displayed when the Vehicle Model is not supported. Verify that the current vehicle information is correct.
- A cable connection error pop-up may appear. #noiseless
Possible causes include:
- A malfunctioning cable
- A defective USB Type-C adapter
- A damaged USB Type-C port (or AUX port) on the tablet
If a connection issue occurs, ensure that the cable is fully and securely connected. Select the appropriate adapter for the tablet as follows:
- For devices equipped with both USB Type-C and AUX ports: Connect the cable to the AUX port.

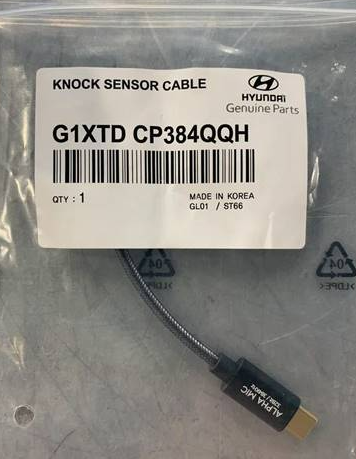

For models equipped only with a USB Type-C port: Use the GIT ALPHA MIC adapter (Model Name: ALT384), or purchase the KNOCK SENSOR CABLE ( G1XTD CP384QQH ).
※ The Part Number and product name may have changed. Contact your regional distributor or NSC for confirmation.
- For the Tab S5e model: Use the dedicated adapter supplied when the S5e tablet was purchased (Model Name: Samsung GH96-12511).
