How to Check Vehicle Specification Information (Part Number, H/W, S/W) in Kia KDS 2.0

※ Images and menu names may vary depending on the region and manufacturer.

How to Check Vehicle Specification Information

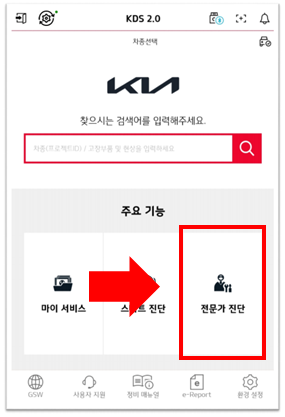

1. Tap [Expert Diagnosis].

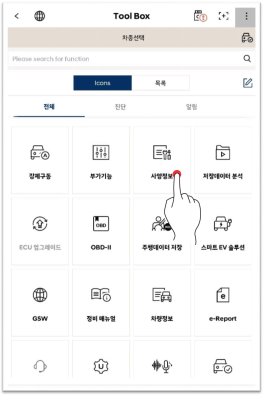

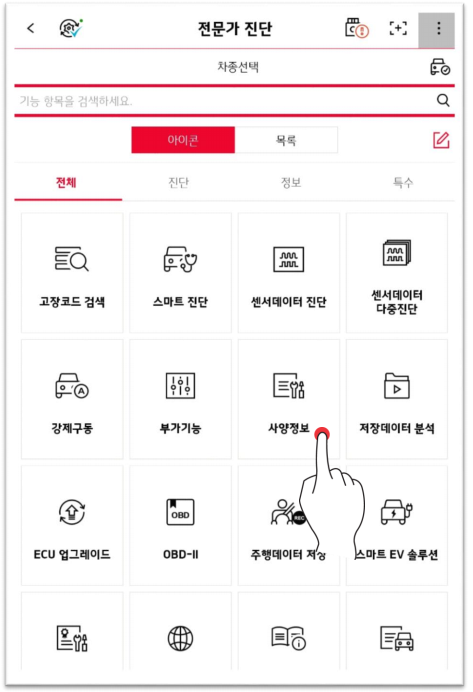

2. Tap [Specification Information].

3. When you enter this function, KDS 2.0 retrieves the specification information for the selected control units.

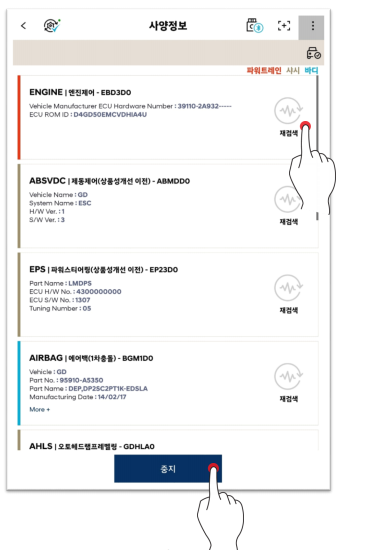

* Retry/Stop

To stop the search, tap the [Stop] button at the bottom. To search a control unit again, tap the [Retry]
button to the right of the control unit.

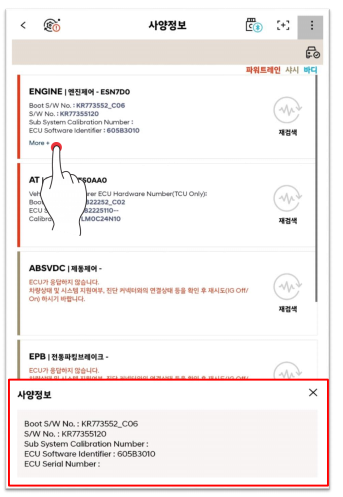

4. Tap the [More+] button at the bottom of the selected system to view additional specification information.
