ECI Connection Guide (Including Ethernet Static IP Configuration)

Oscar Eom

02 September 2026 13:06 Updated

Please refer to the ECI connection guide for ECU upgrades.

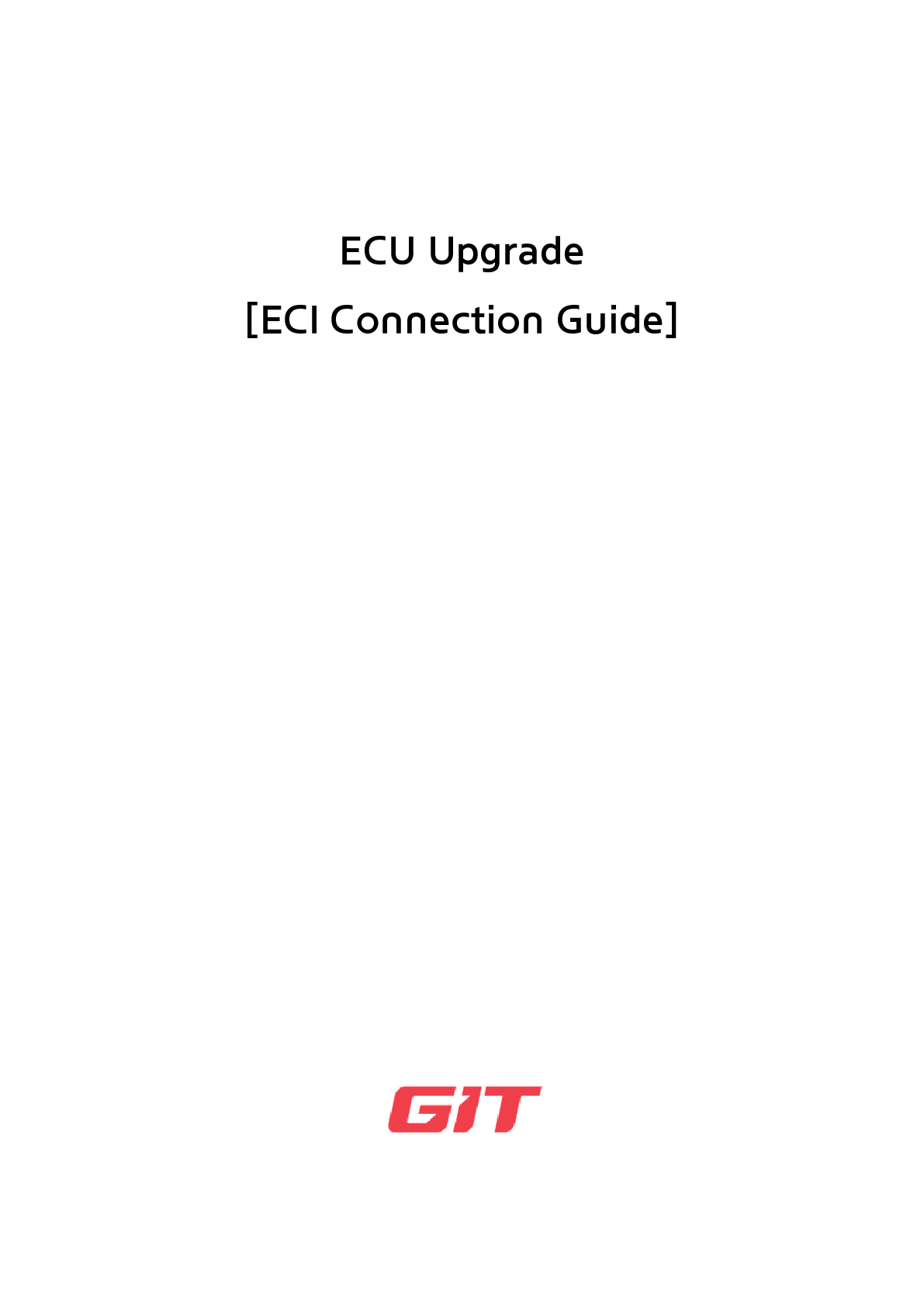

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_1.png

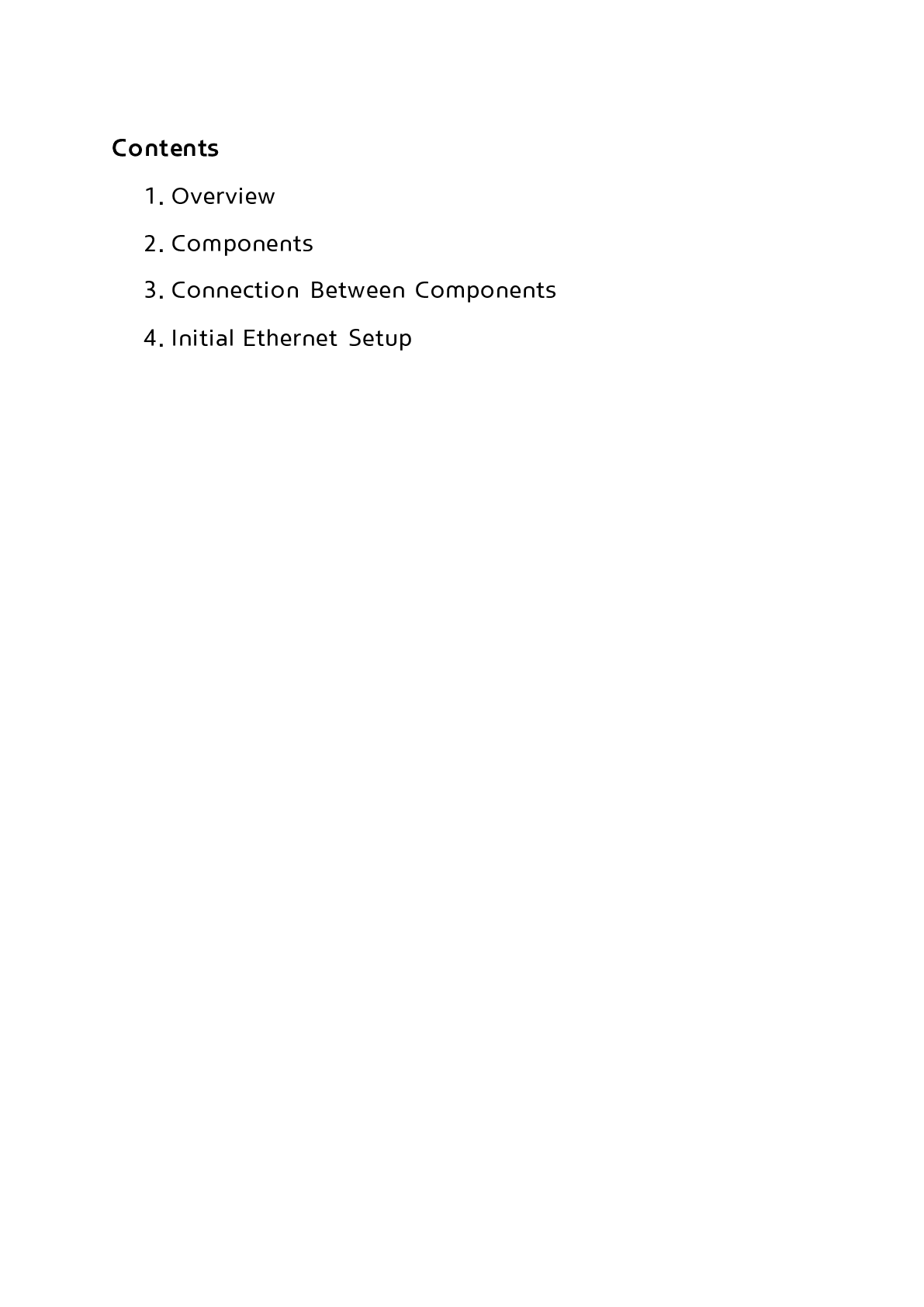

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_2.png

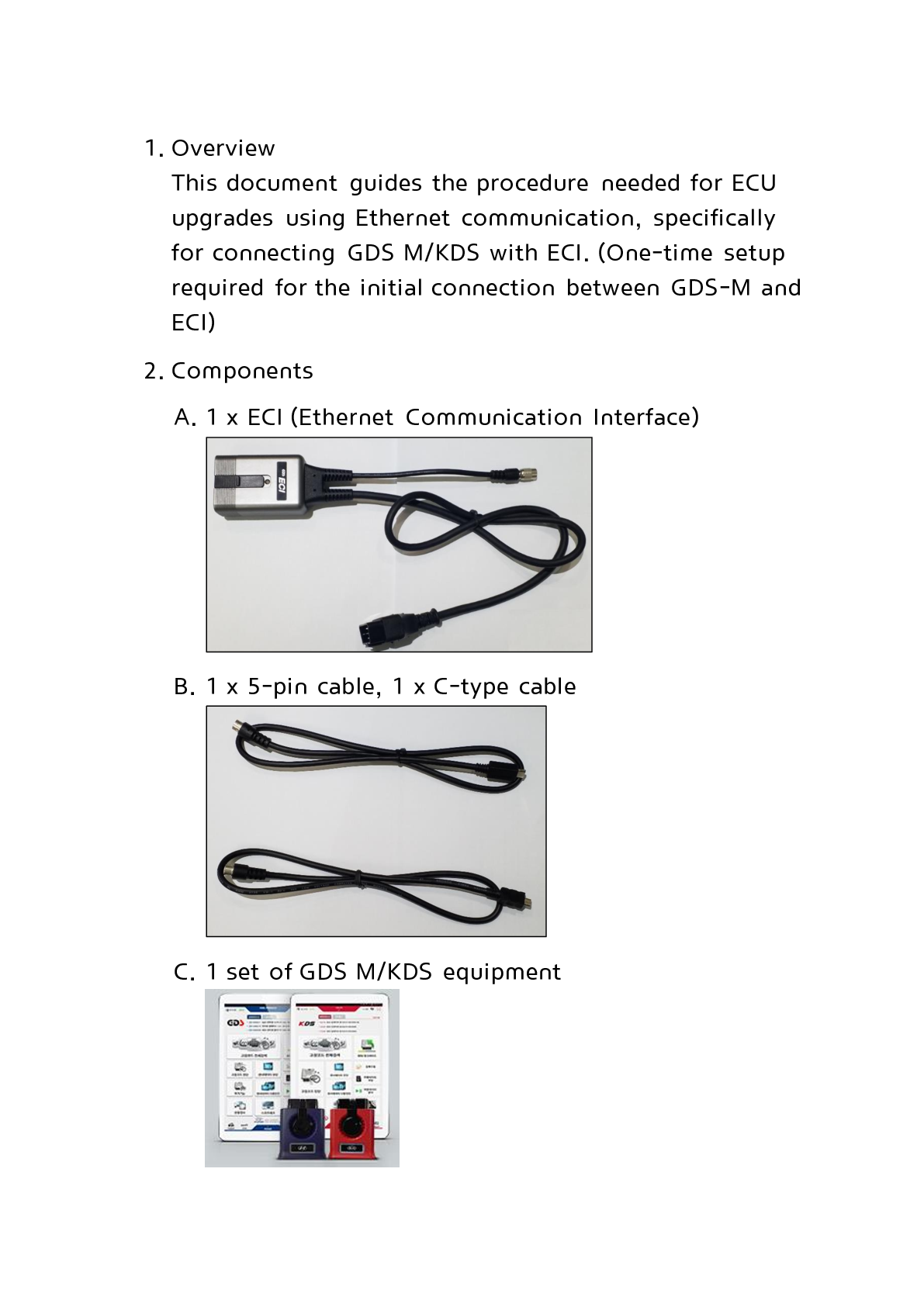

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_3.png

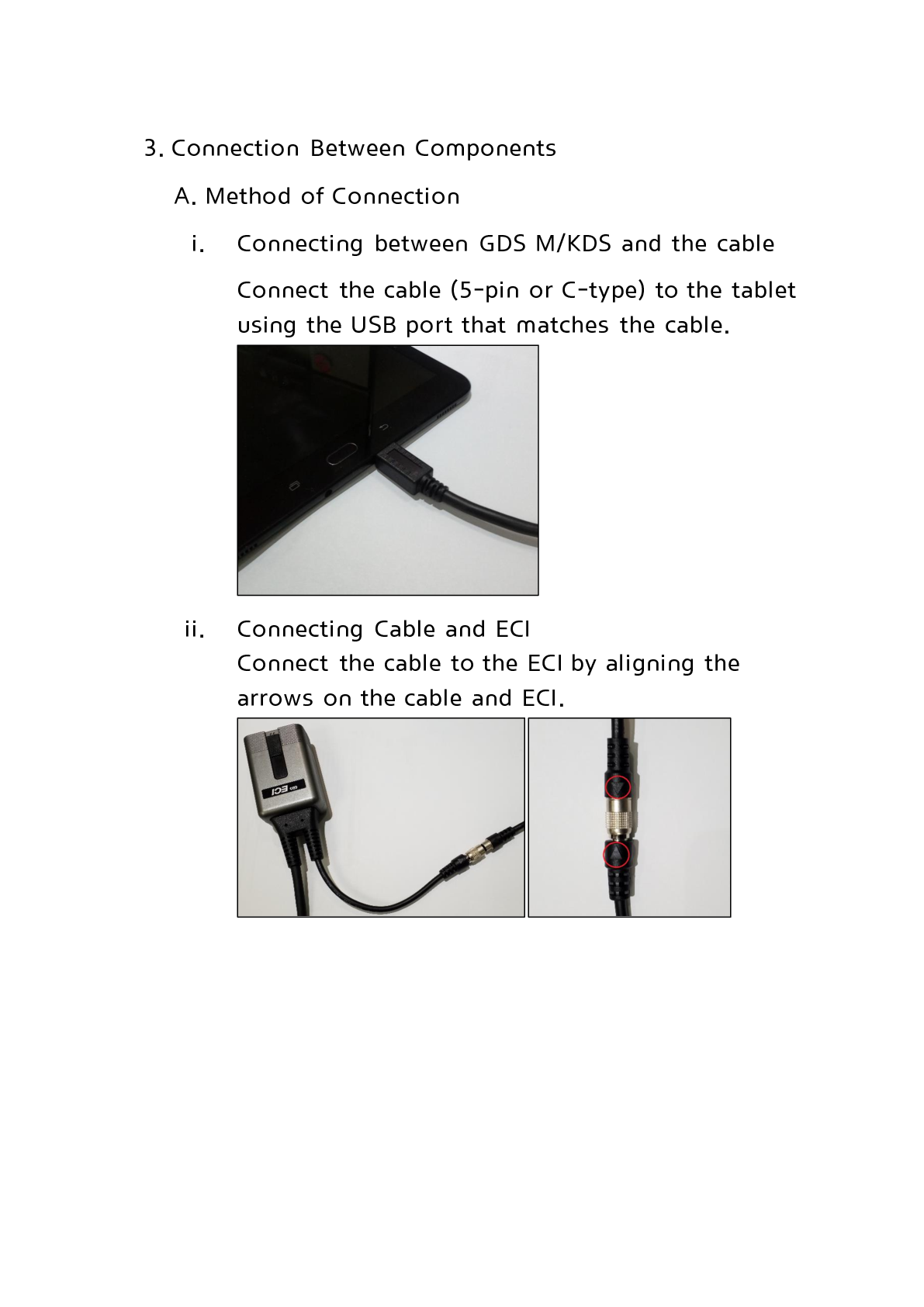

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_4.png

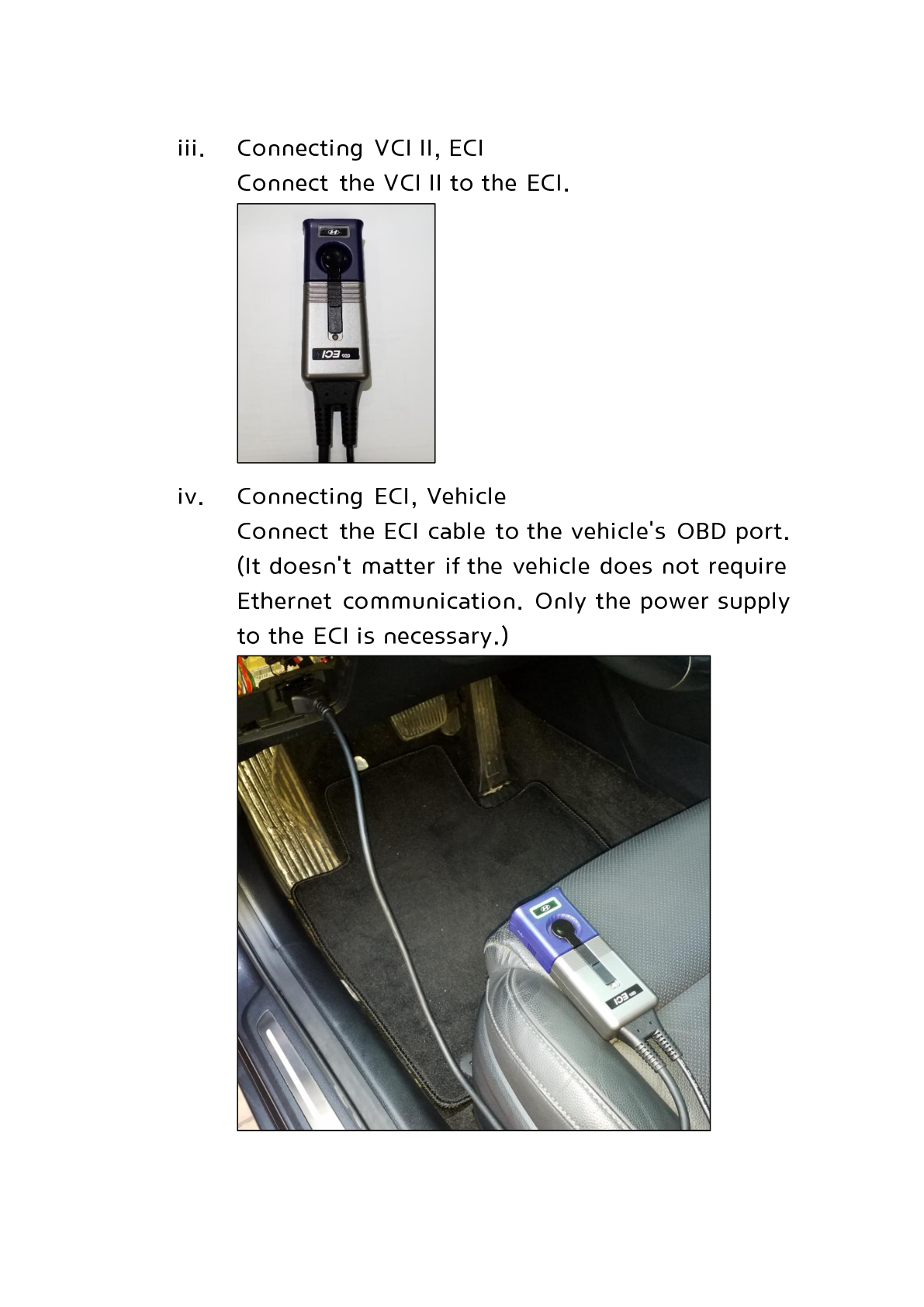

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_5.png

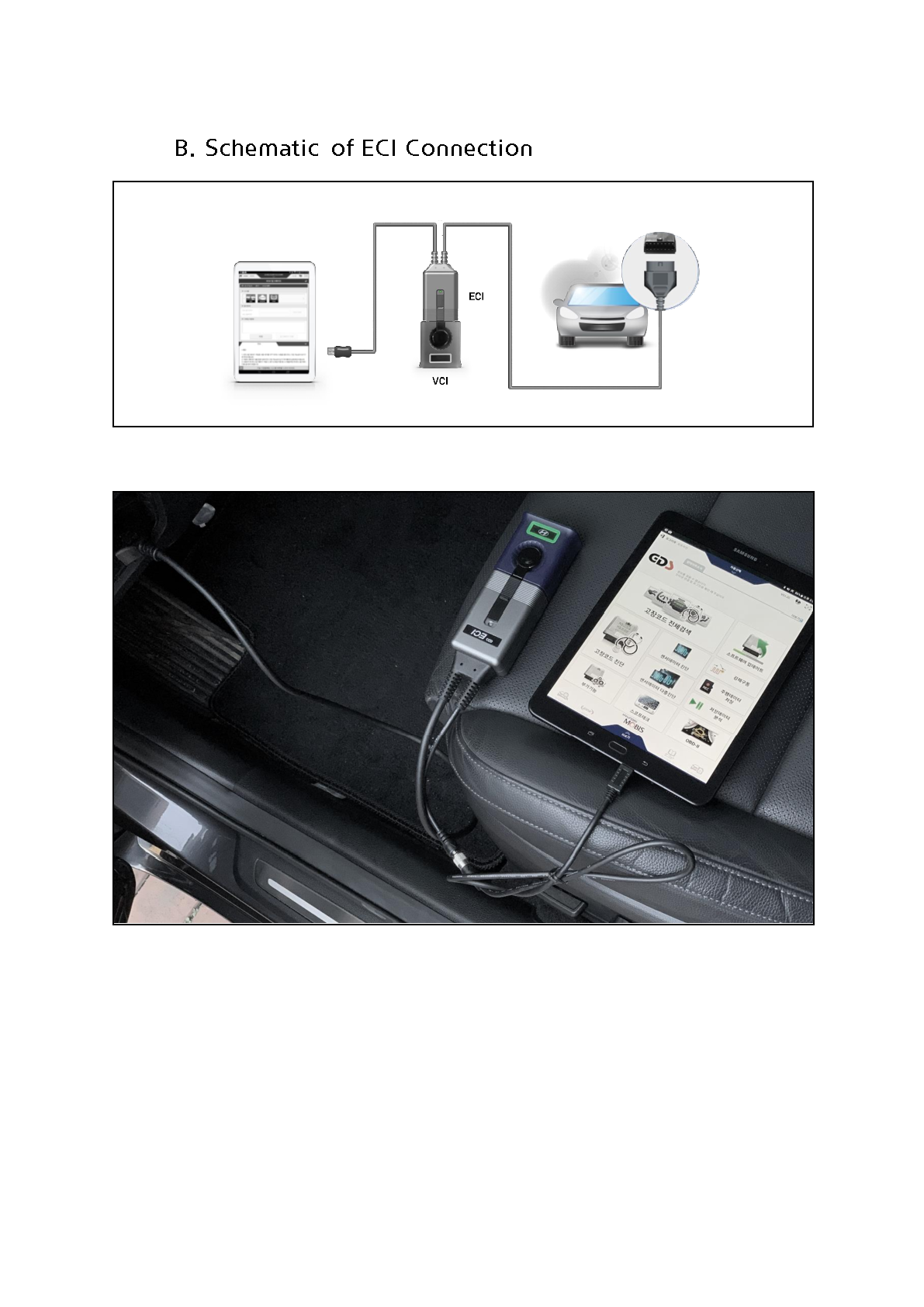

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_6.png

4. Configure a static IP address on the tablet PC for Ethernet communication as shown in the following video.
