1) Symptom
- In BDC-TPMS Sensor Data, the pressure values for [Front/Left]/[Front/Right]/[Rear/Left]/[Rear/Right] are displayed, but the units are not displayed.
- Normally, a unit option is available when accessing Sensor Data, allowing the units to be changed. However, for this vehicle, the unit option itself is not displayed, so the units cannot be changed.
Explanation:
1. psi is displayed for the tire pressure unit item
- This value indicates the pressure unit calculated by the TPMS and is not an item configured in KDS 2.0.
2. Unable to change the pressure units for Front Left/Front Right/Rear Left/Rear Right
- TPMS Sensor Data is divided into a General Data group and an Event Data group.

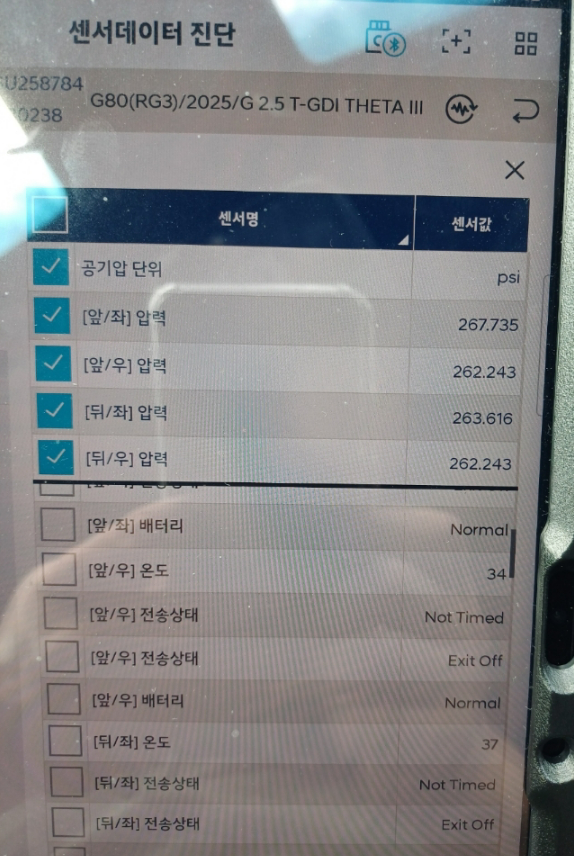

In the attached screen, the group is expanded. As a result, the unit option is not displayed and the units cannot be changed. (The cropped section on the left is the group selection screen.)
Collapse the group and proceed. The units can then be changed using the unit option.
It has been confirmed that there is no issue with KDS 2.0.
