1) Symptom
- In the BDC-TPMS sensor data, the pressure values for [Front/Left]/[Front/Right]/[Rear/Left]/[Rear/Right] are displayed, but the units are not displayed.
- Normally, a unit option is available when entering the sensor data menu, allowing the units to be changed. For this vehicle, the unit option itself is not displayed, so the units cannot be changed.
Explanation:
1. The tyre pressure unit item displays psi
- This value indicates the pressure unit calculated by the TPMS and is not a setting configured in the diagnostic tool.
2. Unable to change the pressure units for Front Left/Front Right/Rear Left/Rear Right
- TPMS sensor data is divided into a General Data group and an Event Data group.

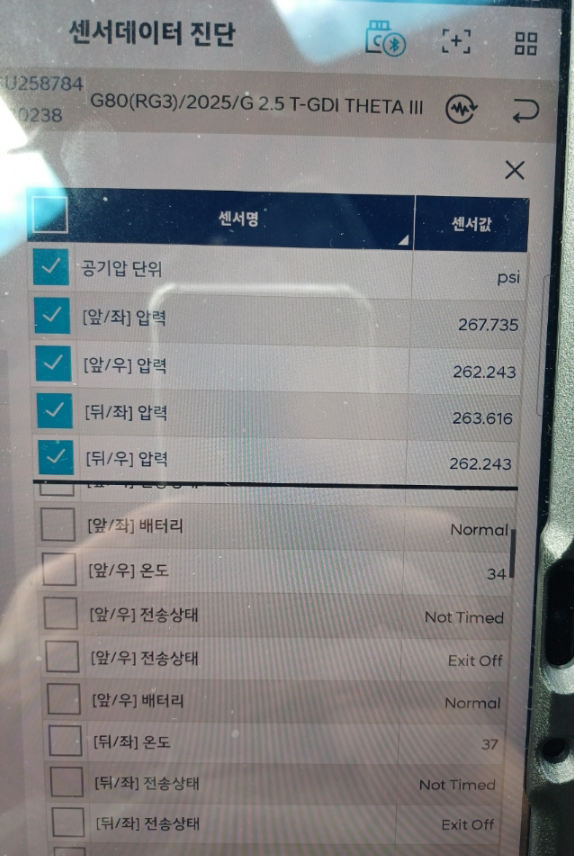

In the attached screen, the group is expanded, so the units are not displayed and cannot be changed. (The partially cut-off area on the left is the group selection screen.)
Collapse the group to display the unit option and change the units as required.
It has been confirmed that there is no issue with the diagnostic tool.
