[Before You Begin]

1. This version of Setup Manager is intended only for the Europe-General Region.

If you are in the Americas or another Region, please disregard this article.

2. This guide is intended for customers who need to install KDS 2.0 using a USB flash drive due to limited internet access.

If you want to install KDS 2.0 online, refer to the following guides.

To download the Setup Manager Guide in your language, refer to the following instructions.

1. Connect the USB flash drive containing the Setup Manager installer.

2. Locate the 'GDSN_SetupManager.exe' file on the USB flash drive.

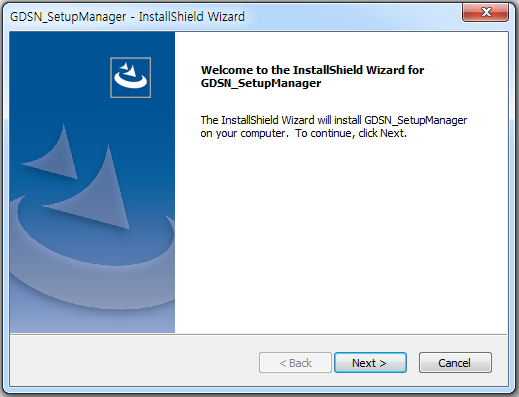

3. Run 'GDSN_SetupManager.exe' to install Setup Manager, and then select the 'Next' button.

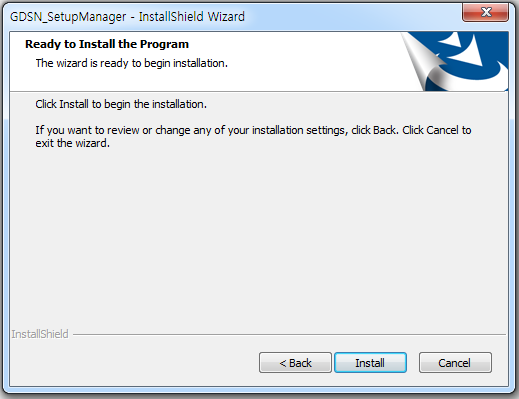

4. Select the 'Install' button. The installation may take a few Minutes.

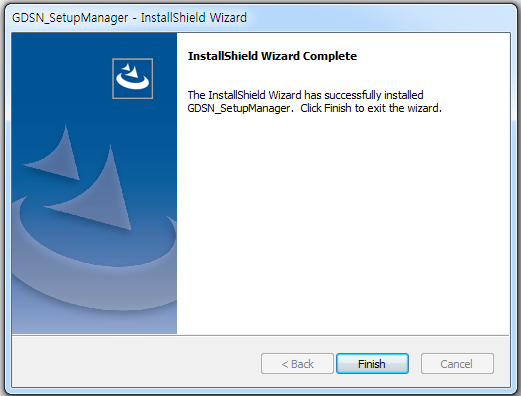

5. Select the 'Finish' button to complete the installation.

6. Locate the 'Setup Manager' shortcut on the desktop, and then run 'Setup Manager'.

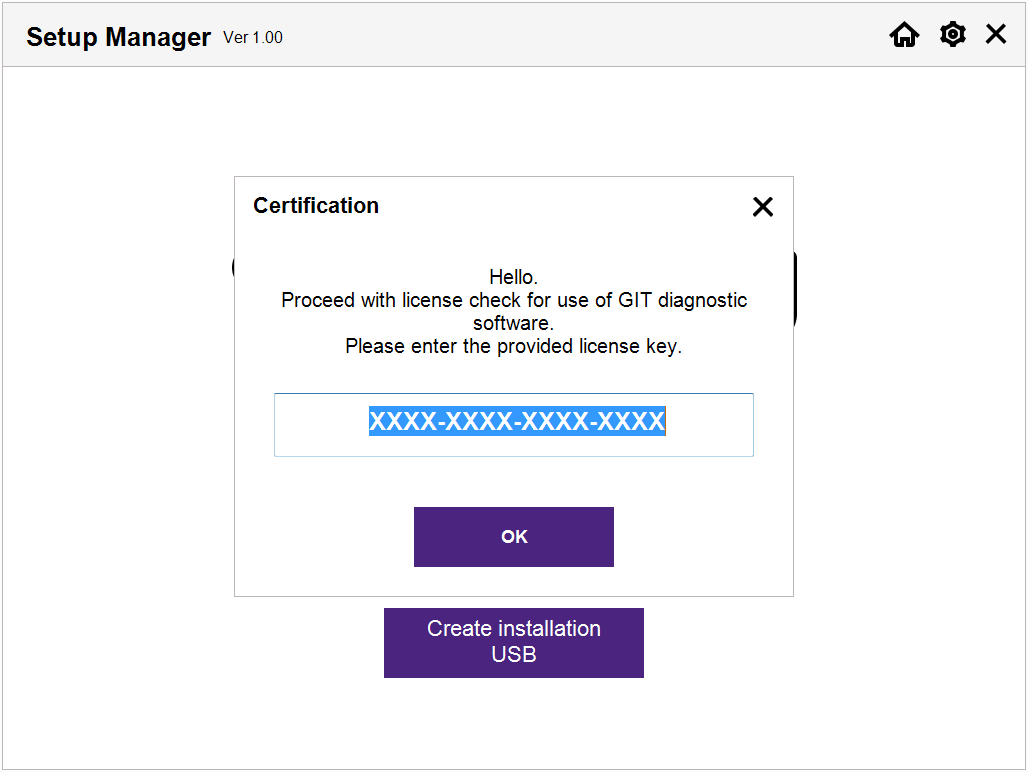

7. Enter the license key provided to you.

The program may close after you enter the license key. If this occurs, restart Setup Manager.

8. Setup Manager will automatically check its current version.

If an Update is required, it will be performed automatically.

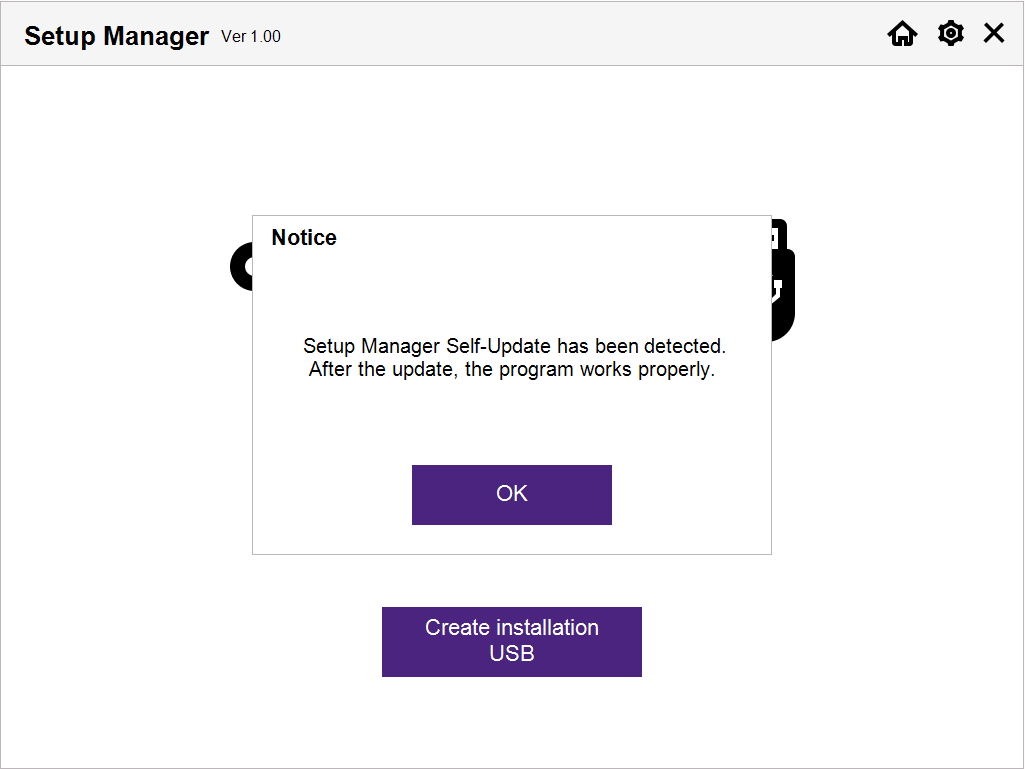

9. The Self Update process will run, and the program will restart automatically.

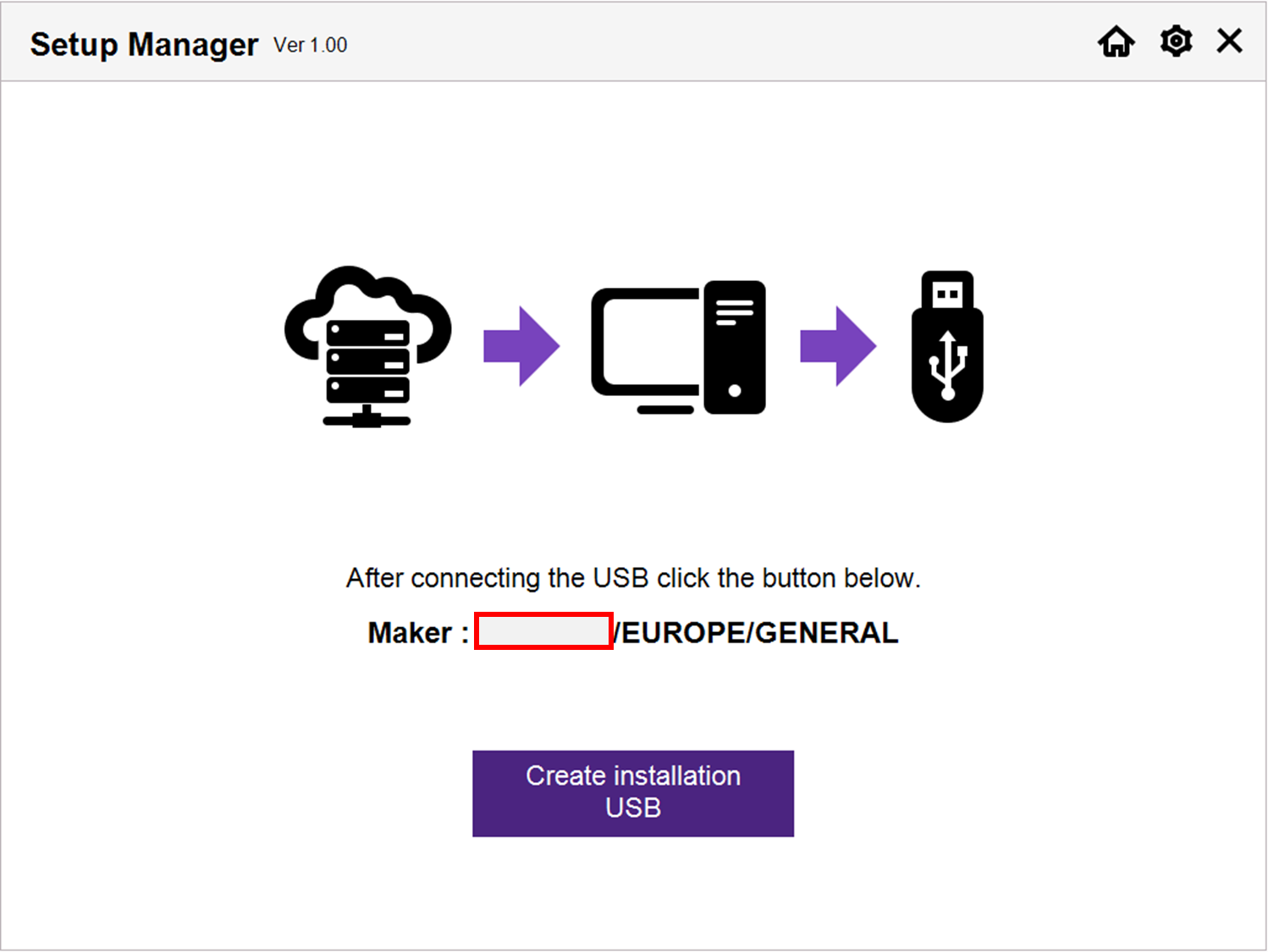

10. Setup Manager will display the content version associated with your license key.

Manufacturer: KIA / EUROPE / GENERAL

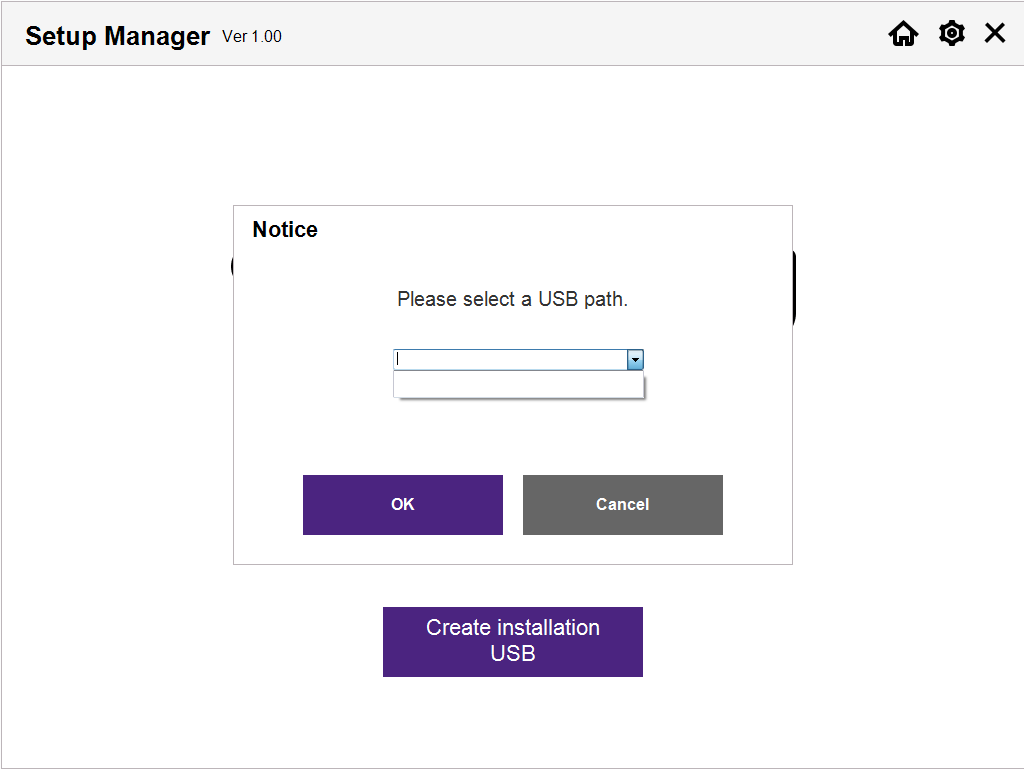

11. Select the USB drive path from the drop-down list.

Note that the USB storage device must be Empty.

If it is not Empty, delete all data from the USB device or format it before continuing.

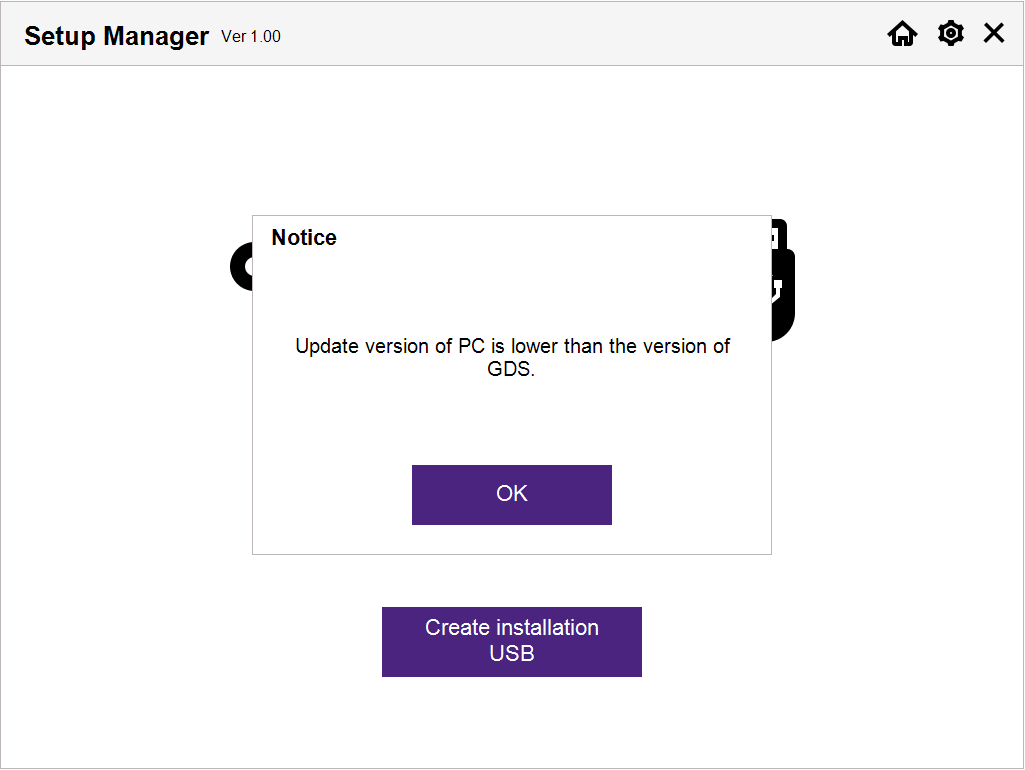

12. If the installed content version is older than the latest available version, it will be updated.

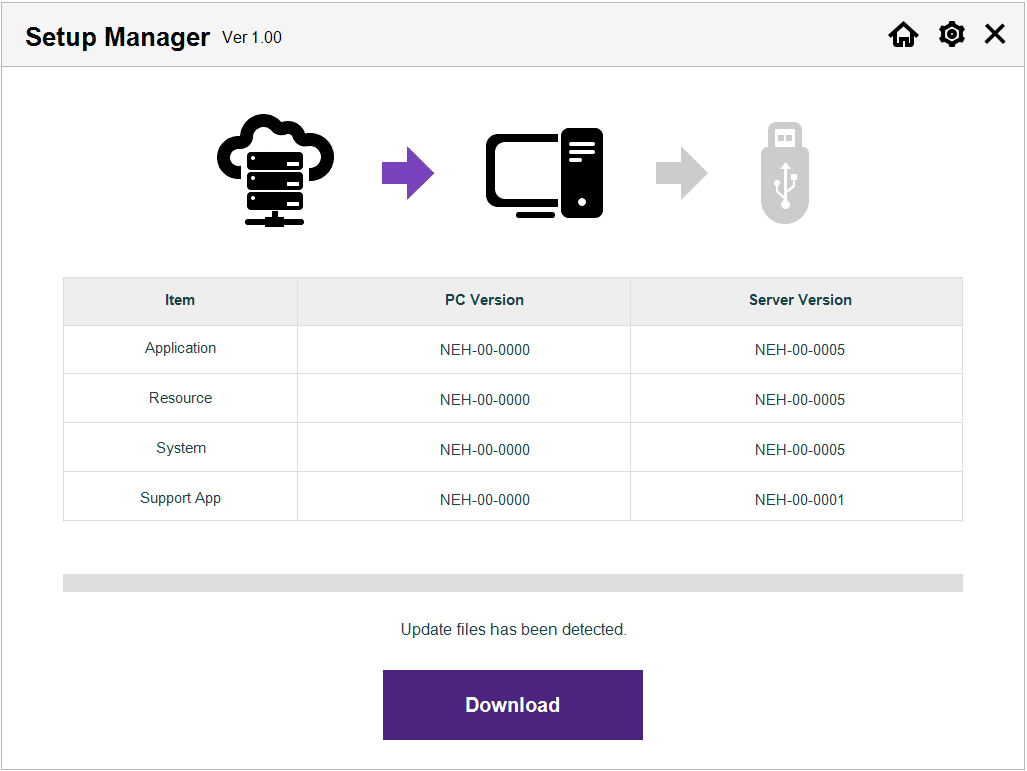

13. Select the 'Download' button to update the content.

The download time will vary depending on network conditions.

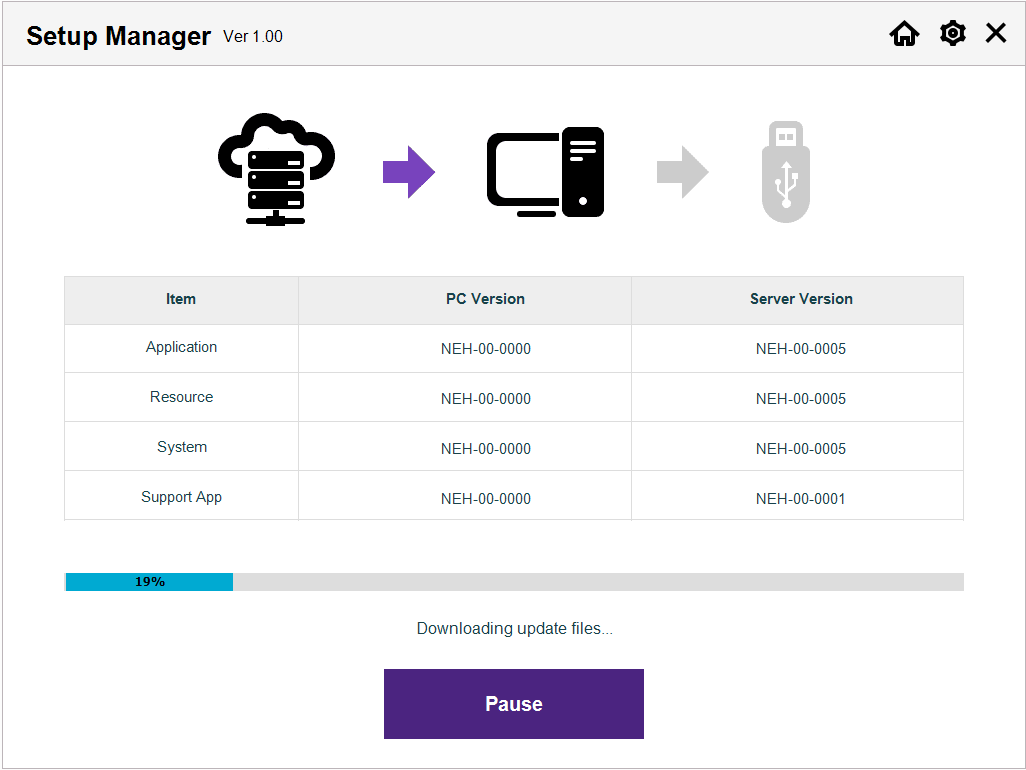

14. The Update files will be downloaded.

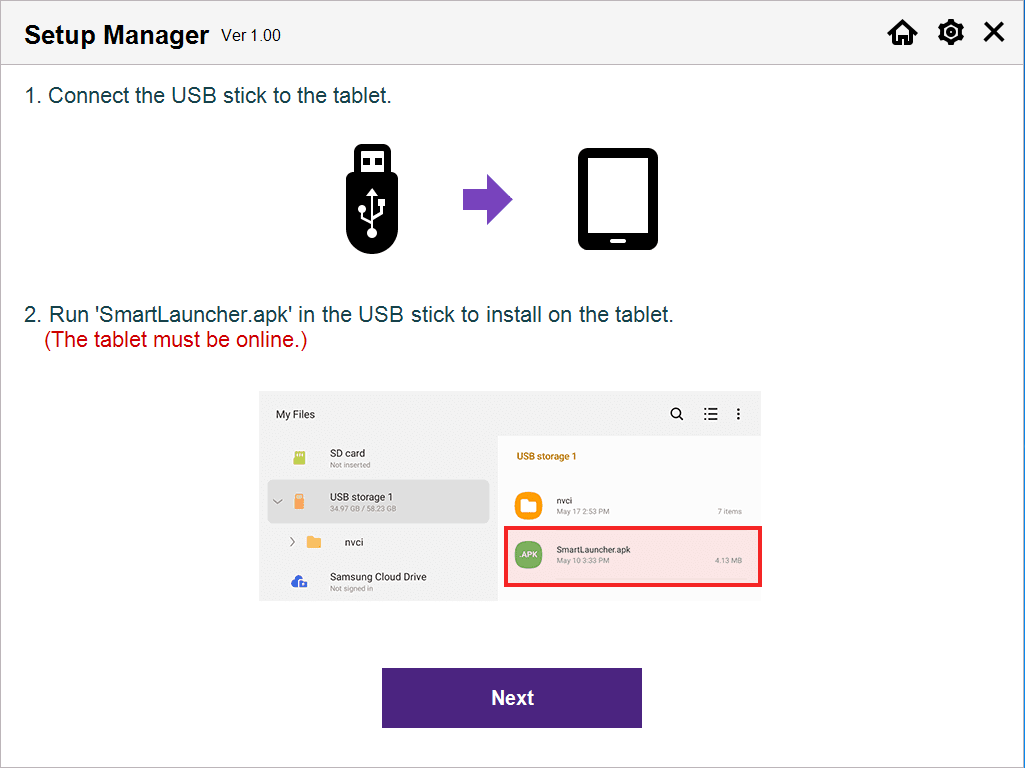

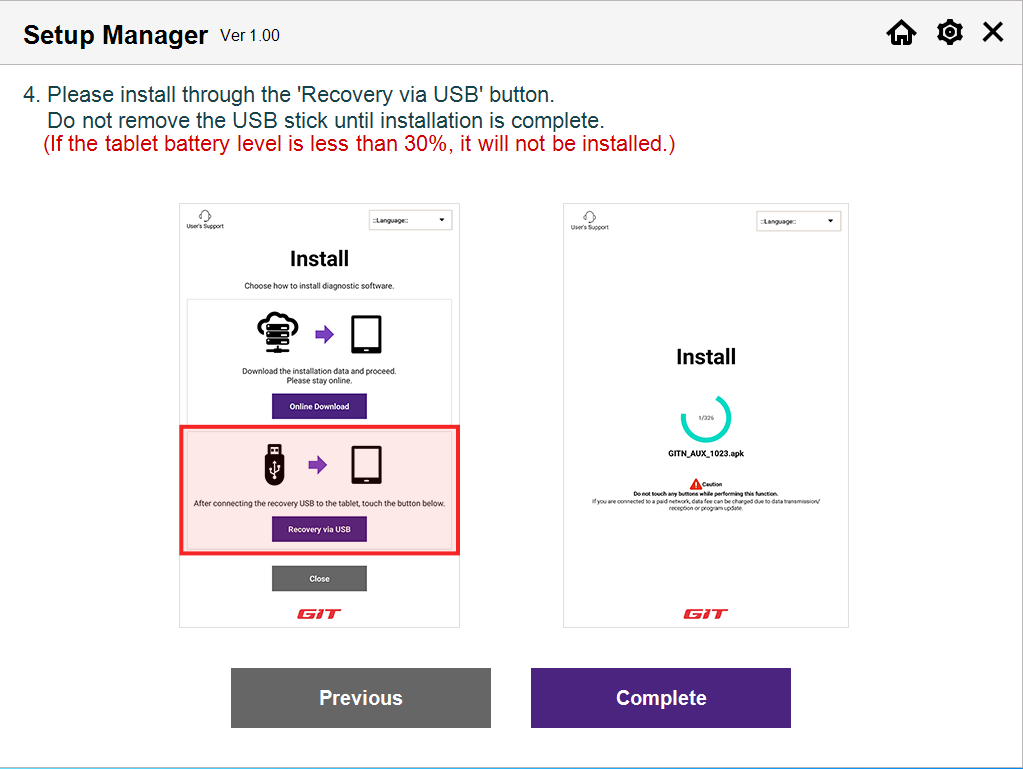

15. After the USB flash drive has been prepared, you are Ready to install KDS 2.0.

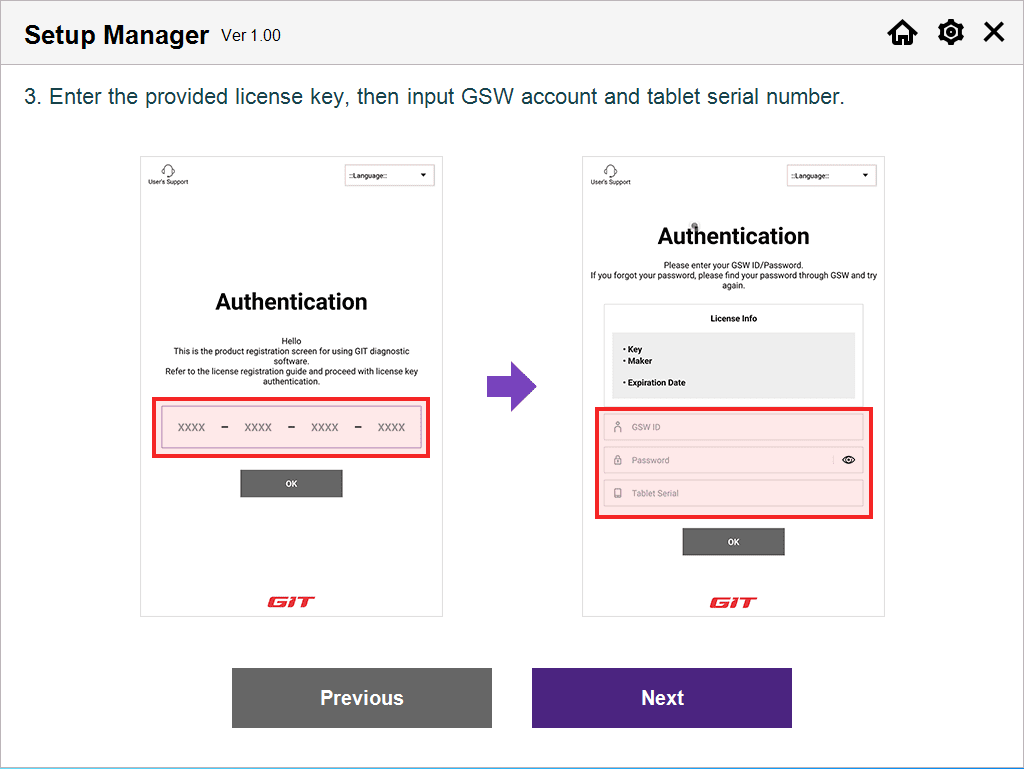

From this point forward, use 'Smart Launcher' on the tablet.

Follow the installation instructions shown in the images.

16. After completing the installation, KDS 2.0 is Ready for use.

End.
