ACU Variant Coding Cannot Be Performed

ACU Variant Coding was performed, but the controller appears not to have completed the process successfully.

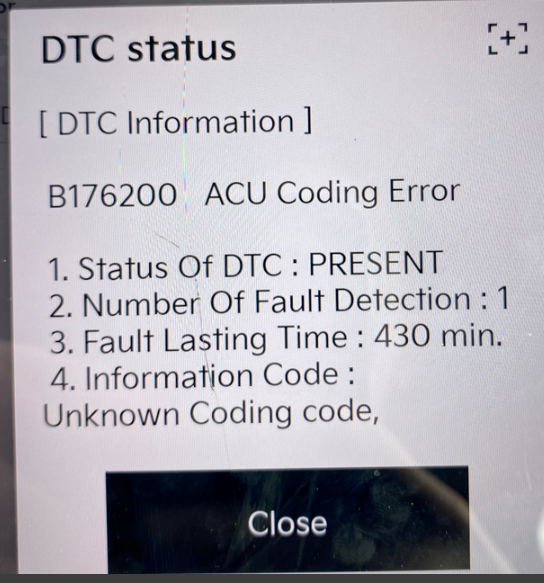

To identify the specific cause of the coding failure, check the C176200 DTC Status information.

If the Information Code is displayed as Unknown Coding code and the Part Number is 95910-CV350, perform Variant Coding using CV90. This is the same issue described in https://gims.gitauto.com:8080/jira/browse/GDSN-14897.

If a different Information Code is displayed, inspect the corresponding component before attempting Variant Coding again. Please provide the applicable Information Code for further guidance.
