No issues were found with the connectors for the airbag, belt tensioner, FIS, On/Off Switch, or ACU; however, DTC B1762 00 is set.

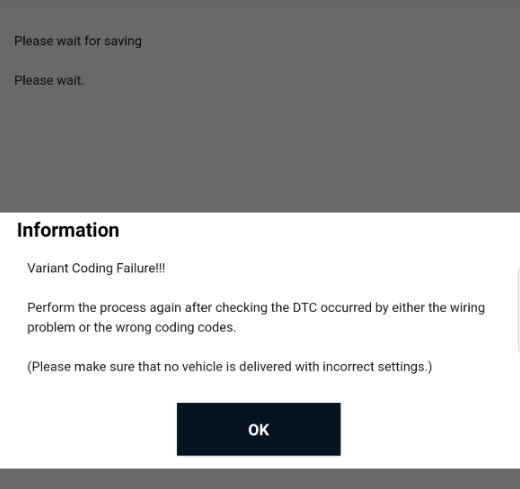

As shown below, for the CV model, collision sensor supply issues may cause the Variant Coding values to differ depending on the ACU part number. As a result, automatic coding may fail while KDS 2.0 is connected to the Internet. For the affected vehicle, disconnect KDS 2.0 from the Internet and manually set the Variant Coding value to *CV83*.
